How to plot customly-shaped set of 3D points each connected to its neighbors?

Question

Consider the following code:

ListPointPlot3D[
 Flatten[#, 1] &@
  Table[{x, y, 1}, {x, 0, 5, 5/60}, {y, Sin[x], Cos[x] + 3, (
    Cos[x] + 3 - Sin[x])/60}], PlotRange -> All]

If I change ListPointPlot3D to ListPlot3D, I get the following:

Apparently, ListPlot3D connects the points not in an expected way.

How to plot the set so that the neighboring points were connected with each other, not the far ones?

You want a plot that looks like this RegionPlot3D[ Sin[x] < y < Cos[x] + 3 && z == 1, {x, 0, 5}, {y, -1, 4}, {z, 0, 2}]? — N.J.Evans, Sep 27 '16 at 20:18
assuming this is a toy example, for the real problem do you know the underlying functional form for the region? — george2079, Sep 27 '16 at 20:32
@george2079 in the real problem the points come from other sources, I don't know the region in general. — Ruslan, Sep 27 '16 at 20:41
its actually quite a tough problem to find the non-convex boundary of a set of points. (If they are on a regular grid as in example that helps) — george2079, Sep 27 '16 at 20:47
Possible duplicate: http://mathematica.stackexchange.com/questions/88752/delaunaymesh-in-a-specified-closed-region-creating-a-concave-hull-from-a-set-o — Michael E2, Sep 28 '16 at 03:00

Julien Kluge · Answer 1 · 2016-09-27T20:38:50.040

4

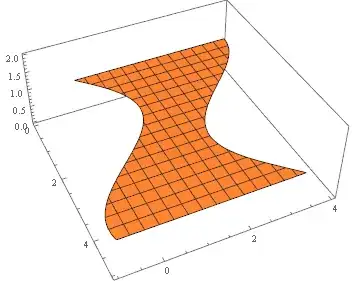

You can restrict your PlotRegion in Plot3D

Plot3D[1,{x,0,5},{y,-1,4},RegionFunction->(Sin[#1]<#2<Cos[#1]+3&)]

For more complicated Regions you should use RegionPlot3D. Here is the restriction for all 3 dimensions (which creates a beautiful figure if you ask me):

RegionPlot3D[(Sin[x]<y<Cos[x]+3)&&(Sin[y]<z<Cos[y]+3)&&(Sin[z]<x<Cos[z]+3),{x,-1,4},{y,-1,4},{z,-1,4},MaxRecursion->10,PlotPoints->100]

edited Sep 27 '16 at 20:38

answered Sep 27 '16 at 20:24

Julien Kluge

5,335
1
17
29

you can use the same RegionFunction with ListPlot3D as well – george2079 Sep 27 '16 at 20:37

score 4 · Accepted Answer · edited Apr 13 '17 at 12:55

If the points form a deformed rectangular grid, then you can use the method below; otherwise, the methods of the following question should work:

DelaunayMesh in a specified closed region - creating a concave hull from a set of points

For a tensor grid of points:

pts = N@Table[{x, y, Cos[x] Sin[y]},  (* varying height *)
    {x, 0, 5, 5/60},
    {y, Sin[x], Cos[x] + 3, (Cos[x] + 3 - Sin[x])/60}];

With[{p = Flatten[pts, 1]},
 Graphics3D[
  GraphicsComplex[
   p,
   {EdgeForm[], ColorData[97][2],
    Polygon[
     Flatten[#][[{1, 2, 4, 3}]] & /@ Flatten[Partition[
        Partition[Range@Length@p, Length@First@pts],
        {2, 2}, {1, 1}],
       1]
     ]}
   ]]]

Mathematica graphics

It works even better if the height is a constant 1.

score 2 · Answer 3 · edited Apr 13 '17 at 12:55

ListPlot3D accepts RegionFunction, so let's exploit this fact. The idea is to create a region.

data = Flatten[#, 1] &@
  Table[{x, y, 1}, {x, 0, 5, 5/60}, {y, Sin[x],
    Cos[x] + 3, (Cos[x] + 3 - Sin[x])/60}]

data2D = data[[All, 1 ;; 2]]

range = {{0, 5}, {-1, 4}}

First, Binarize the region

reg = Binarize@
  ListPlot[data2D, Axes -> False, AspectRatio -> 1,
   PlotStyle -> PointSize -> Large]

so that one can use the functions of bobthechemist and rhermans:

binaryImageToRegion[bimg_] :=
 With[{idata = ImageData[bimg], xmax = First@ImageDimensions[bimg],
   ymax = Last@ImageDimensions[bimg]},
  BoundaryDiscretizeGraphics@
   First@RegionPlot[
     idata[[IntegerPart@(ymax - y), IntegerPart@x]] == 1, {x, 1,
      xmax}, {y, 1, ymax}]]

reg1 = binaryImageToRegion[ColorNegate@reg]

{100, 100} \[Element] reg1
{200, 200} \[Element] reg1

False

True

and

imgregion[im_] :=
 Polygon[Part[#, Last@FindShortestTour[#]] &@
   PixelValuePositions[
    MorphologicalPerimeter[
     Erosion[FillingTransform@ColorNegate@Binarize[im, 0.91], 2],
     CornerNeighbors -> False], 1]]

reg2 = BoundaryDiscretizeRegion@imgregion[reg];

plot = RegionPlot@reg2

{100, 100} \[Element] reg2
{200, 200} \[Element] reg2

False

True

I'll use reg1 here; exactly the same results were obtained with reg2.

We need to translate the coordinates in data, which are in the range, so that they correspond to those in reg1. We need to take dimensions of the RegionPlot of reg1, without the Frame:

id = ImageDimensions @ RegionPlot[#, Frame -> None] &@reg1

{360, 360}

I calculated it with pen and paper, but it's easy (the transformation is linear) to do it automatically. With the derived RegionFunction:

ListPlot3D[data,
 RegionFunction ->
  Function[{x, y, z}, {72 x, (y + 1) 72} \[Element] reg1]]
