In Wolfram Workbench it used to be possible to generate HTML Documentation pages. Now when I build, using Mathematica 10.4+ and Workbench 2 or 3 on Windows 8.1, the HTML build fails (the notebook documentation build still works).

The error I receive in the AntLog is: *** Output file test failed ***. Which means that the HTML files are not Exported.

Tracing a bit further in ExportDocumentation I found the function Transmogrify, which should have exported the HTML but does not.

Frank Martin
  • 1,145
  • 6
  • 17

2 Answers2

9

Partial Solution

Wolfram Workbench 2 and 3 are not able to launch the front end (Mathematica 10+) to create the final HTML. The solution is to use the new (Eclipse-plugin) version, downloadable from: https://www.wolfram.com/workbench/. Which is also free when you have purchased a Mathematica license.

Some issues with the HTML

edit: I took the time to document the steps bellow in more detail here.

I encountered some issues with the generated HTML (my best guess is that the HTML for local viewing, as Wolfram is calling it, is not updated). Not sure if I fixed this in the right place, so please if you have a better solution let me know. These fixes should be done in the

  • in fonts.css (either in the minimal or standard folder) the font SourceSansPro-Semibold.woff seems to have an incorrect path replace all: /fonts/sourcesanspro/v8/fonts/SourceSansPro with /fonts/sourcesanspro/v8/SourceSansPro
  • the folder: images/mathematicaIncludes does not seem to be copied for local viewing.
  • It is not possible to click to code to copy (like on the Mathematica site). Change the jquery version to 1.7.2 (already in the export), and add the clipboards.js from Wolfram: http://reference.wolfram.com/2013/javascript/clipboard.js, The styling can be fixed by: http://reference.wolfram.com/2013/css/clipboard.css. Don't forget to also include the two images: http://reference.wolfram.com/2013/images/clipboard@2x.png and http://reference.wolfram.com/2013/images/check-mark@2x.png
  • The collapsed pages (like Scope and options) do not show the code sniplets but the text Click code to copy. Apparently the sub-pages.js is outdated, i looked up which they used on their site: http://reference.wolfram.com/2013/javascript/sub-pages.js. This fixes the problem.
  • Links on the top right corner (see also) relative path is not correct, leading to a dead page.
Community
  • 1
Frank Martin
  • 1,145
  • 6
  • 17
  • Hi @Frank did you ever get this to work? I'm on workbench eclipse plugin 10.1.757 and still see every single issue you mention and more... – M.R. Dec 21 '16 at 05:04
  • 1
    @M.R. yes it worked fine. You can see that it worked at: http://www.lieanalysis.nl/documentation/ . I geuss i will be updating this answer soon with some new insights. If you encounter any difficulties I be happy to help. – Frank Martin Dec 21 '16 at 09:10
  • @M.R. Not that the link in previous comment is a work in progress ;) – Frank Martin Dec 21 '16 at 09:11
  • 2
    I checked out your site, very nice. I would love to know how you overcame all the issues in the html build process and maybe wrap it into a git repo. Perhaps we can have a chat session if you have a free moment. I added pictures of the problems I see while exporting below. – M.R. Dec 21 '16 at 17:23
  • How do you "change the version of jquery" btw? – user5601 Dec 21 '16 at 17:37
  • @user5601 You have to alter the html – Frank Martin Dec 22 '16 at 13:08
  • @M.R. Let me start by updating my answer, let's take it from there. – Frank Martin Dec 22 '16 at 13:13
  • @M.R. Lets continue to solve the HTML problems in a seperate post. As this is nog longer related to the original question. http://mathematica.stackexchange.com/questions/134069/workbench-html-documentation-build-html-issues – Frank Martin Dec 22 '16 at 16:11
  • Ok, sounds good. What about a chat/messaging session? – M.R. Dec 22 '16 at 17:50
  • @M.R. Sure, what do you suggest? I might be unavailable the next week as I have mandatory leave ;). – Frank Martin Dec 23 '16 at 16:38
2

This is not an answer but an extended comment. I'm on macos 10.12.1 with v11.0.1 and I'm using this version of the eclipse (for java developers) wolfram plugin:

enter image description here

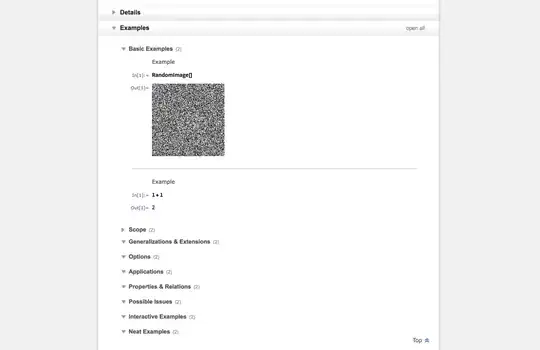

I wanted to put up pictures of all the glitches from the html export process:

  • Corrupted input cells:

    enter image description here

  • Corrupted input and output cells:

    enter image description here

  • Missing input cells:

    enter image description here

  • Arrows not formatting:

    enter image description here

  • Broken extended examples sections:

    enter image description here

  • Frank Martin was able to get this click to copy button working:

    enter image description here

M.R.
  • 31,425
  • 8
  • 90
  • 281
  • 1
    I wonder if wolfram has a newer version of DocumentationBuild/Tools, Transmogrify, and html.xml and hasn't released it? – M.R. Dec 21 '16 at 17:16
  • The html.xml build script references MMA6: <property name="mathExe" value="C:\\Program\ Files\\Wolfram\ Research\\Mathematica\\6.0\\MathKernel.exe"/> There must be a new version somewhere no? – user5601 Dec 21 '16 at 18:09
  • Some of these issues are related to the javascript, ill update this post early next year. – Frank Martin Dec 22 '16 at 10:12
