The question is as follows:

Calculate the length of the graph of the function $f(x)=e^x$ between $x=0$ and $x=1$.

Use this: $\alpha =\int_a^b \sqrt{\left(\frac{\partial f(x)}{\partial x}\right)^2+1} \, dx$

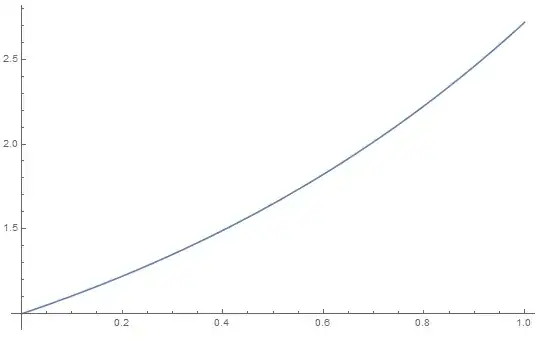

I made a graph to view:

f[x_] := E^x
Plot[f[x], {x, 0, 1}]

enter image description here

α = Integrate[Sqrt[D[f[x], {x}]^2 + 1], {x, 0, 1}]

$-\sqrt{2}+\sqrt{1+e^2}+\tanh ^{-1}\left(\sqrt{2}\right)-\tanh ^{-1}\left(\sqrt{1+e^2}\right)$

N[α]

$2.0035\, +0. i$

But this result I did not understand. Was it not supposed to return a real value?

corey979
  • 23,947
  • 7
  • 58
  • 101
  • 3
    Mathematica automatically works with complex numbers, use Chop. 6884 – Kuba Dec 09 '16 at 10:47
  • 1
    If you're not interested in the closed form, just use NIntegrate[] directly. Integrate[Sqrt[Exp[2 x] + 1], {x, 0, 1}] // TrigToExp // FullSimplify yields a result that does not give a spurious imaginary part after being treated with N[]. – J. M.'s missing motivation Dec 09 '16 at 16:44
  • 2
    If you want the most direct WL approach, you could use: ArcLength[Exp[x], {x, 0, 1}]. – Carl Woll Dec 31 '16 at 10:34

1 Answers1

2
f[x_] := E^x
a = Integrate[Sqrt[D[f[x], {x}]^2 + 1], {x, 0, 1}]

$-\sqrt{2}+\sqrt{1+e^2}+\tanh ^{-1}\left(\sqrt{2}\right)-\tanh ^{-1}\left(\sqrt{1+e^2}\right)$

The same is obtained with ArcLength[Exp[x], {x, 0, 1}].

N @ a

2.0035 + 0. I

The imaginary part is a numerical artifact; check, e.g.

N[a, 30]

2.00349711162735247856990275242 + 0.*10^-30 I

and

N[a, 50]

2.0034971116273524785699027524202391308211427952321 + 0.*10^-50 I

In fact, N[a, p] gives a result in the form real part + 0.*10^-p I for every p $-$ the imaginary part is a numerical zero due to working with inexact numbers.

The simplest thing to do is

N[a] // Chop

2.0035

or slightly more elaborate

TrigToExp[a] // N

2.0035
