Consider a continuous signal as follows:
wavesum = 1.6 Cos[t + 0.3] + 30.9 Cos[3 t - 1.5] + 2.8 Cos[7 t + 1.7] +
80.1 Cos[5 t + 2.1] + 5.5 Cos[9 t - 2.4];
The Fourier Transform of this will be
cft = Table[{(1/Pi)*
Integrate[
wavesum/E^(I*ω*t), {t, -Pi, Pi}], ω}, {ω,
1, 10}];
Now I extracted the frequency, amplitude and phase components of the constituent signals using the following code:
frequency = DeleteCases[cft, {a_, _} /; Abs[Chop[a]] == 0][[All, 2]];
amplitude = Abs[DeleteCases[cft, {a_, _} /; Abs[Chop[a]] == 0][[All, 1]]];
phase = Arg[DeleteCases[cft, {a_, _} /; Abs[Chop[a]] == 0][[All, 1]]];
and displayed in a table format -
Panel@Grid[
Prepend[Transpose[{frequency, amplitude, phase}],
Style[#, {Blue, Bold, 12}] & /@ {"Frequency", "Amplitude",
"Phase"}], Frame -> All,
Dividers -> Directive[Gray, Thickness[4]],
ItemSize -> {Automatic, 2},
Background -> {None, {LightGreen, {LightBlue, LightOrange}}}]
and the output is:
Now I sampled the signal to apply discrete Fourier Transform:
fs = 20;
n = 20;
nl = fs/2;
data = Table[wavesum, {t, 0, 1 - 1/n, 1/n}];
Then performed discrete Fourier Transform:
dft = Table[{Sum[
data[[r]]/E^(2*Pi*I*(r - 1)*((s - 1)/n)), {r, 1, n}], s}, {s, 1,
nl}];
And got the frequency, amplitude and phase information -
freq = DeleteCases[dft, {a_, _} /; Abs[Chop[a]] == 0][[All, 2]] - 1;
amp = Abs[DeleteCases[dft, {a_, _} /; Abs[Chop[a]] == 0][[All, 1]]]/
nl;
pha = Arg[DeleteCases[dft, {a_, _} /; Abs[Chop[a]] == 0][[All, 1]]];

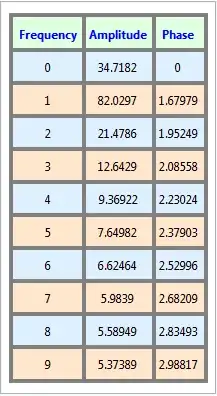

And displayed them:
Panel@Grid[
Prepend[Transpose[{freq, amp, pha}],
Style[#, {Blue, Bold, 12}] & /@ {"Frequency", "Amplitude",
"Phase"}], Frame -> All,
Dividers -> Directive[Gray, Thickness[4]],
ItemSize -> {Automatic, 2},
Background -> {None, {LightGreen, {LightBlue, LightOrange}}}]
However, if I choose the signal in the following format:
y = 1.6 Cos[2 π (t) + 0.3] + 30.9 Cos[2 π (3 t) - 1.5] +
2.8 Cos[2 π (7 t) + 1.7] + 80.1 Cos[2 π (5 t) + 2.1] +
5.5 Cos[2 π (9 t) - 2.4];
I get the desired result as I got for the continuous case.
What's wrong with my understanding and how can I fix it?


FourierandFourierTransform. You are performing the fourier transform with your own routines, but I am pretty sure that the $2\pi$ can be found when tracing the math carefully. – ftiaronsem Jul 11 '17 at 14:13
