Visibility Polygon

Question

Description

Based on recent assignment at work, I have become interested in computational geometry. So, I am trying to implement a visibility polygon as to explore some fundamental concepts and ideas.

The objective is to derive a visibility polygon. I have implemented a mock-up module, but I struggle to get the actual polygon... I was wondering if somebody could throw in some pointers on how to proceed.

Code:

Module[
 {module, vision, obstacle, bVision, bObstacle},
 module = Polygon[{{0, 0}, {10, 0}, {10, 8}, {5, 8}, {5, 12}, {0, 12}}];
 vision = Disk[{1, 1}, 5, {Pi/6, Pi/2}];
 obstacle = Rectangle[{2, 1}, {6, 3}, RoundingRadius -> .5];

 bVision = MeshCoordinates @ BoundaryDiscretizeRegion @ RegionDifference[vision, obstacle];
 bObstacle = MeshCoordinates @ BoundaryDiscretizeRegion @ obstacle;

 Graphics[{
   {FaceForm @ White, EdgeForm @ {Black, Thick}, module},
   {FaceForm @ White, EdgeForm @ {Black, Thick}, vision},
   {FaceForm @ White, EdgeForm @ {Blue, Thick}, obstacle},

   {Red, PointSize -> 0.015, Point @ bVision},
   {Green, PointSize -> 0.015, Point @ bObstacle},

   (*The idea was to use these lines for RegionIntersection...The idea failed...*)
   Line @ {{1, 1}, #} & /@ bVision

   }, ImageSize -> {300, 300}]
 ]

Reference

Visibility Polygon

Thank you to both users above. The problem I have with the first link is I cannot comprehend the code :s It does though represent what I want to implement — e.doroskevic, Jan 11 '17 at 00:01

cvgmt · Accepted Answer · 2023-09-15T14:34:59.010

Edit

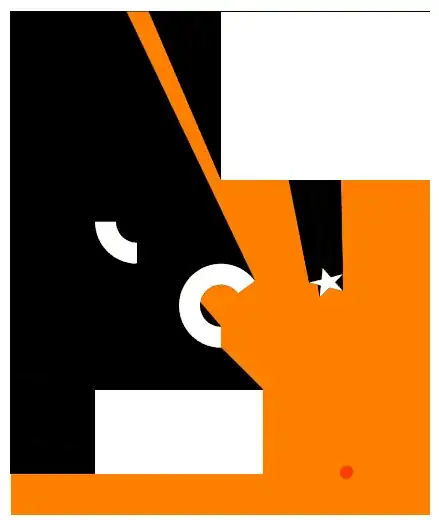

Test non-convex case.

Clear["Global`*"];
space0 = Rectangle[{0, 0}, {10, 12}];
obstacles0 = {Rectangle[{2, 1}, {6, 3}],
   Annulus[{5, 5}, {1/2, 1}, {.2 Pi, 1.5 Pi}],
   WindingPolygon[{7, 5} + # & /@ {{0.35, 0.2}, {0.9, 0.75}, {0.1,
       0.55}, {0.9, 0.35}, {0.42, 0.9}}], Rectangle[{5, 8}, {10, 12}],
    Annulus[{3, 7}, {1/2, 1}, {Pi, 1.5 Pi}]};
domain = Fold[RegionDifference, BoundaryDiscretizeRegion@space0,
   BoundaryDiscretizeRegion /@ obstacles0];
lines = MeshPrimitives[domain, 1][[;; , 1]];
L = 15;
shadow[loc_, line_] :=
  Polygon[{line[[1]] + L*Normalize[line[[1]] - loc], line[[1]],
    line[[2]], line[[2]] + L*Normalize[line[[2]] - loc]}];
Manipulate[
 Graphics[{Orange, space0, AbsolutePointSize[10], Red, Point@loc,
   Black, shadow[loc, #] & /@ lines, White, obstacles0},
  PlotRange -> RegionBounds[domain]], {{loc, {8, 1}}, Locator,
  TrackingFunction -> Function[pos, loc = RegionNearest[domain]@pos],
  Appearance ->
   Graphics[{Red, AbsolutePointSize[10], Point[{0, 0}]}]}]

Original

Now support dynamic.
Only work for convex obstacles. For non-convex obstacles and non-convex space,we need to subdivide to several convex pieces at first.

Clear["Global`*"];
space0 = Rectangle[{0, 0}, {10, 12}];
obstacles0 = {Rectangle[{2, 1}, {6, 3}], Disk[{5, 5}, 1],
   Polygon[{{7, 5}, {9, 5}, {8, 7}}], Rectangle[{5, 8}, {10, 12}]};
domain = BoundaryDiscretizeRegion@
   RegionDifference[space0, RegionUnion@obstacles0];
shadow[loc_, obstacle_] :=
  Module[{con, pts},
   con = ConvexHullMesh[
     Join[{loc}, MeshCoordinates[BoundaryDiscretizeRegion@obstacle]]];
   pts = MeshPrimitives[con, 1][[;; , 1]][[;; , 1]];
   RegionUnion[
    Polygon[{pts[[-1]], pts[[2]],
      pts[[2]] + 100 (pts[[2]] - pts[[1]]),
      pts[[01]] + 100 (pts[[-1]] - pts[[1]])}], obstacle]];
Manipulate[
 Graphics[{Orange, space0, AbsolutePointSize[10], Red, Point@loc,
   Black, BoundaryDiscretizeRegion@
      RegionIntersection[space0, shadow[loc, #]] & /@ obstacles0,
   White, obstacles0}], {{loc, {8, 1}}, Locator,
  TrackingFunction -> Function[pos, loc = RegionNearest[domain]@pos],
  Appearance -> Graphics[{Red, AbsolutePointSize[10], Point[{0, 0}]}]}]

This is impressive! I will certainly play around with this solution, as I have some use cases for it — e.doroskevic, Sep 15 '23 at 18:28

Quantum_Oli · Answer 2 · 2017-01-11T08:22:01.117

The link provided by corey979 in the comments to the question does certainly look close to the desired outcome. However I'm not sure it would generalise (easily) to the case with objects within a bounding region also occluding the vision. Here is a method using RegionIntersection, it is relatively slow (around a second in my test cases), and ideally would have a recursive procedure added to refine the visibility polygon where needed.

Setup

space = Polygon[{{0, 0}, {10, 0}, {10, 8}, {5, 8}, {5, 12}, {0, 12}}];
obstacles = {Rectangle[{2, 1}, {6, 3}], Disk[{5, 5}, 1], Polygon[{{7, 5}, {9, 5}, {8, 7}}]};
reg = RegionDifference[DiscretizeGraphics[space], DiscretizeGraphics[obstacles, MaxCellMeasure -> 0.03]];

vision = CirclePoints[2., 200];(*Could be altered to only permit a viewing angle < 360*)

loc = {2, 5.5};

Show[reg, Graphics[Point[loc]]]

Solve

mp = MeshPrimitives[RegionBoundary[reg], 1];

polypts = Flatten[
    ParallelTable[
     Nearest[
      DeleteCases[
        RegionIntersection[#, HalfLine[{loc, loc + v}]] & /@ mp,
        EmptyRegion[2]][[;; , 1]],
     loc, 1],
    {v, vision}],
   1
  ];

Show[reg, Graphics[{Point[loc], Opacity[0.5], Red, Polygon[polypts]}]]

You can see that at the edges of occluding objects the vision polygon sometimes clips through them. This will be an artefact of this method that will reduce as the number of vision lines increases, however this slows the process down. Better would be to use a few vision lines at the outset (20, maybe 50?) and then recursively refine (by adding further vision lines) those regions where the distance from loc to the termination points of subsequent vision lines changes abruptly.

Here is an exaggerated illustration of the problem with the vision lines used shown in blue:

I really like this, I will accept it as an answer by the end of Today. At present, will leave the question open to see if any other solutions will be presented. I really like the fact that I learned a number of new functions :D Thank you for that — e.doroskevic, Jan 11 '17 at 12:10
There seems to be an issue with the corners of the regions due to connecting the intersection of the vision lines with the external boundaries. — Markus Roellig, Sep 13 '23 at 14:59

score 6 · Answer 3 · answered Sep 12 '23 at 05:58

I am using v12.2.0 on Win7-x64. This is too slow for dynamic work but hopefully will be useful in more static cases, or at least as a verification aid while developing your own algorithms.

Clear["Global`*"];
space = Polygon[{{0, 0}, {10, 0}, {10, 8}, {5, 8}, {5, 12}, {0, 12}}];
obstacles = {Rectangle[{2, 1}, {6, 3}], Disk[{5, 5}, 1],
   Polygon[{{7, 5}, {9, 5}, {8, 7}}]};
reg = RegionDifference[DiscretizeGraphics[space],
   DiscretizeGraphics[obstacles, MaxCellMeasure -> 0.03]];
loc = {2, 5.5};
reg2 = Line[{loc, {x, y}}];
cond = RegionWithin[reg, reg2];
RegionPlot[cond
 , {x, -1, 11}, {y, -1, 13}
 , MaxRecursion -> 2
 , PlotPoints -> 30
 , PlotStyle -> ColorData[97][3]
 , BoundaryStyle -> Directive[Thin, Black]
 , Prolog -> {
   {Opacity[0.4, Brown], reg}
   }
 , Epilog -> {
   {Black, AbsolutePointSize[6]
    , Point@loc}
   }
 ]
