How to coordinate colors?

Question

In this adaptation of an ancient post ( Placing a ContourPlot under a Plot3D ) I would like to know how to coordinate the colors of the surface on the color of the scheme LightTerrain or any other scheme. In other words, I wonder how to know which colors are used in a scheme.

 f = E^-(x^2 + y^2);

 min = 0;
 max = 1;
  f1 = Plot3D[f, {x, -2, 2}, {y, -2, 2}, PlotRange -> {min, max},
  ClippingStyle -> None, MeshFunctions -> {#3 &}, Mesh -> 15,
  MeshStyle -> Opacity[.5],
  MeshShading -> {{Opacity[.3], Blue}, {Opacity[.8], LightBlue}},
  Lighting -> "Neutral", Boxed -> False];
  slice = SliceContourPlot3D[f,
  z == min - 2, {x, -2, 2}, {y, -2, 2}, {z, min - 2, min + 1},
  PlotRange -> {min, max}, Contours -> 15, Axes -> False,
  PlotPoints -> 50, PlotRangePadding -> 0,
  ColorFunction -> "LightTerrain"];

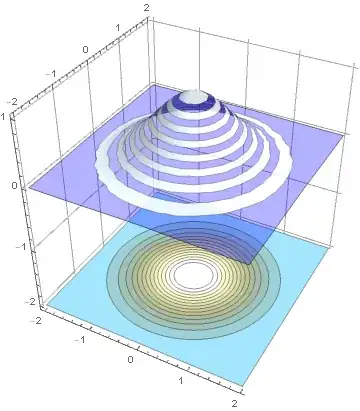

 Show[f1, slice, PlotRange -> All, BoxRatios -> {1, 1, 1},
  FaceGrids -> {Back, Left}]

score 3 · Answer 1 · answered Dec 27 '19 at 00:59

"I wonder how to know which colors are used in a scheme"

The blending colors for gradient color schemes can be obtained using the function DataPaclets`ColorData`GetBlendArgument. For example:

DataPaclets`ColorData`GetBlendArgument["LightTerrain"]

For continuous gradient schemes (all except "BrightBands" and "DarkBands") blending argument is just a list of colors. For a randomly selected 12 of continuous gradient schemes, the color lists are:

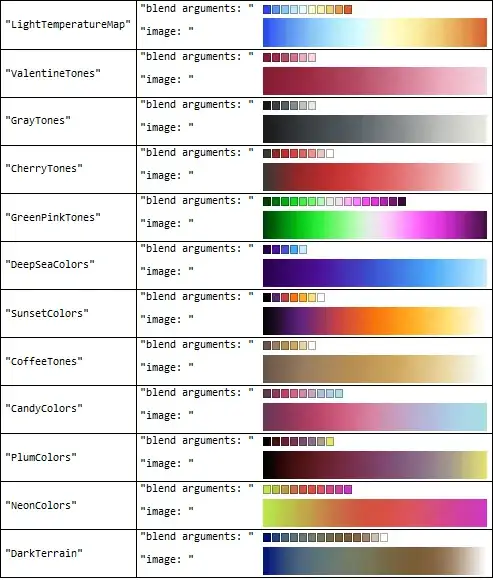

Grid[{#, Grid[{{"blend arguments: ", Row @ DataPaclets`ColorData`GetBlendArgument @ #},
 {"image: ",  ColorData[#, "Image"]}}, Alignment -> {{Left, Left}, Center}]} & /@
  RandomSample[Delete[ColorData["Gradients"], {{10}, {16}}], 12],
 Dividers -> All, Alignment -> {{Left, Left}, Center}]

For the two discontinuous schemes:

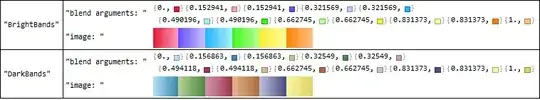

Grid[{#, Grid[{{"blend arguments: ", Row @ DataPaclets`ColorData`GetBlendArgument @ #},
  {"image: ", ColorData[#, "Image"]}}, Alignment -> {{Left, Left}, Center}]} & /@
  ColorData["Gradients"][[{10, 16}]],
 Dividers -> All, Alignment -> {{Left, Left}, Center}]

score 2 · Accepted Answer · answered Mar 08 '17 at 21:28

Give this a look:

AssociationMap[Blend["LightTerrain", #1] &, Range[0, 1, .05]]

This is the simplest way to get the actual colors and here's why:

ColorData returns a ColorDataFunction which is really a special InterpolatingFunction-esque object.

In this case we get:

In[622]:= ColorData["LightTerrain"] // InputForm

Out[622]//InputForm=
ColorDataFunction["LightTerrain", "Gradients", {0, 1}, Blend["LightTerrain", #1] & ]

Then look at ColorDataFunction // SubValues to see what this does and it's really only Blend["LightTerrain", #1] & that's important here.

But the gradients defining "LightTerrain" in blend aren't obviously scrapeable. They're probably possible to find, but it's likely not worth it when you can just use the function.
