How to make Text size consistent with ImageSize

Question

I'm using Mathematica to create complex figures. I would like to work them out on small size images and then, just before exporting them, increase the ImageSize. But I find that when I change the ImageSize, the Text remains the same size and so the image does not resize proportionally. Is there a strategy for overcoming this?

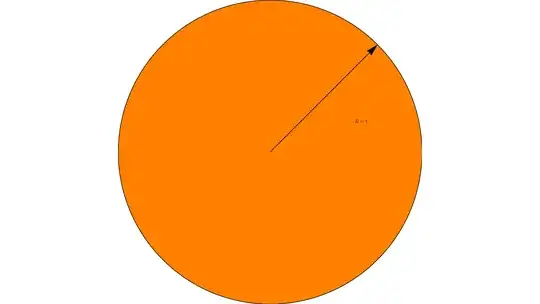

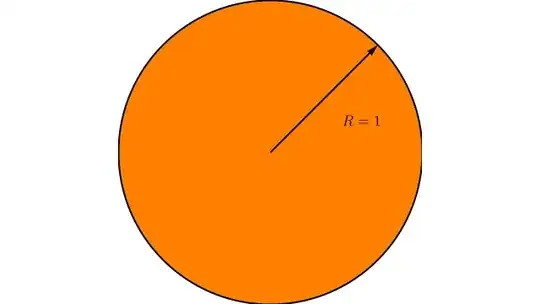

The first image has a small ImageSize and the second image has a large ImageSize.

The issue is that the text is not implemented as vector graphics. You can make it so, though, using this: http://mathematica.stackexchange.com/a/88378/38205 — b3m2a1, Apr 02 '17 at 03:55
Have you tried using something like FontSize->Scaled[.05]? — Carl Woll, Apr 02 '17 at 04:51

score 8 · Answer 1 · edited Apr 13 '17 at 12:55

In Mathematica 10.1 this scales well for me:

Graphics[{
  {EdgeForm[{Thickness[0.01], Black}], Orange, Disk[]},
  {Thickness[0.015], Arrowheads[0.08], Arrow[{{0, 0}, {1, 1} Sqrt[2]/2`}]},
  {FontSize -> Scaled[0.05], Text["R \[LongEqual] 1", {0.5, 0.2}]}
}]

The critical detail being FontSize -> Scaled[0.05] which I see is exactly what Carl Woll already proposed in a comment. I also used Thickness rather than AbsoluteThickness for the EdgeForm and Arrow so that these elements scale as well.

Other examples:
