Simple Answer
We can get this to work by simply setting two flags on the images. They need Interleaving -> True and they need to be "Byte" images. Happily Rasterize will do this for us if we ask it to:
Consider this:
Panel["asdasdasd",
ImageSize -> 200,
Appearance ->
MapThread[Rule, {
{"Default", "Hover"},
Rasterize[Graphics[{#, Scale[Disk[], {1, .5}]}, ImageSize -> 50],
"Image"] & /@
{Red, Blue}
}]
]
Extended Answer
One issue with this though is that when we expand the panel our image simply rescales. And if we look at, say,
Panel["asd",
Appearance ->
FrontEndResource["NotebookTemplatingExpressions",
"ButtonDefaultAppearance"]
]
The Panel samples really nicely. And what's behind it is the little black borders we see in FrontEndResource["NotebookTemplatingExpressions","ButtonDefaultAppearance"].
Playing with it I've found the border has can't entirely box off the image, but otherwise as long as it's there it will have an effect. And this effect depends on how large the border is. The particulars of this aren't entirely clear to me yet, but the smaller it is the further from that border text seems to get placed.
Auto-formatting
With all that said, then, we can define a function to generate the appropriate sort of images--even from non-image objects (the formatting is wonky because I develop in code cells):
Options[AppearanceReadyImage] =
Join[
{
BorderDimensions -> Automatic,
Prolog -> Identity,
ImagePadding -> None
},
Options@Rasterize
];
AppearanceReadyImage[i_?(ImageQ),ops:OptionsPattern[]]:=
With[{img=
ColorConvert[
ImagePad[
Replace[OptionValue[ImagePadding],{
Except[_Integer|{{_Integer,_Integer},{_Integer,_Integer}}]:>
Replace[OptionValue@Prolog,None->Identity]@i,
int_:>
ImagePad[
Replace[OptionValue@Prolog,None->Identity]@i,
int,GrayLevel[0,0]]
}],
1,GrayLevel[0,0]],
"RGB"
]},
With[{dims=ImageDimensions@img},
With[{
mx=Floor@First@dims/2,my=Floor@Last@dims/2,
x=First@dims,y=Last@dims
},
With[{
rleft=
Replace[
Replace[OptionValue@BorderDimensions,{
Automatic->Scaled[.5],
{{x_,_},_}|{x:Except[_List],_}:>
Replace[x,Automatic->Scaled[.5]]
}],{
Except[_Scaled|_?NumericQ]->None,
w_?NumericQ:>
Range[Floor@-w/2,Floor@w/2],
Scaled[w_]:>
Range[Floor@-(y*w/2),Floor@(y*w/2)]
}],
rright=
Replace[
Replace[OptionValue@BorderDimensions,{
Automatic->Scaled[.5],
{{_,r_},_}|{r:Except[_List],_}:>
Replace[r,Automatic->Scaled[.5]]
}],{
Except[_Scaled|_?NumericQ]->None,
w_?NumericQ:>
Range[Floor@-w/2,Floor@w/2],
Scaled[w_]:>
Range[Floor@-(y*w/2),Floor@(y*w/2)]
}],
rbottom=
Replace[
Replace[OptionValue@BorderDimensions,{
Automatic->Scaled[.8],
{_,_}|{_,x_}:>
Replace[x,Automatic->Scaled[.8]]
}],{
Except[_Scaled|_?NumericQ]->None,
w_?NumericQ:>
Range[Floor@-w/2,Floor@w/2],
Scaled[w_]:>
Range[Floor@-(x*w/2),Floor@(x*w/2)]
}],
rtop=
Replace[
Replace[OptionValue@BorderDimensions,{
Automatic->Scaled[.5],
{_,{_,t_}}|{_,t_}:>
Replace[t,Automatic->Scaled[.5]]
}],{
Except[_Scaled|_?NumericQ]->None,
w_?NumericQ:>
Range[Floor@-w/2,Floor@w/2],
Scaled[w_]:>
Range[Floor@-(x*w/2),Floor@(x*w/2)]
}]
},
Image[
ReplacePixelValue[
img,
Join[
If[rleft===None,
{},
Thread[{1,rleft+my}]
],
If[rright===None,
{},
Thread[{x,rright+my}]
],
If[rbottom===None,
{},
Thread[{rbottom+mx,1}]
],
If[rtop===None,
{},
Thread[{rtop+mx,y}]
]
]->Black
],
"Byte",
Interleaving->True
]
]
]
]
];
AppearanceReadyImage[
e : Except[_Mouseover | _List | _Rule]?(Not@*ImageQ),
ops : OptionsPattern[]] :=
AppearanceReadyImage[
Rasterize[e, "Image", FilterRules[{ops}, Options@Rasterize]],
ops];
AppearanceReadyImage[k_ -> img_, ops : OptionsPattern[]] :=
k -> AppearanceReadyImage[img, ops];
AppearanceReadyImage[l_List, ops : OptionsPattern[]] :=
AppearanceReadyImage[#, ops] & /@ l;
AppearanceReadyImage[Mouseover[e1_, e2_],
ops : OptionsPattern[]] :=
{
"Default" -> AppearanceReadyImage[e1, ops],
"Hover" -> AppearanceReadyImage[e2, ops]
};
As far as code blocks go it's more than I'd usually want to post here, but it does let us do fun stuff. We can build buttons from Framed expressions:
Button[
"Try me!",
Appearance ->
AppearanceReadyImage[
MapThread[Rule, {
{"Default", "Hover", "Pressed"},
Map[
Framed["",
ImageSize -> 100,
Background -> #,
RoundingRadius -> 5,
FrameStyle -> Directive[Thickness[.3], GrayLevel[.8]]
] &,
{None, GrayLevel[.95], LightBlue}
]
}],
ImageResolution -> 750
]
]
Classic button images
Or we can make write a convenience function for LinearGradientImage that will let us make buttons of any color:
Options[GradientAppearance] = {
ImageSize -> {10, 20},
ImagePadding -> 1,
FrameStyle -> Darker
};
GradientAppearance[
color_?ColorQ,
center :
_?NumericQ | _Scaled |
{_?NumericQ | _Scaled, _?NumericQ | _Scaled} :
{Scaled[1], Scaled[.25]},
ops : OptionsPattern[]] :=
With[{
imageSize =
OptionValue[ImageSize],
frameColor =
Replace[OptionValue[FrameStyle], {
c_?ColorQ :>
c,
e_ :>
e@color
}],
pad = OptionValue[ImagePadding]
},
With[{cents =
Replace[
Replace[center, {
n_?NumericQ :>
{Scaled[1], n},
s_Scaled :>
{Scaled[1], s}
}], {
Scaled[s_] :>
s*Last@imageSize
},
1]},
If[pad =!= None,
ImagePad[#, pad, frameColor],
Identity] &@
LinearGradientImage[
Thread@{Center, cents} ->
{
color,
Hue[#[[1]], #[[2]], #[[3]] + .05] &@ColorConvert[color, Hue],
Hue[#[[1]], #[[2]], #[[3]] + -.1] &@ColorConvert[color, Hue]
},
imageSize
]
]
];
GradientAppearance[{c_?ColorQ}, ops : OptionsPattern[]] :=
"Default" -> GradientAppearance[c, ops];
GradientAppearance[c : {_?ColorQ, _?ColorQ},
ops : OptionsPattern[]] :=
MapThread[
# -> GradientAppearance[#2, ops] &, {
{"Default", "Hover"},
c
}];
GradientAppearance[c : {_?ColorQ, _?ColorQ, _?ColorQ},
ops : OptionsPattern[]] :=
MapThread[
# -> GradientAppearance[#2, #3, ops] &, {
{"Default", "Hover", "Pressed"},
c,
{Scaled[.25], Scaled[.25], Scaled /@ {.25, .65}}
}];

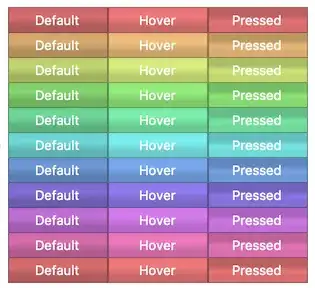

Putting this together we can get some very nice looking UI elements with very little code to tweak and mess about with:
Grid[
Map[
MapThread[
Button[
Style[#, White],
ImageSize -> 100,
Appearance ->
#2
] &,
List @@@ AppearanceReadyImage[
GradientAppearance@{
Hue[#, .5, .8],
Hue[#, .5, .9],
Hue[#, .5, .85]}
] // Transpose
] &,
Range[0, 1, .1]
],
Spacings -> {0, 0}
]
Single code-block:
Here're both large blocks in one to make copying easier:
Options[AppearanceReadyImage] =
Join[
{
BorderDimensions -> Automatic,
Prolog -> Identity,
ImagePadding -> None
},
Options@Rasterize
];
AppearanceReadyImage[i_?(ImageQ),ops:OptionsPattern[]]:=
With[{img=
ColorConvert[
ImagePad[
Replace[OptionValue[ImagePadding],{
Except[_Integer|{{_Integer,_Integer},{_Integer,_Integer}}]:>
Replace[OptionValue@Prolog,None->Identity]@i,
int_:>
ImagePad[
Replace[OptionValue@Prolog,None->Identity]@i,
int,GrayLevel[0,0]]
}],
1,GrayLevel[0,0]],
"RGB"
]},
With[{dims=ImageDimensions@img},
With[{
mx=Floor@First@dims/2,my=Floor@Last@dims/2,
x=First@dims,y=Last@dims
},
With[{
rleft=
Replace[
Replace[OptionValue@BorderDimensions,{
Automatic->Scaled[.5],
{{x_,_},_}|{x:Except[_List],_}:>
Replace[x,Automatic->Scaled[.5]]
}],{
Except[_Scaled|_?NumericQ]->None,
w_?NumericQ:>
Range[Floor@-w/2,Floor@w/2],
Scaled[w_]:>
Range[Floor@-(y*w/2),Floor@(y*w/2)]
}],
rright=
Replace[
Replace[OptionValue@BorderDimensions,{
Automatic->Scaled[.5],
{{_,r_},_}|{r:Except[_List],_}:>
Replace[r,Automatic->Scaled[.5]]
}],{
Except[_Scaled|_?NumericQ]->None,
w_?NumericQ:>
Range[Floor@-w/2,Floor@w/2],
Scaled[w_]:>
Range[Floor@-(y*w/2),Floor@(y*w/2)]
}],
rbottom=
Replace[
Replace[OptionValue@BorderDimensions,{
Automatic->Scaled[.8],
{_,_}|{_,x_}:>
Replace[x,Automatic->Scaled[.8]]
}],{
Except[_Scaled|_?NumericQ]->None,
w_?NumericQ:>
Range[Floor@-w/2,Floor@w/2],
Scaled[w_]:>
Range[Floor@-(x*w/2),Floor@(x*w/2)]
}],
rtop=
Replace[
Replace[OptionValue@BorderDimensions,{
Automatic->Scaled[.5],
{_,{_,t_}}|{_,t_}:>
Replace[t,Automatic->Scaled[.5]]
}],{
Except[_Scaled|_?NumericQ]->None,
w_?NumericQ:>
Range[Floor@-w/2,Floor@w/2],
Scaled[w_]:>
Range[Floor@-(x*w/2),Floor@(x*w/2)]
}]
},
Image[
ReplacePixelValue[
img,
Join[
If[rleft===None,
{},
Thread[{1,rleft+my}]
],
If[rright===None,
{},
Thread[{x,rright+my}]
],
If[rbottom===None,
{},
Thread[{rbottom+mx,1}]
],
If[rtop===None,
{},
Thread[{rtop+mx,y}]
]
]->Black
],
"Byte",
Interleaving->True
]
]
]
]
];
AppearanceReadyImage[
e : Except[_Mouseover | _List | _Rule]?(Not@*ImageQ),
ops : OptionsPattern[]] :=
AppearanceReadyImage[
Rasterize[e, "Image", FilterRules[{ops}, Options@Rasterize]],
ops];
AppearanceReadyImage[k_ -> img_, ops : OptionsPattern[]] :=
k -> AppearanceReadyImage[img, ops];
AppearanceReadyImage[l_List, ops : OptionsPattern[]] :=
AppearanceReadyImage[#, ops] & /@ l;
AppearanceReadyImage[Mouseover[e1_, e2_],
ops : OptionsPattern[]] :=
{
"Default" -> AppearanceReadyImage[e1, ops],
"Hover" -> AppearanceReadyImage[e2, ops]
};
Options[GradientAppearance] = {
ImageSize -> {10, 20},
ImagePadding -> 1,
FrameStyle -> Darker
};
GradientAppearance[
color_?ColorQ,
center :
_?NumericQ | _Scaled |
{_?NumericQ | _Scaled, _?NumericQ | _Scaled} :
{Scaled[1], Scaled[.25]},
ops : OptionsPattern[]] :=
With[{
imageSize =
OptionValue[ImageSize],
frameColor =
Replace[OptionValue[FrameStyle], {
c_?ColorQ :>
c,
e_ :>
e@color
}],
pad = OptionValue[ImagePadding]
},
With[{cents =
Replace[
Replace[center, {
n_?NumericQ :>
{Scaled[1], n},
s_Scaled :>
{Scaled[1], s}
}], {
Scaled[s_] :>
s*Last@imageSize
},
1]},
If[pad =!= None,
ImagePad[#, pad, frameColor],
Identity] &@
LinearGradientImage[
Thread@{Center, cents} ->
{
color,
Hue[#[[1]], #[[2]], #[[3]] + .05] &@ColorConvert[color, Hue],
Hue[#[[1]], #[[2]], #[[3]] + -.1] &@ColorConvert[color, Hue]
},
imageSize
]
]
];
GradientAppearance[{c_?ColorQ}, ops : OptionsPattern[]] :=
"Default" -> GradientAppearance[c, ops];
GradientAppearance[c : {_?ColorQ, _?ColorQ},
ops : OptionsPattern[]] :=
MapThread[
# -> GradientAppearance[#2, ops] &, {
{"Default", "Hover"},
c
}];
GradientAppearance[c : {_?ColorQ, _?ColorQ, _?ColorQ},
ops : OptionsPattern[]] :=
MapThread[
# -> GradientAppearance[#2, #3, ops] &, {
{"Default", "Hover", "Pressed"},
c,
{Scaled[.25], Scaled[.25], Scaled /@ {.25, .65}}
}];
