Possible Duplicate:
Consistent Plot Styles across multiple MMA files and data sets

So, here's my problem; I have a lot of data that is shown in different plots. I want all the plots to have the same options (PlotStyle, Axes, BaseStyle, FrameTicks, etc...). I also want to be able to modify these options (because the size and FontSize change depending on where I want to use the plots, in my thesis or in a presentation) and do that without having to change each Plot function by hand.

I guess what I'm looking for is something like this:

optionPacket = PlotStyle -> {RGBColor[1, 0, 0]}, Frame -> True,
               BaseStyle -> {FontSize -> 20};

and then use it like this:

ListPlot[mydata, optionPacket]

ListPlot[mydata2, optionPacket]

Is there any way to accomplish this? (What I just posted obviously doesn't work or I wouldn't be asking).

Community
  • 1
freda
  • 31
  • 1
  • You can define optionPacket = {RGBColor[1, 0, 0], Frame -> True, BaseStyle -> {FontSize -> 20}}; and then do Plot[Sin[x], {x, -1, 1}, PlotStyle -> optionPacket]. Notice your syntax is incorrect. – b.gates.you.know.what Nov 09 '12 at 12:26
  • @freda Welcome to the Mathematica StackExchange! We recommend that you register your account so you can easily keep track of answers and comments to your question. The following question (http://mathematica.stackexchange.com/questions/3247/) possibly answers yours. – tkott Nov 09 '12 at 15:53
  • Freda, I agree with tkott — this question was asked previously and has received good answers that address your question. – rm -rf Nov 09 '12 at 16:19

2 Answers2

5

Use Sequence[] for the purpose:

optionPacket = Sequence[PlotStyle -> {RGBColor[1, 0, 0]}, Frame -> True,
                        BaseStyle -> {FontSize -> 20}]

{ListPlot[RandomVariate[NormalDistribution[], {7, 2}], optionPacket],
 ListPlot[RandomVariate[WeibullDistribution[1, 2], {7, 2}], optionPacket]} // GraphicsRow

list plots

Szabolcs mentions that you can also use a plain list for the purpose, so

optionPacket = {PlotStyle -> {RGBColor[1, 0, 0]}, Frame -> True,
                BaseStyle -> {FontSize -> 20}}

works just as well.

J. M.'s missing motivation
  • 124,525
  • 11
  • 401
  • 574
  • Actually you can just use a plain List of options, there's no need for Sequence. I saw this in the Visualizaion QA and I was a bit surprised it was possible. Perhaps it's worth mentioning in the answer, it's more newbie-friendly than Sequence – Szabolcs Nov 09 '12 at 15:42
  • @Szabolcs: Hmm, interesting. I remember a time when one couldn't pass a list of options (which was why the old FilterOptions[] produced a Sequence[] object as output)... – J. M.'s missing motivation Nov 09 '12 at 15:45
  • I wouldn't expect this to work with all functions, but it does seem to work with Graphics and several (all?) plotting functions. OptionsPattern and related functions seem to handle it too. – Szabolcs Nov 09 '12 at 15:46
4

Another possibility is to add your settings to the options :

SetOptions[Plot, PlotStyle -> {RGBColor[1, 0, 0], Frame -> True, BaseStyle -> {FontSize -> 20}}]

Plot[Sin[x], {x, -1, 1}]

plot1

but

ParametricPlot[{x, Sin[x]}, {x, -1, 1}]

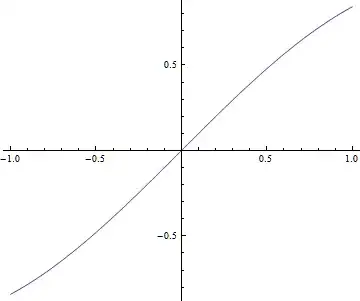

plot2
