PDF Export crashes Mathematica

Question

Bug introduced in 11.1.0 and fixed in 11.2.0

The following crashes the Front End when evaluated in version 11.1.0. Can anyone reproduce it?

WARNING! A Front End crash means losing all unsaved notebooks. Proceed with caution!

h = PolyhedronData["RhombicHexecontahedron"];
g = Graphics3D[{RGBColor[1, 0, 0, 0.8], EdgeForm[None], h[[1]]},
   Method -> {"ShrinkWrap" -> True}]
Export["g.pdf", g, Background -> None]

I get the crash with version 11.1.0 on Windows 7 x64 but no crash with version 11.0.1 on the same machine. — Alexey Popkov, Apr 18 '17 at 05:21
@M.R.: On lInux (xubuntu x86-64) g is produced, but the graphics cannot be exported to either a PDF or PNG. The program does not crash. — dwa, Apr 18 '17 at 05:53
If the crash is in the FE, not the kernel, always put a big warning in your post! Somebody may not pay attention, evaluate your code, and lose unsaved work. — Szabolcs, Apr 18 '17 at 06:24
@Szabolcs sorry, should have made the warning clearer! I hope you didn't lose any data — M.R., Apr 18 '17 at 14:07
No, this time I didn't (in the past I have). Just wanted to prevent it happening to others :-) — Szabolcs, Apr 18 '17 at 14:14
@Szabolcs I'm still interested in how to export it without the white background — M.R., Apr 18 '17 at 21:25
Probably nothing. Have you tried using PNG? The graphics are rasterized anyway, so there is no point to using PDF. — Szabolcs, Apr 20 '17 at 08:39
@Szabolcs I also tried using ImageGraphics but it looked crappy — M.R., Apr 21 '17 at 18:35
Without Method -> {"ShrinkWrap" -> True} I get no crash with version 11.1.0. — Alexey Popkov, Apr 26 '17 at 09:03
This workaround also works and allows to obtain vector PDF file: Export["myFig2.pdf", Graphics[Inset[g, Automatic, Automatic, Scaled[1]]]]. — Alexey Popkov, Apr 26 '17 at 09:08
I would file a report with support so that the issue can be investigated. — ktm, Apr 26 '17 at 14:31
Unable to reproduce. I do not get a crash. I do get a crash in export with large data files Using Linux machine Ubuntu 16.04LTS, ntel® Core™ i5-7600 CPU @ 3.50GHz × 4 — wlnwtz28, Sep 05 '17 at 22:56

rhermans · Answer 1 · 2017-09-11T15:19:28.530

Minimal code

Minimal code that reproduces the crash in Mathematica 11.1.1 Windows 7 64 bits

Export["g.pdf", Graphics3D[Point[{0, 0, 0}], Method -> {"ShrinkWrap" -> True}]]

Where as this will not cause a crash.

Export["g.pdf", Graphics3D[Point[{0, 0, 0}], Method -> {"ShrinkWrap" -> False}]]

Report

Reported to Wolfram Technical Support [CASE:3938717] .

Update 2017-09-11: Wolfram Technology Engineer confirmed the issue and have passed it along to developers for further diagnosis.

Workaround

Rasterize would prevent the crash

Export["g.pdf", Rasterize@ Graphics3D[Point[{0, 0, 0}], Method -> {"ShrinkWrap" -> True}]]

TraceScan

The following TraceScan

TraceScan[
 (PutAppend[#, "TracePrint.txt"]) &,
 Export["g.pdf",
  Graphics3D[Point[{0, 0, 0}], Method -> {"ShrinkWrap" -> True}]]
 ]

Comparing True and False options

Mathematica graphics

The lines after the first significant differences include

"MathLink connection was lost."

HoldForm[First] HoldForm[LinkError[LinkObject["wq5tk_shm", 3, 1]]] HoldForm[LinkError] HoldForm[LinkObject["wq5tk_shm", 3, 1]] HoldForm[{1, "MathLink connection was lost."}] HoldForm[First[{1, "MathLink connection was lost."}]] HoldForm[1] HoldForm[0] HoldForm[1 === 0] HoldForm[False] HoldForm[False] HoldForm[If[False, LinkObject["wq5tk_shm", 3, 1], Developer`UninstallFrontEnd[]; System`UseFrontEndDump`LaunchFrontEnd[]]] HoldForm[Developer`UninstallFrontEnd[]; System`UseFrontEndDump`LaunchFrontEnd[ ]] HoldForm[CompoundExpression] HoldForm[Developer`UninstallFrontEnd[]] HoldForm[Developer`UninstallFrontEnd] HoldForm[AbortProtect[If[Head[System`UseFrontEndDump`$felink] === LinkObject, LinkClose[System`UseFrontEndDump`$felink]; System`UseFrontEndDump`$felink =. ]* If[Head[System`UseFrontEndDump`$xproc] === ProcessObject, KillProcess[System`UseFrontEndDump`$xproc]; DeleteFile /@ Select[{StringJoin["/tmp/.X11-unix/X", System`UseFrontEndDump`$vncport], StringJoin["/tmp/.X", System`UseFrontEndDump`$vncport, "-lock"]}, FileExistsQ[#1] & ]; If[Environment["DISPLAY"] === StringJoin[":", System`UseFrontEndDump`$vncport], SetEnvironment["DISPLAY" -> None]; ]; Clear[System`UseFrontEndDump`$xproc]; ]]] HoldForm[AbortProtect] HoldForm[If[Head[System`UseFrontEndDump`$felink] === LinkObject, LinkClose[System`UseFrontEndDump`$felink]; System`UseFrontEndDump`$felink =. ]* If[Head[System`UseFrontEndDump`$xproc] === ProcessObject, KillProcess[System`UseFrontEndDump`$xproc]; DeleteFile /@ Select[{StringJoin["/tmp/.X11-unix/X", System`UseFrontEndDump`$vncport], StringJoin["/tmp/.X", System`UseFrontEndDump`$vncport, "-lock"]}, FileExistsQ[#1] & ]; If[Environment["DISPLAY"] === StringJoin[":", System`UseFrontEndDump`$vncport], SetEnvironment["DISPLAY" -> None]; ]; Clear[System`UseFrontEndDump`$xproc]; ]] HoldForm[Times] HoldForm[If[Head[System`UseFrontEndDump`$felink] === LinkObject, LinkClose[System`UseFrontEndDump`$felink]; System`UseFrontEndDump`$felink =. ]] HoldForm[If] HoldForm[Head[System`UseFrontEndDump`$felink] === LinkObject] HoldForm[SameQ] HoldForm[Head[System`UseFrontEndDump`$felink]] HoldForm[Head] HoldForm[System`UseFrontEndDump`$felink] HoldForm[Symbol] HoldForm[LinkObject] HoldForm[Symbol === LinkObject] HoldForm[False] HoldForm[If[False, LinkClose[System`UseFrontEndDump`$felink]; System`UseFrontEndDump`$felink =. ]]

subsequently last lines before crashing.

HoldForm[LinkHost -> ""] HoldForm[LinkOptions -> 256] HoldForm[LinkProtocol -> Automatic] HoldForm[LinkMode -> Launch] HoldForm[System`Dump`lcoptions$2519 = Sequence[LinkHost -> "", LinkOptions -> 256, LinkProtocol -> Automatic, LinkMode -> Launch]] HoldForm[LinkHost -> "", LinkOptions -> 256, LinkProtocol -> Automatic, LinkMode -> Launch] HoldForm[LinkOpen["C:\\Program Files\\Wolfram \ Research\\Mathematica\\11.1\\SystemFiles\\FrontEnd\\Binaries\\Windows-x86-64\ \\Mathematica.exe /b /min -mathlink -server", System`Dump`lcoptions$2519]] HoldForm[LinkOpen] HoldForm["C:\\Program Files\\Wolfram \ Research\\Mathematica\\11.1\\SystemFiles\\FrontEnd\\Binaries\\Windows-x86-64\ \\Mathematica.exe /b /min -mathlink -server"] HoldForm[System`Dump`lcoptions$2519] HoldForm[LinkHost -> "", LinkOptions -> 256, LinkProtocol -> Automatic, LinkMode -> Launch] HoldForm[LinkOpen["C:\\Program Files\\Wolfram \ Research\\Mathematica\\11.1\\SystemFiles\\FrontEnd\\Binaries\\Windows-x86-64\ \\Mathematica.exe /b /min -mathlink -server", Sequence[LinkHost -> "", LinkOptions -> 256, LinkProtocol -> Automatic, LinkMode -> Launch]]] HoldForm[LinkOpen["C:\\Program Files\\Wolfram \ Research\\Mathematica\\11.1\\SystemFiles\\FrontEnd\\Binaries\\Windows-x86-64\ \\Mathematica.exe /b /min -mathlink -server", LinkHost -> "", LinkOptions -> 256, LinkProtocol -> Automatic, LinkMode -> Launch]]

score 2 · Answer 2 · answered Sep 15 '17 at 07:25

2

fyi, fixed in 11.2. No crash

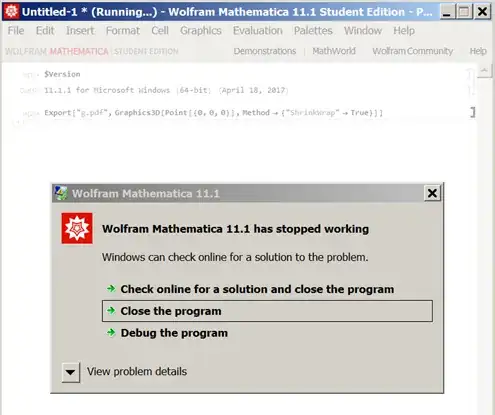

version 11.1.1

Mathematica graphics

version 11.2

Mathematica graphics

answered Sep 15 '17 at 07:25

Nasser

143,286
11
154
359
