Fill space between two BezierCurves with random points

Question

I asked a question about filling the space between two curves (Sin and Cos) with random points and the answer I received does not work for InterpolatingFunctions. How can I fill the space between two BezierCurves or InterpolatingFunctions?

For example, I have the BezierCurves c1 and c2:

c1 = {{0, 0}, {2, 0}, {2, 1}};
c2 = {{0, 0.25}, {1.75, 0.25}, {1.75, 1}};

Graphics[{BezierCurve@c1,BezierCurve@c2}]

I can use RandomPoint by turning these curves into a Polygon:

f[c_] := Quiet@
   Interpolation[BezierFunction[c][#] & /@ Range[0, 1, 0.01]];
g[c_] := {#, f[c][#]} & /@ Range[0, c[[-1, 1]], 0.01];

h1 = Join[{c2[[1]]}, g@c1]; h2 = Join[g@c2, {c1[[-1]]}];

Graphics[{
  Point@RandomPoint[Polygon@Join[h1, h2], 500],
  Thick, Line@h1, Line@h2
  }]

My question is, is there a better/more efficient way of doing this?

To people trying to solve this: here is a possible pitfall to be aware of. — J. M.'s missing motivation, Apr 21 '17 at 16:03

score 3 · Answer 1 · answered Feb 25 '24 at 14:28

Only add a Line and set CurveClosed -> True to draw a closed contour.

c1 = {{0, 0}, {2, 0}, {2, 1}};
c2 = {{0, 0.25}, {1.75, 0.25}, {1.75, 1}};
reg = JoinedCurve[{BezierCurve@c1, Line[{Last@c1, Last@c2}],
     BezierCurve@Reverse@c2}, CurveClosed -> True] //
   BoundaryDiscretizeGraphics;
Graphics[{{EdgeForm[Cyan], FaceForm[LightGreen], reg}, Red,
  Point@RandomPoint[reg, 200]}]

ZaMoC · Answer 2 · 2017-04-22T03:35:18.643

1

you can do it with sorcery...

c1 = {{2, 1}, {2, 0}, {0, 0}};
c2 = {{0, 0.25}, {1.75, 0.25}, {1.75, 1}};
gk = JoinedCurve[{Line[{{0, 0}, {0, 0.25}}], BezierCurve@c2,
Line[{{1.75, 1}, {2, 1}}], BezierCurve@c1}];
Graphics[{Black,
FilledCurve[{BezierCurve@c1, Line[{{0, 0}, {0, 0.25}}],
BezierCurve@c2, Line[{{1.75, 1}, {2, 1}}]}], White,
Point[RandomPoint[Disk[{1, 0.45}, {1.3, 0.9}], 5000]]}]

edited Apr 22 '17 at 03:35

answered Apr 22 '17 at 03:23

ZaMoC

6,697
11
31

score 1 · Answer 3 · answered Feb 25 '24 at 15:31

(Not an answer -- a comment/follow-up of the answer by @cvgmt.)

I expected NIntegerate to work also for this.

c1 = {{0, 0}, {2, 0}, {2, 1}};
c2 = {{0, 0.25}, {1.75, 0.25}, {1.75, 1}};
reg = JoinedCurve[{BezierCurve@c1, Line[{Last@c1, Last@c2}],
     BezierCurve@Reverse@c2}, CurveClosed -> True] //
   BoundaryDiscretizeGraphics;
res = Reap@
  NIntegrate[x, x [Element] reg, Method -> "MonteCarlo",
   PrecisionGoal -> 1.2, EvaluationMonitor :> Sow[{x}]]

But it gives the monitored point unevaluated:

{{0.596312, 0.204349}, {{{x}, {x}, {x}, {x},...

This work around can be used, but that is suboptimal:

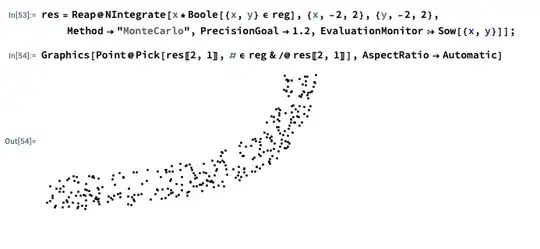

res = Reap@
   NIntegrate[x*Boole[{x, y} \[Element] reg], {x, -2, 2}, {y, -2, 2},
    Method -> "MonteCarlo", PrecisionGoal -> 1.2,
    EvaluationMonitor :> Sow[{x, y}]];
Graphics[Point@Pick[res[[2, 1]], # [Element] reg & /@ res[[2, 1]]],
 AspectRatio -> Automatic]

This works for me: res = Reap@NIntegrate[1, {x, y} \[Element] reg, Method -> "MonteCarlo", PrecisionGoal -> 1.2, EvaluationMonitor :> Sow@{x, y}]; — Goofy, Feb 25 '24 at 18:03
