Axes labeling with superscripts

Question

I need to label the y-axis of a plot with the form a/GeV^-1, where ^ denotes superscript. But Mathematica always write GeV a instead, interpreting 1/GeV^-1 as GeV. How to avoid this interpretation?

put it inside " ". AxesLabel->{"x axis", "a/GeV^-1"} – Sumit May 02 '17 at 13:58 — Sumit, May 02 '17 at 13:58

score 8 · Accepted Answer · edited Jul 30 '17 at 09:48

8

There is a $\LaTeX$ typesetting package, MaTeX, written for such situations by Szabolcs.

<< MaTeX`

Plot[x^2, {x, -10, 10}, AxesLabel -> MaTeX /@ {"\\text{$x$ axis}", "a/\\mathrm{GeV}^{-1}"}]

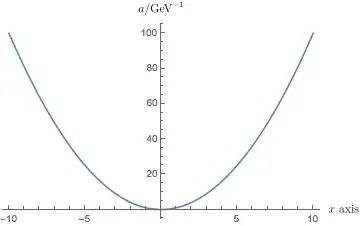

Mathematica graphics

edited Jul 30 '17 at 09:48

J. M.'s missing motivation

124,525
11
401
574

answered May 02 '17 at 14:14

zhk

11,939
1
22
38

1

Hope you don't mind the edit :-) (feel free to revert) – Szabolcs May 24 '17 at 10:33
@Szabolcs Of course not. Thanks for your corrections. – zhk May 24 '17 at 10:36

webcpu · Answer 2 · 2017-05-24T12:14:51.940

2

In:

label = Row[ {"a/Ge", Superscript["V", -1] }];
Plot[Sin[x], {x, 0, 2 Pi}, AxesLabel -> label]

Out:

Mathematica graphics

edited May 24 '17 at 12:14

answered May 24 '17 at 11:19

webcpu

3,182
12
17

The answer is updated according to your suggestion. :) – webcpu May 24 '17 at 12:16
