CloudDeploy not working for a Manipulate expression

Question

I have the following code:

size = 10;
g = GridGraph[{size, size}];

getEdges[w_] := #[[1]] -> #[[2]] & /@ Partition[w, 2, 1];
getPath[v_] :=
  getEdges[Join @@ FindShortestPath@g @@@ Partition[v, 2, 1]];

Iterate[s_, t_, 0] := getPath[{s, t}]
Iterate[s_, t_, n_] := Iterate[s, t, 0]

graphArrow[edge_] :=
 Arrow[{GraphEmbedding[g][[edge[[1]]]],
   GraphEmbedding[g][[edge[[2]]]]}]

M = Manipulate[
  HighlightGraph[g, {Style[Source, Blue], Style[Destination, Red]},
   VertexSize -> Medium,
   Epilog -> {Black, Arrowheads[.03],
     graphArrow /@ Iterate[Source,  Destination, n]}],
  {n, 0, 100, 1}, {Source, 1, 100, 1}, {Destination, 1, 100, 1}]

CloudDeploy[M]

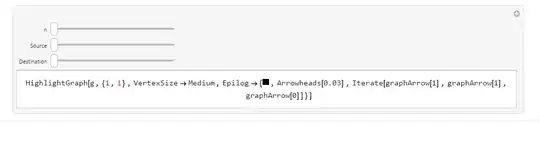

When attempting to use CloudDeploy on M I get a Manipulate expression with "code" inside of it, as follows:

How can I fix this?

The Cloud has worked for me using FormFunction instead of Manipulate, and making sure that the graphs are uploaded with CloudExport, if they are fixed, or generated as animated GIF with the last argument of FormFunction, if they have to depend on the final-user answers — MaTECmatica, May 13 '17 at 21:02

score 1 · Accepted Answer · answered May 13 '17 at 21:57

Here is a version using FormFunction[] instead of Manipulate[]. It is not perfect (the numbers are not shown in the output) but I guess is a good starting point

ff1 = FormFunction[
   {{"n", "Value of n:"} -> "Integer",
    {"Source", "Source id:"} -> "Integer",
    {"Destination", "Destination id:"} -> "Integer"
    },
   Function[
    size = 10;
    g = GridGraph[{size, size}];
    getEdges[w_] := (#[[1]] -> #[[2]] &) /@ Partition[w, 2, 1];
    getPath[v_] :=
     getEdges[Join @@ FindShortestPath@g @@@ Partition[v, 2, 1]];
    Iterate[s_, t_, 0] := getPath[{s, t}];
    Iterate[s_, t_, n_] := Iterate[s, t, 0];
    graphArrow[edge_] :=
     Arrow[{GraphEmbedding[g][[edge[[1]]]],
       GraphEmbedding[g][[edge[[2]]]]}];
    HighlightGraph[
     g, {Style[#Source, Blue], Style[#Destination, Red]},
     VertexSize -> Medium,
     Epilog -> {Black, Arrowheads[.03],
       graphArrow /@ Iterate[#Source, #Destination, #n]}]
    ],
   "GIF",
   AppearanceRules ->
    <|"Title" ->
      "https://mathematica.stackexchange.com/questions/145963",
     "Description" -> "José Luis Gómez-Muñoz"|>
   ];
CloudDeploy[ff1, Permissions -> "Public"]

Here is the link: https://www.wolframcloud.com/objects/a3158299-9111-42ba-af80-83646f6f522b Hope that helps

Thanks! It works well, though I am disappointed CloudDeploy seems to be bugged — aellab, May 14 '17 at 00:04

score 1 · Answer 2 · answered May 20 '20 at 06:33

Just add SaveDefinitions->True in your manipulate function and it should work. The reason your version doesn't work is because the definition for "g" is not carried over to the clouddeploy"ed" object. Here is the version that worked for me:

size = 10;
g = GridGraph[{size, size}];

getEdges[w_] := #[[1]] -> #[[2]] & /@ Partition[w, 2, 1];
getPath[v_] :=
  getEdges[Join @@ FindShortestPath@g @@@ Partition[v, 2, 1]];

Iterate[s_, t_, 0] := getPath[{s, t}]
Iterate[s_, t_, n_] := Iterate[s, t, 0]

graphArrow[edge_] :=
 Arrow[{GraphEmbedding[g][[edge[[1]]]],
   GraphEmbedding[g][[edge[[2]]]]}]

M = Manipulate[
  HighlightGraph[g, {Style[Source, Blue], Style[Destination, Red]},
   VertexSize -> Medium,
   Epilog -> {Black, Arrowheads[.03],
     graphArrow /@ Iterate[Source, Destination, n]}], {n, 0, 100,
   1}, {Source, 1, 100, 1}, {Destination, 1, 100, 1},
  SaveDefinitions -> True]
CloudDeploy[M]
```
