Inserting additional values into a plot after it has been rendered

Question

I have made this nice figure in Mathematica:

Now I want to add the values from my text file mytextfile to a plot which I already rendered.

Is there any function I can use to add the a list of values to my already created plot?

Look up Import[], ListPlot[], and Show[]. – J. M.'s missing motivation May 29 '17 at 20:31 — J. M.'s missing motivation, May 29 '17 at 20:31
Question has some similarity to 149131. – bbgodfrey Jul 30 '17 at 04:16 — bbgodfrey, Jul 30 '17 at 04:16

score 1 · Answer 1 · answered May 30 '17 at 13:44

Assume that you have your plot made.

Mathematica graphics

Click in the plot and copy it (ctrl-C).

Start a new cell in your notebook and type:

plot =

and then paste (ctrl-V) the plot to the right of the equal sign

Mathematica graphics

Now the symbol plot will represent the image.

To plot them together with your data use Show.

Show[
 ListPlot[data, PlotStyle -> Black],
 plot
 ]

Mathematica graphics

Side note: If you are creating the plot make the assignment to plot when you create it. For example:

plot = Plot[fun[x], {x, 0, 3}, PlotStyle -> Red]

score 0 · Answer 2 · answered May 29 '17 at 20:35

0

In[1]:

SeedRandom[1]
points = RandomInteger[100, {100, 2}];
Dynamic@ListPlot[points]

Out[1]:

Mathematica graphics

In[2]:

newPoints = RandomInteger[100, {50, 2}];
points = Join[points, newPoints];

Out[1]:

Mathematica graphics

answered May 29 '17 at 20:35

webcpu

3,182
12
17

"[...] to my already created graph" – Kuba May 29 '17 at 20:37
I am not sure if they are the same person or in a same team. At least I have answered it once. The new question is how to update the plot but not how to import data from a text file. https://mathematica.stackexchange.com/questions/147082/plot-from-following-inputs/147084#147084 – webcpu May 29 '17 at 20:46

score 0 · Answer 3 · answered Jul 30 '17 at 04:25

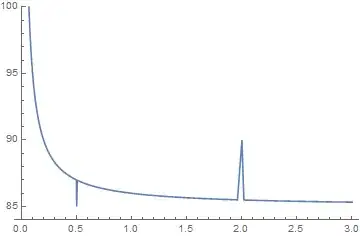

If, instead, adding points to an existing curve is desired (which is how I originally interpreted the question), do the following. For instance, with the plot

plt = Plot[85 + 1/x, {x, 0, 3}, PlotRange -> {84, 100}]

add points (chosen somewhat randomly, so that they stand out)

newpts = {{.5, 85}, {2., 90.}};
plt /. Line[z_] -> Line[Sort[Join[pts, newpts]]]
