Cross plot markers in a ListPlot?

Question

How can I obtain crosses as plot markers in a ListPlot?

I know how to obtain circles, disks, squares, using Graphics, like PlotMarkers -> {Graphics[{Red, Thick, Disk[]}, ImageSize -> 10]}. But I can't think of any way to obtain a cross this way, other than actually drawing the cross, which seems overkill. Is there a simpler way? I just need some advice on the best way to do this without too much work.

@Ruud3.1415 Nice! That works. To get some more fine control, you can do something like PlotMarkers -> Graphics[{Black, FontSize -> 20, Text["+"]}] — a06e, Sep 06 '17 at 13:01

score 10 · Accepted Answer · answered Aug 31 '18 at 08:16

10

Using PlotMarkers -> "+" is not a good solution, because the text is aligned with its foot at the point, not the centre of the cross.

If you want the centre of the cross to have a precise position in the plot, you can use:

cross = Graphics[{Line[{{-1,0},{1,0}}], Line[{{0,-1},{0,1}}]}]
ListPlot[data, PlotMarkers -> {cross,0.05}]

answered Aug 31 '18 at 08:16

Jan Stopka

116
1
2

Hi Jan, Welcome to Mma.SE. thanks for making your first contribution to Mma.SE. Be sure to take the [tour]. The site depends on participation, and I'm glad to see your first activity was to share what you have learned and give an answer. Your answer was flagged, as a new user, so I was checking everything was fine, and as it is, I can only welcome and thank you. (+1). – rhermans Aug 31 '18 at 08:28

Ruud3.1415 · Answer 2 · 2017-09-06T13:11:41.420

2

This would be a simple solution:

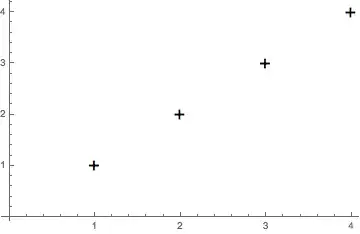

ListPlot[{1, 2, 3, 4}, PlotMarkers -> Style["+", {Black, FontSize -> 20}]]

edited Sep 06 '17 at 13:11

answered Sep 06 '17 at 13:07

Ruud3.1415

842
4
20

1

Alternatively: ListPlot[{1, 2, 3, 4}, PlotMarkers -> Style["✚", Medium]]. – J. M.'s missing motivation Sep 06 '17 at 13:09
@J.M. that would be a more aesthetic solution, I edited mine – Ruud3.1415 Sep 06 '17 at 13:12
