How can I set the gap between a frame label and the frame it labels?

Question

Consider the following code.

f[x_] := Sin[x];
Plot[f[x], {x, 0, 2*Pi},
  PlotRange -> {{0, 2*Pi}, {-2, 2}},
  Axes -> False, Frame -> True, FrameStyle -> Black,
  FrameLabel -> {Style["x", FontSize -> 18], Style["sin(x)", FontSize -> 18]},
  LabelStyle -> Directive[FontFamily -> "Times New Roman", 14],
  ImagePadding -> {{Automatic, 15}, {Automatic, 10}},
  FrameTicks -> {{{-2, 0, 2}, None}, {{0, \[Pi], 2 \[Pi]}, None}},
  FrameStyle -> Directive[Black, Thickness[0.003]],
  RotateLabel -> False]

I want to expand the gap between the frame label and the frame, namely the gap occupied by the red rectangle below.

score 3 · Accepted Answer · answered Sep 08 '17 at 04:02

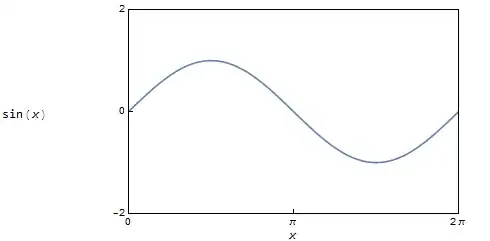

Use Spacings inside Labeled

Labeled[Plot[f[x], {x, 0, 2*Pi}, PlotRange -> {{0, 2*Pi}, {-2, 2}},
  Axes -> False, Frame -> True, FrameStyle -> Black,
  ImagePadding -> {{Automatic, 15}, {Automatic, 10}},
  FrameTicks -> {{{-2, 0, 2}, None}, {{0, \[Pi], 2 \[Pi]}, None}},
  FrameStyle -> Directive[Black, Thickness[0.003]],
  RotateLabel -> False],
 TraditionalForm /@ {Sin[x], x}, {Left, Bottom},
 Spacings -> {5, 0}]
