GraphicsGrid of plots with legends

Question

I use GraphicsGrid to get a table of contour plots, where each of the plots is using its own scaling, so I want to include the bar legend for each of the plots. But if I do this, GraphicsGrid seems to ignore the place needed for the legend when calculating the grid item size, and the plots are scaled larger then grid cells.

MWE:

GraphicsGrid@
 Table[ContourPlot[ Cos[x]/k + Cos[ m y], {x, 0, 4 Pi}, {y, 0, 4 Pi},
   ColorFunction -> "Rainbow", PlotLegends -> Automatic], {k, 1,
   2}, {m, 1, 2}]

Is there any better way to fix it rather then to set fixed plot size and to tune manually the ItemAspectRatio, like below?

GraphicsGrid[
 Table[ContourPlot[ Cos[x]/k + Cos[ m y], {x, 0, 4 Pi}, {y, 0, 4 Pi},
   ColorFunction -> "Rainbow", PlotLegends -> Automatic,
   ImageSize -> 100], {k, 1, 2}, {m, 1, 2}], ItemAspectRatio -> .6]

This is a known bug. I have added the tag 'bugs'. – m_goldberg Sep 08 '17 at 17:48 — m_goldberg, Sep 08 '17 at 17:48

score 3 · Accepted Answer · edited Jun 16 '20 at 09:23

3

It's a bug. I had a similar problem with GraphicsGrid, reported it, and received a reply from WRI tech support. I quote the relevant portion.

When you put the plots inside a GraphicsGrid, they are put inside individual insets. Unfortunately, there is a known issue with GraphicsGrid failing to determine the optimal size for graphics with insets.

So, I recommend you to avoid using plots along the GraphicsGrid.

Try Grid instead.

Grid @
  Table[
    ContourPlot[Cos[x]/k + Cos[m y], {x, 0, 4 Pi}, {y, 0, 4 Pi},
      ColorFunction -> "Rainbow", PlotLegends -> Automatic],
    {k, 1, 2}, {m, 1, 2}]

edited Jun 16 '20 at 09:23

Community

1

answered Sep 08 '17 at 17:47

m_goldberg

107,779
16
103
257

Thanks a lot! I would still prefer to use manual tuning because of not uniform heights of the bar legends with Grid method. – Oleg Soloviev Sep 08 '17 at 20:40

score 1 · Answer 2 · answered Apr 13 '19 at 13:33

One option is to rasterize the plots before using GraphicsGrid

GraphicsGrid[
 Table[Rasterize[
   ContourPlot[Cos[x]/k + Cos[m y], {x, 0, 4 Pi}, {y, 0, 4 Pi},
    ColorFunction -> "Rainbow", PlotLegends -> Automatic,
    ImageSize -> 300]], {k, 1, 2}, {m, 1, 2}]]

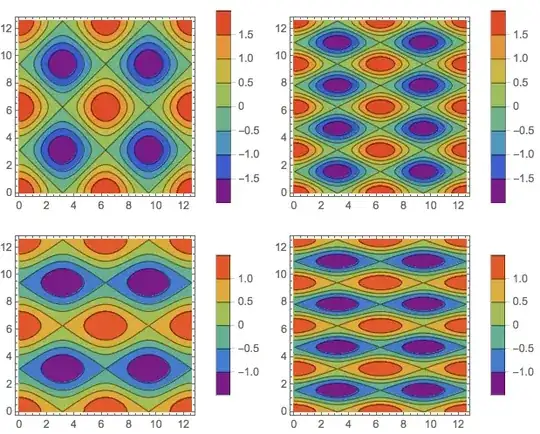

this will produce
