Equalizing the column widths in the rows below the title row of a grid

Question

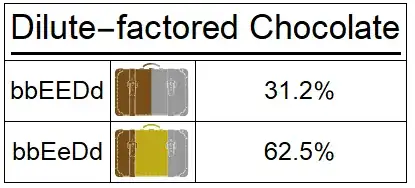

I have a grid I've created with the first row set up as the title to the grid. The problem I'm having is that when the title is wider than the following rows need to be, Mathematica extends the final column of the lower rows to be wider. I'd really like to tell it to space the lower rows evenly, but I can't seem to figure out how to do it. I've been fiddling around with ItemSize, but I just can't seem to land on the correct solution. I have included a code sample and the output I'm getting from it here.

With[
 {bbEEDdPercent = "31.2%", bbEeDdPercent = "62.5%"},
 f4g = x_String :> Style[Text[x], 25];
 Grid[{
   {Style[UnderBar[Text["Dilute-factored Chocolate"]], 35, Bold],
    SpanFromLeft}
   , {"bbEEDd" /. f4g, bbEEDdImage, bbEEDdPercent /. f4g}
   , {"bbEeDd" /. f4g, bbEeDdImage, bbEeDdPercent /. f4g}
   }, Alignment -> {Center, Center}, Frame -> All]]

Specify the ItemSize for the numeric cells, e.g., Item[bbEEDdPercent /. f4g, ItemSize -> {Scaled[.2], Automatic}]? — kglr, Dec 23 '17 at 18:31
or add ItemSize -> {{Scaled[.4], Scaled[.4]}, Automatic} after Frame->All in your posted code. — kglr, Dec 23 '17 at 18:56
Try using ImageSize->All, and possibly adjust the Spacings option as well. — Carl Woll, Dec 23 '17 at 19:15
@kglr, your second suggestion worked beautifully. I had to tweak the numbers a bit, but that's what I needed. Thanks so much! — kgrafton, Dec 23 '17 at 20:46

kglr · Accepted Answer · 2017-12-23T22:57:22.600

You can use option ItemSize in several ways.

With[{bbEEDdPercent = "31.2%", bbEeDdPercent = "62.5%"},
 f4g = x_String :> Style[Text[x], 25];
 Grid[{{Style[UnderBar[Text["Dilute-factored Chocolate"]], 35, Bold],
    SpanFromLeft}, {"bbEEDd" /. f4g, bbEEDdImage,
    bbEEDdPercent /. f4g}, {"bbEeDd" /. f4g, bbEeDdImage,
    bbEeDdPercent /. f4g}},
  Alignment -> {Center, Center}, Frame -> All,
  ItemSize -> {{3 -> Scaled[.1]}}]]

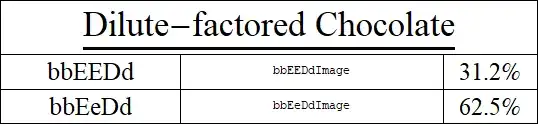

ItemSize -> {{3 -> 6}} gives

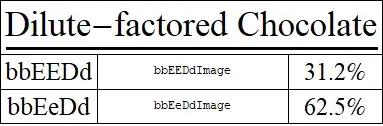

ItemSize -> {{1 -> 12, 2 -> 10}} gives

Note: Somehow, in version 9, specifying item sizes for all three columns doesn't give the expected result. However if you modify the first gird entry to

Style[UnderBar[Text["Dilute-factored Chocolate"]], 35, Bold, LineBreakWithin -> False]

then you can use a setting like {{Scaled[.2], Scaled[.3], Scaled[.1]}} to get the desired result:

I ended up using ItemSize->{{3->6}} and LineBreakWithin->False and the combination of these two fixed my issue. I'll need to do some more reading on why that worked in case I ever have the problem again. Thank you so much! — kgrafton, Dec 27 '17 at 18:14

score 3 · Answer 2 · answered Dec 24 '17 at 21:24

The documentation says ItemSize -> All makes all the columns evenly spaced. Use this for the column size.

With[
 {
  bbEEDdPercent = "31.2%",
  bbEeDdPercent = "62.5%"
  },
 f4g = x_String :> Style[Text[x], 25];

 Grid[{
   {
    Style[UnderBar[Text["Dilute-factored Chocolate"]], 35, Bold],
    SpanFromLeft, SpanFromLeft
    },
   {"bbEEDd" /. f4g, bbEEDdImage,
    bbEEDdPercent /. f4g}, {"bbEeDd" /. f4g, bbEeDdImage,
    bbEeDdPercent /. f4g}
   },
  Alignment -> {Center, Center},
  Frame -> All,
  ItemSize -> {All, Automatic}
  ]
 ]
