Issue with a Manipulate expression for showing points sets and the alpha shape enclosing them

Question

I am using the alphaShapes2DC function from this post. It is a module which contains a Quiet operation. DelaunayMesh in a specified closed region - creating a concave hull from a set of points

I have a list containing 14 lists of 2d-points

prjs = {{{0, 1}, {1, 2}, {5, 1}}, {{2,2}}, ..., {{1, 5}, {6, 5}, {3, 5}}}

with some sublists containing only one element and some duplicates so that the alphaShapes2DC function cannot run on such sublists.

I want to create a Manipulate function to display several sublists (with their polygon) at the same time.

Manipulate[
  If[Length @ prjs[[i]] > 2,
     Show[
       ListPlot[prjs[[i]],
         Joined -> False, PlotStyle -> ColorData[97, "ColorList"][[i]]],
       RegionPlot[Evaluate[alphaShapes2DC[DeleteDuplicates @ prjs[[i]], 6]],
         PlotStyle -> {ColorData[97, "ColorList"][[i]], Opacity@.2},
         BoundaryStyle -> {ColorData[97, "ColorList"][[i]], Thin},
         PlotRange -> All], PlotRange -> {{-15, 10}, {-10, 10}}],
       ListPlot[prjs[[i]],
         Joined -> False,
         PlotStyle -> ColorData[97, "ColorList"][[i]],
         PlotRange -> {{-15, 10}, {-20, 20}}]],
  {{i, 1}, Range @ Length @ prjs},
    ContinuousAction -> True, ControlType -> TogglerBar]

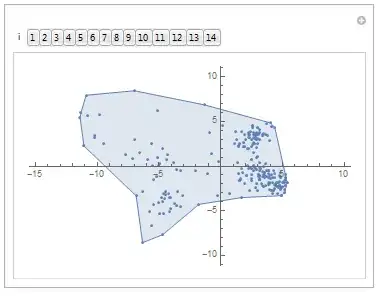

Running this code first shows what I want.

But it turns bad when I click on a number in the bar — the polygon disappears.

score 2 · Accepted Answer · edited Jun 16 '20 at 09:23

2

Revision

First I contrive some test data since you did't provide any,

SeedRandom[3];
Block[{size},
  size := RandomInteger[{1, 20}];
  pts = RandomInteger[{1, 10}, {#, 2}] & /@ Table[size, 14]];

Now I generate lists for the items that will be plotted according to the buttons pressed on the toggler bar.

hullPlots =
  Table[
    If[Length @ pts[[i]] > 2,
      RegionPlot[ConvexHullMesh[pts[[i]]],
        PlotStyle -> {ColorData[97][i], Opacity @ .2},
        BoundaryStyle -> {ColorData[97][i], Thin}],
      Graphics[]],
    {i, Length @ pts}];
ptPlots =
  Table[ListPlot[pts[[i]], PlotStyle -> ColorData[97][i]], {i, Length @ pts}];

Finally I write a Manpulate expression with a toggler bar control. The important thing to note about a toggler bar is that it returns a list of the buttons currently pressed.

DynamicModule[{hulls, pts},
  Manipulate[
    hulls = hullPlots[[selctn]];
    pts = ptPlots[[selctn]];
    Show[##, AxesOrigin -> {0, 0}, PlotRange -> {{0, 10}, {0, 10}}] & @@
      Join[hulls, pts],
    {{selctn, {1}, "i"}, Range @ Length @ ptPlots, TogglerBar}]]

The Manpulate expression comes up looking like this.

And here is what it might look like with several buttons pressed.

Note: If there are problems with alphaShapes2DC, I think that is an issue for a separate question, and I don't want to deal with it. That is why I used ConvexHullMesh instead.

BTW, if you would prefer all the points to always be displayed, that can be done with even simpler code. Like so.

DynamicModule[{hulls, pts},
  Manipulate[
    hulls = hullPlots[[selctn]];
    Show[##, AxesOrigin -> {0, 0}, PlotRange -> {{0, 10}, {0, 10}}] & @@
      Join[hulls, ptPlots],
    {{selctn, {1}, "i"}, Range @ Length @ ptPlots, TogglerBar}]]

edited Jun 16 '20 at 09:23

Community

1

answered Feb 11 '18 at 06:45

m_goldberg

107,779
16
103
257

Dear m_goldberg. Thanks for your answer but unfortunately it does not work as I need. I need a TogglerBar to display several sublists at the same time (my code was already working with a SetterBar). I took your code and change to TogglerBar and I get exactly the same issue : selecting one sublist make the polygon disappear and selecting two or more sublists is leading to a RegionPlot crash. – Porty Feb 12 '18 at 06:42
Based on your code, I try to run this simplest one with a TogglerBar and don't understand why it does not work : SeedRandom[3]; Block[{size}, size := RandomInteger[{10, 20}]; pts = RandomInteger[{1, 10}, {#, 2}] & /@ Table[size, 14]]; Manipulate[ Show[ListPlot[pts[[i]]], RegionPlot[ConvexHullMesh[pts[[i]]]]], {{i, 1}, Range@Length@pts, TogglerBar}] – Porty Feb 12 '18 at 07:20
I just want to do something like this : https://mathematica.stackexchange.com/questions/71718/toggle-plot-visibility-of-dynamic-number-of-data-sets/71722#71722 – Porty Feb 12 '18 at 07:23
Even this one does not work : SeedRandom[3]; Block[{size}, size := RandomInteger[{10, 20}]; pts = RandomInteger[{1, 10}, {#, 2}] & /@ Table[size, 14]]; Manipulate[ ConvexHullMesh@pts[[i]], {{i, 1}, Range@Length@pts, TogglerBar}] while it works with replacing ConvexHullMesh by ListPlot – Porty Feb 12 '18 at 07:33
@Porty. I have revised my answer to use a toggler bar. I hope it is now gives you a framework that you can use to work with alphaShapes2DC. – m_goldberg Feb 12 '18 at 18:38
Perfect. Works great! – Porty Feb 14 '18 at 13:31
