I have a figure obtained from ParametricPlot, which is relatively costly to obtain.

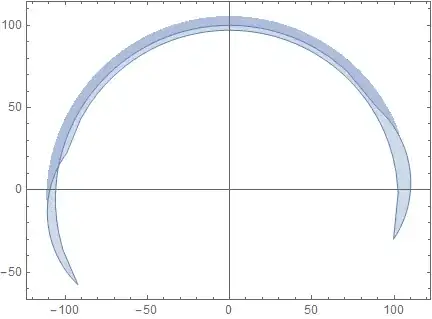

For example:

enter image description here

I would like to offset the picture in terms of a parameter, for example x1, so that the figure is drawn at (x1, 0) instead of at (0, 0). In other words, I would like to apply a transformation consisting of a slide over the X axis.

I have tried with Translate and GeometricTransformation but it does not seem to work on plot outputs.

Is this possible?

Guillermo Oliver
  • 459
  • 2
  • 11

1 Answers1

0

You have the output of your plot, and you want to modify the coordinates without replotting. You can do this easily when you realize the output from any Plot function will be a Graphics object that you can manipulate like any other expression.

For this case, we can use ReplaceAll to replace any coordinate pair of real numbers with a transformed version of it.

plot = RegionPlot[
   x^2 + y^3 < 2 && x + y < 1, {x, -2, 2}, {y, -2, 2}];
tfunc = TranslationTransform[{5, 5}];
plot2 = Show[
   plot /. pt : {x_Real, y_Real} :> tfunc@pt,
   PlotRange -> {{3, 7}, {3, 7}}
   ];
{plot, plot2}

enter image description here

ReplaceAll is a blunt instrument, it replaces any occurrence of its pattern, so this could lead to unwanted side effects by replacing pairs of real numbers that don't represent a coordinate pair. But in most cases this works fine.

Jason B.
  • 68,381
  • 3
  • 139
  • 286
  • 2
    Since ParametricPlot[], RegionPlot[], and ilk produce a GraphicsComplex[] object, the safe way is to apply your transformations to that, e.g. Show[plot /. GraphicsComplex[pts_, rest__] :> GraphicsComplex[TranslationTransform[{5, 5}][pts], rest], PlotRange -> {{3, 7}, {3, 7}}] – J. M.'s missing motivation Mar 26 '18 at 13:48
