How to create a checkerboard pattern?

Question

I would like to write a generalized function to create a checkerboard pattern of any size (width of each square and frequency of repetition).

How can I do so?

Edit 1

This is what I tried.

check = ConstantArray[0, {256, 256}];
Table[Table[check[[k, l]] = 255, {k, i, i + 8}, {l, j, j + 8}], {i, 1,
   256, 16}, {j, 1, 256, 16}]

Graphics@Table[{GrayLevel@Mod[x + y, 2], Rectangle[{x, y}]}, {x, 0, 10}, {y, 0, 10}] - then you can use Translate, Scale and Rotate to manipulate it as a graphics object. — kirma, Apr 05 '18 at 11:34
Have you seen https://mathematica.stackexchange.com/questions/58690/how-to-build-a-game-board — OkkesDulgerci, Apr 05 '18 at 12:49
Many MSE answers to this question exist. For example, see https://mathematica.stackexchange.com/search?q=chess+board. — Anton Antonov, Apr 05 '18 at 15:01

Henrik Schumacher · Answer 1 · 2018-04-05T11:59:52.553

3

a = 2;
n = 4;
x0 = 0;
y0 = 0;
g = Graphics[
  Outer[{
    RGBColor[{1, 1, 1} Mod[Plus[##], 2]],
    Rectangle[{x0, y0} + a List[##], {x0 + a, y0 + a} + a List[##]]
    } &,
  Range[0, (n - 1)],
  Range[0, (n - 1)],
  1
  ],
  PlotRangePadding -> None
 ]

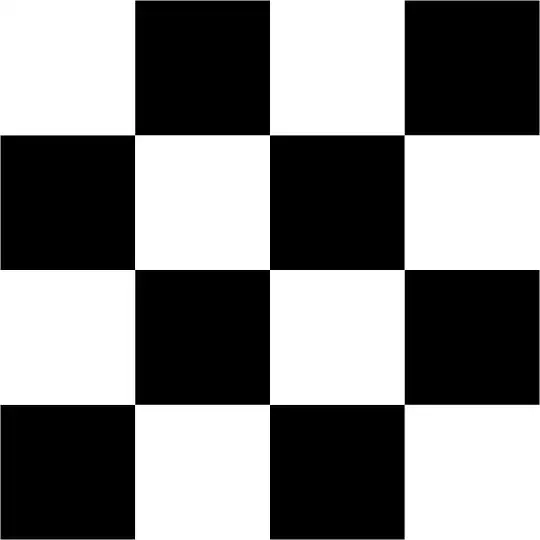

You can apply Rasterize to obtain an image. Or you can use something like

Image@ArrayResample[
  Outer[
   N@Mod[Plus[##], 2] &,
   Range[0, n - 1],
   Range[0, n - 1]
   ],
  {400, 400}, "Bin", Antialiasing -> False, Resampling -> "Constant"]

edited Apr 05 '18 at 11:59

answered Apr 05 '18 at 10:19

Henrik Schumacher

106,770
7
179
309

Thanks for your answer. However, this is a Graphics object and I want an image. Secondly, there is a white border around the texture, which I don't want. – user36426 Apr 05 '18 at 11:32
2

@Majis, However you do not have requested an image in your statement. As a starting point is useful. I am sure you will be able to create an image from the graphic object... – José Antonio Díaz Navas Apr 05 '18 at 11:54

bill s · Answer 2 · 2018-09-26T23:32:53.907

3

Specify n and m (number of blocks desired) and the overall ImagSize. This creates two sequences of +/-1's and then plots the Outer product of the two:

n = 5; m = 7;
Image[Outer[Times, (-1)^Range[n], (-1)^Range[m]], ImageSize -> 500]

edited Sep 26 '18 at 23:32

answered Sep 26 '18 at 22:35

bill s

68,936
4
101
191

Clever. I like it. – b3m2a1 Sep 26 '18 at 23:17

score 2 · Answer 3 · answered Sep 26 '18 at 09:12

I needed to to this as part of an upcoming project. The context was in the visualization of complex mappings, which is why the following code uses complex numbers:

(* adapted from https://mathematica.stackexchange.com/a/7359 *)
complexGrid = Compile[{{xmin, _Real}, {xmax, _Real}, {xn, _Integer},
                       {ymin, _Real}, {ymax, _Real}, {yn, _Integer}},
                      Block[{rx, ry},
                            rx = xmin + (xmax - xmin) Range[0, xn - 1]/(xn - 1);
                            ry = ymin + (ymax - ymin) Range[yn - 1, 0, -1]/(yn - 1);
                            Outer[Plus, I ry, rx]]];

complex2bw = Compile[{{Z, _Complex}, {sp, _Real}},
                     Mod[Round[Mod[Im[Z]/(2 sp), 1]] + Round[Mod[Re[Z]/(2 sp), 1]], 2],
                     RuntimeAttributes -> {Listable}];

and thus,

Image[complex2bw[complexGrid[-4, 4, 500, -2, 2, 250], 1/2]]

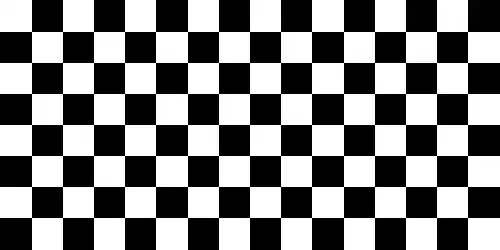

checkerboard

yields a $500\times 200$ checkerboard image.

Change the spacing parameter:

Image[complex2bw[complexGrid[-4, 4, 500, -2, 2, 250], 2]]

checkerboard again

score 1 · Answer 4 · answered Apr 05 '18 at 12:01

This is a way to design the checkerboard pattern I need.

Manipulate[
 check = ConstantArray[0, {nrow, ncol}];
 Table[check[[i, j]] = Mod[i + j, 2], {i, 1, nrow, 1}, {j, 1, ncol,
   1}];
 ImageResize[Image[check], {height, width}], {nrow, 1, height,
  1}, {ncol, 1, width, 1}, {height, 1, 512, 1}, {width, 1, 512, 1}]

kglr · Answer 5 · 2018-09-27T01:47:57.727

You can specify the size of each cell using ImageSize-> 1 -> s:

board = Image[Raster[(-1)^Array[+##&, {#, #2}]], ImageSize-> 1 -> #3] &;

The overall size of board[r, c, s] with r rows, c columns (r c cells each of size s) is {c s, r s}:

board[7, 11, 20]// Rasterize[#, "RasterSize"]&

{220, 140}

board[7, 11, 20]

board[7, 11, 50]// Rasterize[#, "RasterSize"]&

{550, 350}

board[7, 11, 50]

Note: See this answer by rm-rf regarding the usage ImageSize -> 1 -> s.
