Although there exists this question with an answer I am not able to adopt it to my problem.

I have a 1d Langevin euqation which I solve with NDSolve.

How can I plot the derivative of the solution (see the plot below).

Here is my code:

m = 6.137*10^-13;
k = 1.5*m;
stddev = Sqrt[2*k]*Sqrt[m];
whiteNoise = WhiteNoiseProcess[stddev];
randomForce[t_Real] := RandomVariate[whiteNoise[t]];

SeedRandom[1];
s = NDSolve[
   {m*x''[t] + k*x'[t] - randomForce[t] == 0, x[0] == 0, x'[0] == 0}
   , x[t], {t, 0, 50}
   , StartingStepSize -> 10^-3
   , Method -> {"FixedStep", Method -> "ExplicitEuler"
     }
   , MaxSteps -> Infinity
   ];

Plot[x[t] /. s, {t, 0, 50}]

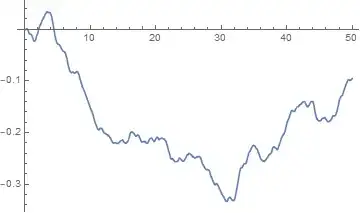

enter image description here

I want to plot x'[t] vs. t.

mrz
  • 11,686
  • 2
  • 25
  • 81

1 Answers1

1
s = NDSolve[{(m*x''[t] + k*x'[t] - randomForce[t]) == 0, x[0] == 0,
    x'[0] == 0}, x, {t, 0, 50}, StartingStepSize -> 10^-3,
   Method -> {"FixedStep", Method -> "ExplicitEuler"},
   MaxSteps -> Infinity];

Plot[Evaluate[x'[t] /. s], {t, 0, 50}]

enter image description here

zhk
  • 11,939
  • 1
  • 22
  • 38
  • Great ... so the mistake is that I wrote in NDSolve: x[t] instead of x. The I can write also: Plot[x'[t] /. s, {t, 0, 50}] – mrz Apr 06 '18 at 16:13
  • @Lenoil Yes, that's with you needed to do. – zhk Apr 06 '18 at 16:21
