How to increase dash length in DotDashed

Question

How can I modify the usual curve style DotDashed such that the length of the dashed portion is increased or is controllable? For example in

Plot[Sin[x],{x,0,6.25},PlotStyle-> DotDashed]

Answer 1

Dotted, Dashed, and DotDashed all evaluate as they are shorthand for a full Dashing specification. For example,

In[5]:= DotDashed
(*Out[5]= Dashing[{0, Small, Small, Small}]*)

where each element in the List represents a segment. They come in pairs: line length followed by space length. So, for DotDashed there is a 0 length line (the dot) followed by a Small space, and a Small line followed by a Small space. If you want to manipulate the dash length, just change its element in the List:

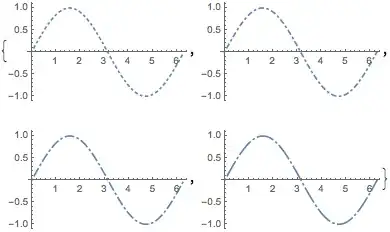

Table[
 Plot[Sin[x], {x, 0, 2 Pi}, PlotStyle -> Dashing[{0, Small, d, Small}]],
 {d, {Tiny, Small, Medium, Large}}
]

Other explorations can be found here.
