What is the easiest way to get truth table of logical expression?

Question

I remember that some time ago when I entered a logical expression like $a\wedge b$ in the notebook there was an option (button or menu selection or etc.) to click and generate truth table for it without any programming. I don't remember where that option located. Can anybody please help me find it?

BooleanTable? Also Create Truth Tables and Truth Table on mathworld. — corey979, Aug 16 '18 at 11:13
@corey979 Where BooleanTable is exactly located? Where to click? — vasili111, Aug 16 '18 at 11:15
What do you mean where to click? It's usage is described in the docs, in the given link. — corey979, Aug 16 '18 at 11:16
@corey979 Ohh. I see. But I remember that there was some option that right after I type boolean expression there was a button to click to generate truth tables without using any additional code. Do you know how to do that? — vasili111, Aug 16 '18 at 11:20
@No. I just typed logical expression and there was somewhere a button (or menu selection or etc.) that I click and got truth table. It was very convenient. — vasili111, Aug 16 '18 at 11:29

score 3 · Accepted Answer · edited Aug 16 '18 at 12:01

3

The easiest way to create a truth table for expression in Notebook:

Type expression. For example, $a\wedge b$
Press Shift+Enter

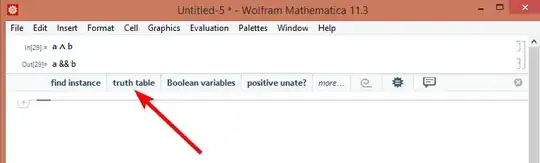

In the suggestion bar press truth table

Original answer:

Not worth enabling it (*) for that but it's a suggestion bar that you are looking for:

(*) Don't leave the Suggestions Bar enabled

edited Aug 16 '18 at 12:01

vasili111

1,215
8
13

answered Aug 16 '18 at 11:45

Kuba

136,707
13
279
740

Yes. It is what I am looking for. Thank you. I will edit your post to describe how to calculate truth table that way step by step. – vasili111 Aug 16 '18 at 11:48
By the way, why it does not worth to be enabled? – vasili111 Aug 16 '18 at 11:49
@vasili111 source added. – Kuba Aug 16 '18 at 11:51
