Detect and fix invalid polygon

Question

I have a polygon given by

poly = Polygon[
  {{2437.21, 166.705}, {2437.38,166.856}, {2440.37,163.438}, {2435.84,159.581},
   {2442.18,152.113}, {2431.45,142.989}, {2420.63,153.885}, {2428.72,160.067},
   {2418.95,168.237}, {2435.2,183.216}, {2446.11,174.504}, {2437.21,166.705}}]

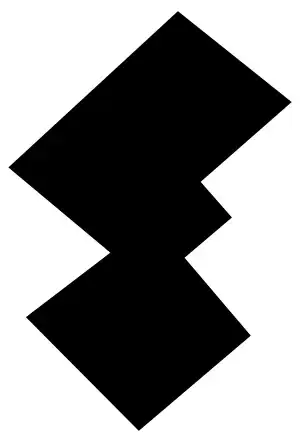

which looks good when rendered:

Graphics[poly]

However, this shape cannot be used for Region-related operations as it is "ill-defined" with an interior line:

Graphics[
    {
    FaceForm[None], EdgeForm[Black], poly,
    Red, PointSize[Medium], Point@@poly
    },
    Frame->True
]

whose zoomed-in view is like this:

Graphics[
    {
    FaceForm[None], EdgeForm[Black], poly,
    Red, PointSize[Medium], Point@@poly
    },
    Frame->True,
    PlotRange->{{2437, 2438}, {166, 168}},
    PlotRangeClipping->True
]

My question is: How can I detect such "ill-defined" polygons and fix them?

Edit:

As more people are concerning about the definition of a valid polygon, I just cite that used by the python package shapely here:

Rings of a valid Polygon may not cross each other, but may touch at a single point only.

Also, I have very little expertise in computational geometry; my intention was to use Region-related functions (e.g., RegionMeasure) with these polygons, where I came across the kernel crash and then discovered such "ill-defined" polygons.

a simpler example: poly = Polygon@{{3, 3}/2, {3, 3}, {0,1}, {3, 1}, {2, 2},{3, 3}/2 };? — kglr, Sep 05 '18 at 15:03
What does fixing mean? Possibly removing regions which can be removed without changing the area of the polygon? — kirma, Sep 05 '18 at 16:36
@kglr Frankly, your polygon is twice ill-defined, as is the one in the question: you don't need to repeat the starting point as the last point. — kirma, Sep 05 '18 at 16:52
@kirma, right. The last point is added to have a structure similar to the polygon in the question. — kglr, Sep 05 '18 at 16:56
@kglr Oh, sure. I must say this problem still requires a some improvement on the definition of what is ill-defined in practice... your polygon is evil, but the one in question with real-valued coordinates is more fuzzy in this regard! — kirma, Sep 05 '18 at 17:05
Is it acceptable to round all nodes do some fixed precision, and then remove the duplicates? — Johu, Sep 05 '18 at 17:45

score 6 · Accepted Answer · answered Sep 08 '18 at 06:03

I expect there's a simpler way to do this, but here is a possibility. FIrst, discretize the polygon, and then find the boundary:

boundary = RegionBoundary @ DiscretizeRegion @ poly

Simplify the boundary using an undocumented, internal function:

boundary = Region`Mesh`MergeCells @ boundary

Notice the defect is gone. Convert the output to a BoundaryMesh and extract the polygon:

simple = MeshPrimitives[
    BoundaryMeshRegion[MeshCoordinates[boundary], MeshCells[boundary, 1]],
    2
]

{Polygon[{{2440.37, 163.438}, {2437.38, 166.855}, {2446.11, 174.504}, {2435.2, 183.216}, {2418.95, 168.237}, {2428.72, 160.067}, {2420.63, 153.885}, {2431.45, 142.989}, {2442.18, 152.113}, {2435.84, 159.581}}]}

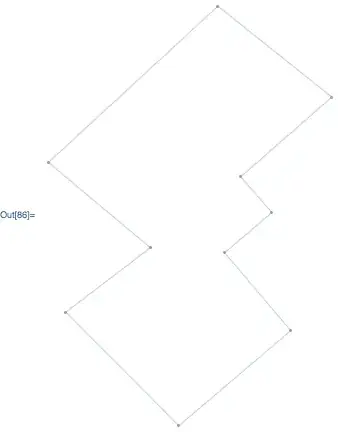

The fixed polygon:

Graphics[{FaceForm[None], EdgeForm[Black], simple}]

And finally, here are the above steps packages as a function:

fixPolygon[poly_Polygon] := With[
    {boundary = Region`Mesh`MergeCells @ RegionBoundary @ DiscretizeRegion @ poly},

    MeshPrimitives[
        BoundaryMeshRegion[MeshCoordinates[boundary], MeshCells[boundary, 1]],
        2
    ]
]

Another example using a polygon from the comments:

fixPolygon @ Polygon @ {{3, 3}/2, {3, 3}, {0,1}, {3, 1}, {2, 2},{3, 3}/2}

{Polygon[{{3., 3.}, {0., 1.}, {3., 1.}, {2., 2.}}]}

nice use of DiscretizeRegion! Brilliant! – sunt05 Sep 08 '18 at 07:01 — sunt05, Sep 08 '18 at 07:01

score 0 · Answer 2 · answered Sep 06 '18 at 23:39

0

Just remove the last point, the polygon closes itself:

Region @ Polygon @ Most @ p

answered Sep 06 '18 at 23:39

user5601

3,573
2
24
56
