DirectedEdge character doesn't appear when Save As HTML

Asked Oct 22 '18 at 13:09

Active Oct 22 '18 at 13:09

Viewed 35 times

The \[DirectedEdge] character doesn't appear when I save a notebook as HTML.

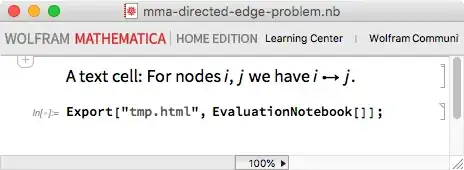

Here's the notebook, which saves itself to HTML:

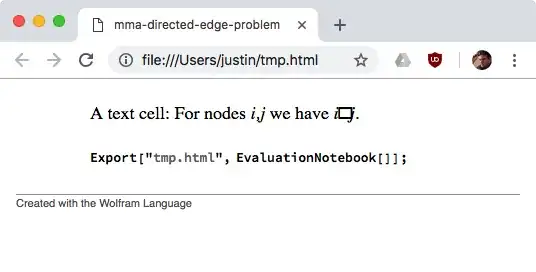

Here's the HTML:

In the HTML, the \[DirectedEdge] is encoded as , which unicodelookup.com doesn't recognize , but which Mathematica does:

FromCharacterCode[62421] // CharacterName
(* DirectedEdge *)

I have also tried adding the option "CSS" -> "mma.css" to the Export command.

asked Oct 22 '18 at 13:09

ConvexMartian

2

You need to link in the fonts somehow, which means linking in WRIs style sheet where they’re defined. I just always programmatically post-process, personally. – b3m2a1 Oct 22 '18 at 16:17
@b3m2a1, thanks. Can you explain? Do I need to link a MMA style sheet into my MMA notebook, or do you mean copying some CSS from a WRI CSS stylesheet into the CSS file generated after I "save as HTML"? Could you briefly describe how you post-process it? – ConvexMartian Oct 23 '18 at 03:52
The latter. I just use string replace to insert into the generated file. I think I posted about this on meta somewhere... – b3m2a1 Oct 23 '18 at 04:07
Thanks. In your SE post here you link to your MMA tutorial that uses the \[Wolf] character by linking to a WRI CSS file special-styles.css and using the prettify JavaScript. – ConvexMartian Oct 23 '18 at 13:37

0 Answers0
