How can I make the output from Solve look nice?

Question

I have a problem with presenting solutions. Roots of 4th order polynomials are big expressions. Is there a way to present the roots, s2 and s3, in normal form with some substitutions? Maybe a way to force Mathematica to find some similar terms under the radicals and replace them with substitutions (to factorize or simplify that way), so s2 and s3 are presented in a way that looks nice?

a1 = Roots[x^4 + r1 x^3 + r2 x^2 + r3 x + r4 == 0, x][[1]][[2]];
a2 = Roots[x^4 + r1 x^3 + r2 x^2 + r3 x + r4 == 0, x][[2]][[2]];
a3 = (-s2 - Sqrt[s2^2 - 4  s3])/2 ;
a4 = (-s2 + Sqrt[s2^2 - 4  s3])/2 ;

Solve[{a1 - a3 == 0, a2 - a4 == 0}, {s2, s3}]

Answer 1

First, set the option of Roots so that it doesn't expand quartics. Optionally, define a Format for Root.

SetOptions[Roots, Quartics -> False];
Unprotect[Root];
Format[Root[func_, v_], StandardForm] := Row[{"eq", "(", v, ")"}];
Protect[Root];
a1 = Roots[x^4 + r1 x^3 + r2 x^2 + r3 x + r4 == 0, x][[1]][[2]];
a2 = Roots[x^4 + r1 x^3 + r2 x^2 + r3 x + r4 == 0, x][[2]][[2]];
a3 = (-s2 - Sqrt[s2^2 - 4 s3])/2;
a4 = (-s2 + Sqrt[s2^2 - 4 s3])/2;
Solve[{a1 - a3 == 0, a2 - a4 == 0}, {s2, s3}]

---

Addendum

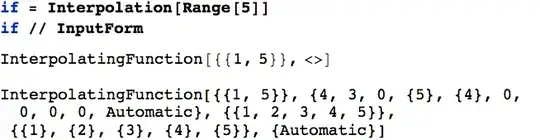

As I understood the question, you hope to simplify the display of a very complicated expression. A common way to do that is to define a Format for the expression. Common examples built in are InterpolatingFunctions and SparseArrays. For example:

The first output is the formatted expression, simply letting you know that this is an InterpolatingFunction. The second is the actual expression; it's not particularly readable or informative, hence the formatted version. The InputForm represents the actual expression for pattern patching and other purposes. My response was intended to show you how to create this type of formatted ouput for your own expressions.

Reading your question and the other response more closely, I see you wish to "force Mathematica to find some similar terms under the radicals and replace them with substitutions". A built in tool to accomplish this is OptimizeExpression in the Experimental context. It's a bit tricky, but here's an example.

For convenience, we prepend two contexts to our $ContextPath.

$ContextPath = Join[{"Experimental`", "Compile`"},
  $ContextPath];

Here's a semi-complicated expression.

expr = x /. First[Solve[
  x^4 - x - 1 == 0, x
]]

Here's the optimized expression.

optExpr = OptimizeExpression[expr]

Note that the result is an OptimizedExpression containing a Block. The final statement of the Block refers to variables local to the block and those variables are themselves potentially complicated expressions. Here's the final statement for this example.

finalOptExpr = Extract[optExpr, {1, 2, -1}, HoldForm]

And here are the names of the variables used in this expression.

optSymbolQ[s_Symbol] := StringTake[ToString[s], 1] == "$";
finalVarNames = Union[ToString /@
  Cases[finalOptExpr, _Symbol?optSymbolQ, Infinity]]

(* Out: {"$11", "$5", "$7", "$9"} *)

Thus, the original complicated expression can be written in terms of these four symbols. Those symbols, in turn are the following.

Extract[optExpr, {1, 2}];
Column[# == ToExpression[#] & /@ finalVarNames]

Of course, these are defined in terms of previously defined variables - for example:

$2

Really, though, the point behind OptimizeExpression is to optimize the expression for numerical computation by collecting repetitive sub-parts so that they don't need to be repeatedly evauated. And I do think that there is a limit to how far this can, particuarly for something as complicated as your fourth degree with arbitrary coefficients.

Answer 2

Here's a semi-manual method of simplifying solutions by creating our own substitutions.

As a more manageable example, let's start with the solution to the cubic:

cube = Solve[a x^3 + b x^2 + c x + d == 0, x]

Here's just the first root (TeXForm[x /. cube[[1]]]):

$\frac{\sqrt[3]{\sqrt{\left(-27 a^2 d+9 a b c-2 b^3\right)^2+4 \left(3 a c-b^2\right)^3}-27 a^2 d+9 a b c-2 b^3}}{3 \sqrt[3]{2} a}-\frac{\sqrt[3]{2} \left(3 a c-b^2\right)}{3 a \sqrt[3]{\sqrt{\left(-27 a^2 d+9 a b c-2 b^3\right)^2+4 \left(3 a c-b^2\right)^3}-27 a^2 d+9 a b c-2 b^3}}-\frac{b}{3 a}$

We can create a list of each subexpression in our expression, i.e. branches in the expression tree:

Clear[branches];
branches[b_?AtomQ] := {};
branches[b_?NumericQ] := {};
branches[h_[b___]] := Flatten@Append[branches /@ List[b], h[b]];

It's quite long, so I won't list them all here:

branches[cube] // Length  (*  174  *)

We're probably interested in branches that are a sum of expressions:

Cases[branches[cube], x_ + y_] // Length  (*  30  *)

Let's tally up how common these are and pick out the ones that occur more than once:

TableForm[Reverse /@ Cases[Tally[Cases[branches[cube], x_ + y_]], {_, t_ /; t > 1}]]

• 9: $\ \ \ -b^2 + 3 a c$
• 6: $\ \ \ -2 b^3 + 9 a b c - 27 a^2 d$
• 6: $\ \ \ \left(-27 a^2 d+9 a b c-2 b^3\right)^2+4 \left(3 a c-b^2\right)^3$
• 6: $\ \ \ \sqrt{\left(-27 a^2 d+9 a b c-2 b^3\right)^2+4 \left(3 a c-b^2\right)^3}-27 a^2 d+9 a b c-2 b^3$

We can now make some sensible substitutions:

cube //. {-b^2 + 3 a c -> s, -2 b^3 + 9 a b c - 27 a^2 d -> t}

The first root is now:

$-\frac{b}{3 a}+\frac{\sqrt[3]{\sqrt{4 s^3+t^2}+t}}{3 \sqrt[3]{2} a}-\frac{\sqrt[3]{2} s}{3 a \sqrt[3]{\sqrt{4 s^3+t^2}+t}}$

where $s = -b^2 + 3 a c$ and $t = -2 b^3 + 9 a b c - 27 a^2 d$.

EDIT:

Iterating this procedure a few times on the original question gives:

$s_2 = \frac{c^{5/3} \left(3 r_1 \left(2 \sqrt{d}+r_1\right)-8 r_2\right)+4 \sqrt[3]{2} c^{4/3} e+4\ 2^{2/3} c \left(2 r_2^3-9 \left(r_1 r_3+8 r_4\right) r_2+27 \left(r_4 r_1^2+r_3^2\right)\right)-8\ 2^{2/3} e^3}{12 c^{5/3} \sqrt{d}}$

where

$a = r_2^2-3 r_1 r_3+12 r_4$

$b = 27 r_4^2 r_1^4+4 r_3^3 r_1^3-18 r_2 r_3 r_4 r_1^3-r_2^2 r_3^2 r_1^2-144 r_2 r_4^2 r_1^2+4 r_2^3 r_4 r_1^2+6 r_3^2 r_4 r_1^2-18 r_2 r_3^3 r_1+192 r_3 r_4^2 r_1+80 r_2^2 r_3 r_4 r_1+27 r_3^4-256 r_4^3+4 r_2^3 r_3^2+128 r_2^2 r_4^2-16 r_2^4 r_4-144 r_2 r_3^2 r_4$

$c = 3 \sqrt{3} \sqrt{b}+2 r_2^3-9 r_1 r_3 r_2-72 r_4 r_2+27 r_3^2+27 r_1^2 r_4$

$d = \frac{\sqrt[3]{2} a}{3 \sqrt[3]{c}}+\frac{\sqrt[3]{c}}{3 \sqrt[3]{2}}+\frac{r_1^2}{4}-\frac{2 r_2}{3}$

$e = r_2^2-3 r_1 r_3+12 r_4$
