How do I overlay a histogram with a plot of CDF?

Question

data = Flatten[Import["speedtest1B.csv"]];
distrib = HistogramDistribution[data];
histogram = Histogram[data, ChartStyle -> {Blue}];
Export["speedtest1B.pdf",
    Overlay[{
    Histogram[
        data,
        ChartStyle -> {Blue},
        ImageSize -> {500,500},
        AxesLabel -> {"start-up time [ms]", "number of samples"}
        ],
    DiscretePlot[
        CDF[distrib, x],
        {x, 0, Max[data]},
        ImageSize -> {500,500},
        Axes -> False
        ]
        }
    ]
];

From the above I get:

enter image description here

I would like the plots to be properly aligned. Displaying the CDF x-axis on the right side of the plot would be a big plus. Also I don't realy get color-theaming so could someone please explain how to easily change the color od CDF to red.

Inside Overlay should be {...}, but you don't even need Overlay, use Show - see my answer. — Vitaliy Kaurov, Jan 30 '13 at 04:39

kglr · Accepted Answer · 2013-01-30T06:09:30.410

4

 data = 1000 RandomVariate[GammaDistribution[3, .5], 10^4];
 distrib = HistogramDistribution[data];
 Overlay[{DiscretePlot[CDF[distrib, x], {x, 0, Max[data]},
  ImageSize -> {600, 400}, Frame -> {{False, True}, {False, False}},
  FrameTicks -> {{None, Range[0.1, 1, .1]}, {None, None}},
  ImagePadding -> {{50, 100}, {15, 25}}],
 Histogram[data, ChartStyle -> Opacity[.5, Blue],
  ImageSize -> {600, 400}, ImagePadding -> {{50, 100}, {15, 25}},
  AxesLabel -> {Style["start-up time [ms]", 12],
     Style["number of samples", 12]}]},
  Alignment -> Center]

enter image description here

edited Jan 30 '13 at 06:09

answered Jan 30 '13 at 05:44

kglr

394,356
18
477
896

awesome! thank you! Any idea how to label the axes? Simple AxesLabel doesnt really work. – JohnnyM Jan 30 '13 at 05:55
@JohnnyM, please see the update. (You need to adjust the values for the ImagePadding option to see the axes labels.) – kglr Jan 30 '13 at 06:12
thanks! maybe you could help with my other question: http://mathematica.stackexchange.com/questions/18733/how-to-rebuild-original-data-from-a-histogram I think it is quite basic. – JohnnyM Jan 30 '13 at 06:16

score 0 · Answer 2 · answered Feb 07 '22 at 04:21

I know that this is a very old question, but perhaps an updated answer might make this easier for seekers such as myself who have a need to superimpose a CDF over a histogram. The following function uses SmoothedHistogram with the “PDF” option.

data=1000RandomVariate[GammaDistribution[3,0.5], 10^3];
histoCDF[data_,smHist_:True]:=Overlay[{
   Histogram[data,Automatic, PlotRange->Full, ImageSize -> {600, 400},
      ChartStyle->Lighter[Blue,0.8],
      ImagePadding -> {{50, 100}, {15, 25}},
      BaseStyle->Directive[Black,14],
      Frame->{{True,False},{True, False}},
      FrameStyle->Directive[Black,14],
      FrameLabel->{{"Number of Samples",None},
         {"Start-up Time (min)", None}}],
SmoothHistogram[data,Automatic,"CDF",
      ImageSize -> {600, 400},
      FrameStyle->Directive[Black,14],
      PlotStyle->Darker[Red,0.3],
      PlotRange->Full,
      FrameTicks->{{None,Range[0.0,1.0,0.2]},
         {None,None}},
      FrameLabel->{{None, "Cumulative Probability"}
          ,{None,None}},
      Frame->{{False,True},{False,False}},
      Axes->None, ImagePadding -> {{50, 100}, {15, 25}}],
If[smHist,
      SmoothHistogram[data,Automatic,
      PlotRange->Full,PlotStyle->Blue,
      ImageSize -> {600, 400}, Axes->None,
      ImagePadding -> {{50, 100}, {15, 25}}],""]
}, Alignment->{Top,Center}]

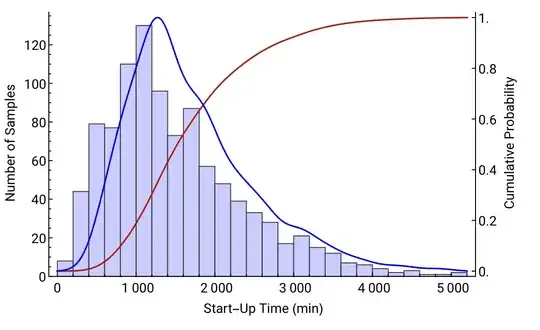

Overlaying plots is now seamless, with no alignment issues. Smoothed histogram is included for comparison.

N.B. You need to use Automatic for bin specification, otherwise strange things happen with the smoothed histogram and the CDF.

It's a very good idea to use SmoothHistogram but because that is a 21st century replacement for a histogram, is there a great need to show both? (Maybe if one doesn't trust smooth histograms. But if the underlying distribution is smooth, why would anyone want to see a blocky histogram?) Also, the alignment is off in your display. The smooth histogram should be right on top of the histogram. Using Show[Histogram[data, Automatic, "PDF"], SmoothHistogram[data]] is simpler and there is no misalignment. — JimB, Feb 07 '22 at 05:24
