Meshing the cow

Question

As a simple example for applying stl-files I took "cow" out of MMA example data. I'm able to discretize the Graphic without problems

kuh = ExampleData[{"Geometry3D", "Cow"}]

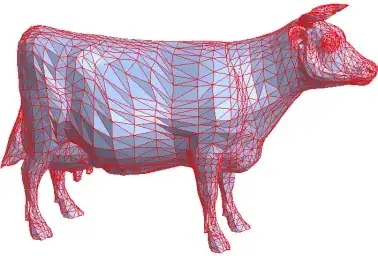

mesh=DiscretizeGraphics[kuh,MeshCellStyle -> {{1, All} -> Red}] (* MeshRegion *)

to get an stl-like triangle surface, which seems to be ok

ConstantRegionQ[mesh]
(*True*)

for further meshing, but my attempt to create a volumemesh fails

Needs["NDSolve`FEM`"]
ToElementMesh[RegionBoundary[mesh]]
(*$Failed*)

What's wrong with my attempt? Thanks!

I have verified it, it works for me on MMA 11.3 (Windows). And it also works online in "Programming Lab" — Pinti, Mar 07 '19 at 11:16
Did you know that you can just do ExampleData[{"Geometry3D", "Cow"}, "MeshRegion"]? — J. M.'s missing motivation, Mar 07 '19 at 11:21
@ Piniti Thanks, it seems to be a problem of MMA version 11.0.1 — Ulrich Neumann, Mar 07 '19 at 11:23
However, FindMeshDefects[ExampleData[{"Geometry3D", "Cow"}, "MeshRegion"]] shows that a conversion to a volume mesh might not be straightforward. — J. M.'s missing motivation, Mar 07 '19 at 11:23

Henrik Schumacher · Accepted Answer · 2019-03-12T20:53:32.707

12

The cow mesh is an example of a "broken" mesh. Try

mesh =  RepairMesh[mesh]

before sending it to ToElementMesh.

Among other nice meshes, you can find a free and "clean" cow mesh also on Keenan Crane's homepage:

https://www.cs.cmu.edu/~kmcrane/Projects/ModelRepository/

This is the model (without texture):

edited Mar 12 '19 at 20:53

answered Mar 07 '19 at 11:23

Henrik Schumacher

106,770
7
179
309

Thanks, but nothing changes: meshR = RepairMesh[mesh ]; ToElementMesh[meshR] (*$Failed*) – Ulrich Neumann Mar 07 '19 at 11:34
2

@Ulrich, running FindMeshDefects[meshR] should show what may be causing the failure. – J. M.'s missing motivation Mar 07 '19 at 11:37
Apparently version 11.3 can cope both with the unrepaired and the repaired mesh. So I don't know what to do. The mesh has self-intersections so tet-meshing it is nontrivial. – Henrik Schumacher Mar 07 '19 at 11:39
Obviously the example isn't as simple as I hoped for. Thank you Henrik and J.M. – Ulrich Neumann Mar 07 '19 at 11:41
1

@Ulrich By the way, a good and clean mesh is the "Triceratops". – Henrik Schumacher Mar 07 '19 at 11:44
@ Henrik Thanks, I'll try ... – Ulrich Neumann Mar 07 '19 at 11:46

score 8 · Answer 2 · answered Mar 07 '19 at 16:33

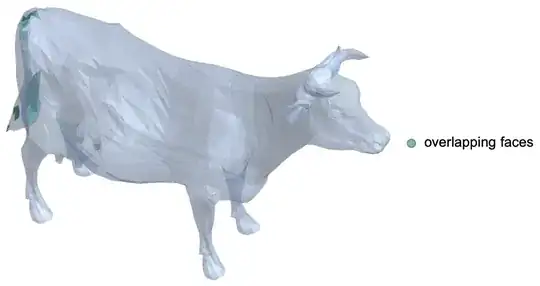

As other's have stated, the issue is self intersecting facets:

mr = RepairMesh[ExampleData[{"Geometry3D", "Cow"}, "MeshRegion"]];

FindMeshDefects[mr]

If we could determine if a point is 'inside' the cow, we could use a naive variant of the powercrust algorithm. Here 'inside' is not necessarily well defined.

Luckily we can use isInside defined specifically for this model here!

dm = DelaunayMesh[MeshCoordinates[mr]];

powercrust = BoundaryMesh @ MeshRegion[
  MeshCoordinates[dm],
  Pick[MeshCells[dm, 3], isInside /@ PropertyValue[{dm, 3}, MeshCellCentroid]]
];

Needs["NDSolve`FEM`"]

ToElementMesh[powercrust]

ElementMesh[{{-0.410816, 0.410816}, {-0.133851, 0.133851}, {-0.251619, 0.251619}}, {TetrahedronElement["<" 25368 ">"]}]
