Typing custom plotlegend

Question

I have the following ListStepPlot:

ListStepPlot[{1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,
1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,
1, 1, 1, 1, -1, -1, -1, -1, -1, -1, -1, -1, -1, -1, -1, -1, -1, -1, \
-1, -1}, LabelStyle ->
Directive[FontFamily -> "Times New Roman", Plain, FontSize -> 11],
PlotLegends -> {Subscript[Style["t", Bold], Style[p, Plain]] ->
Style["F", Bold] <> "\[Congruent]" <> Style["I", Bold]},
PlotRange -> Automatic, AxesLabel -> {"\!\(\*
StyleBox[SubscriptBox[
StyleBox[\"e\",\nFontWeight->\"Plain\"], \"i\"],\nFontWeight->\"Plain\
\"]\)", "\!\(\*SubscriptBox[\(t\), \(i\)]\)"}]

My question is: How can I format the plot legend such that "t" is bold, p is the subscript of "t", and also "F" and "I" are bold?

Also, you currently only have a single list of numbers which means only one legend (the blue one) will be displayed. If you want two legends to display, you should have something like ListStepPlot[{{1, 1, 1, 1, 1, 1, ...}, list2},...]. — MassDefect, May 13 '19 at 16:36

score 1 · Answer 1 · answered May 13 '19 at 20:34

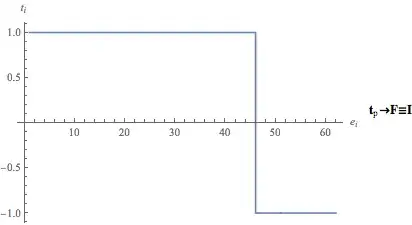

I suggest you use Row for your plot legend. Like so:

ListStepPlot[ConstantArray[1, 45]~ Join~ ConstantArray[-1, 16],
  LabelStyle -> Directive[FontFamily -> "Times New Roman", FontSize -> 11],
 PlotLegends ->
   Style[Row[{Subscript["t", Style[p, Plain]], "→", "F", "≡", "I"}], Bold, "TR"],
   PlotRange -> Automatic,
   AxesLabel -> {Subscript[e, i], Subscript[t, i]}]
