Aligning plot axes of multiple figures results in different size of the FrameTicks

Question

I defined a new FrameTicksStyle, but their size is changed when more than one figure are stacked vertically. However, the size is accepted when figures are stacked horizontally. Kindly, check the code below:

1- I defined the PlotTheme with the new style

s[j_, tl_] := Table[{j i, j i, {0, -tl}, Black}, {i, -100, 100}];
p[j_, ts_] := Table[{j i/5, "", {0, -ts}, Black}, {i, -99, 99}];
ticks[j_, tl_, ts_] := ArrayFlatten[{{s[j, tl]}, {p[j, ts]}}];

Themes`AddThemeRules["mysty",
  LabelStyle -> {FontSize -> 18, Black,
    FontFamily -> "Times New Roman"},
  FrameStyle -> Directive[{Black, Thickness[0.004]}], Frame -> True,
  FrameTicksStyle -> {{Directive[Black, Thickness[0.003]],
     Directive[White, Thickness[0.003]]}, {Directive[Black,
      Thickness[0.003]], Directive[White, Thickness[0.003]]}}];

2- This the part that helps stacking the figures

tb := 2; sd = 1;
Options[plotGrid] = {ImagePadding -> 0};
plotGrid[l_List, w_, h_, opts : OptionsPattern[]] :=
 Module[{nx, ny, sidePadding = OptionValue[plotGrid, ImagePadding],
   topPadding = tb, widths, heights, dimensions, positions,
   frameOptions =
    FilterRules[{opts},
     FilterRules[Options[Graphics],
      Except[{ImagePadding, Frame, FrameTicks}]]]}, {ny, nx} =
   Dimensions[l];
  widths = (w - 2 sidePadding)/nx Table[1, {nx}];
  widths[[1]] = widths[[1]] + sidePadding;
  widths[[-1]] = widths[[-1]] + sidePadding;
  heights = (h - 2 sidePadding)/ny Table[1, {ny}];
  heights[[1]] = heights[[1]] + sidePadding;
  heights[[-1]] = heights[[-1]] + sidePadding;
  positions =
   Transpose@
    Partition[
     Tuples[Prepend[Accumulate[Most[#]], 0] & /@ {widths, heights}],
     ny];
  Graphics[
   Table[Inset[
     Show[l[[ny - j + 1, i]],
      ImagePadding -> {{If[i == 1, sidePadding, sd],
         If[i == nx, sidePadding, sd]}, {If[j == 1, sidePadding, tb],
         If[j == ny, sidePadding, topPadding]}}, AspectRatio -> Full],
      positions[[j, i]], {Left, Bottom}, {widths[[i]],
      heights[[j]]}], {i, 1, nx}, {j, 1, ny}],
   PlotRange -> {{0, w}, {0, h}}, ImageSize -> {w, h},
   Evaluate@Apply[Sequence, frameOptions]]]

3- Finally, I stacked the figures

fm0 = Plot[{x/5}, {x, 0, 20}, PlotRange -> {0, 4},
  PlotStyle -> {Blue}, FrameLabel -> {"x", "Y"},
  FrameTicks -> {ticks[5, 0.02, 0.01], ticks[2, 0.02, 0.01]},
  PlotTheme -> "mysty"];

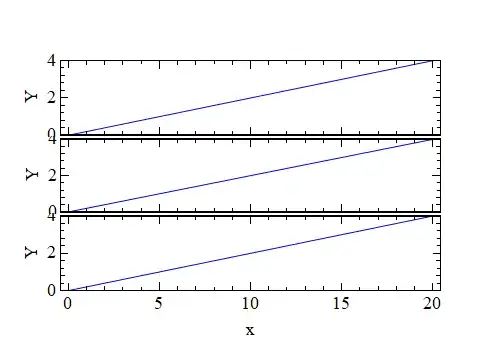

Horz=plotGrid[{{fm0}, {fm0}, {fm0}}, 500, 350, ImagePadding -> 60]
Vert=plotGrid[{{fm0, fm0, fm0}}, 350, 500, ImagePadding -> 60]
