I have studied the relational contents through the webpage Placing x-axes label below rather than at end of axes, but not found: (1)How to put annotation on the left of y axis and display the graphic properly without using FrameLabel. I don't use the function FrameLabel because the curve owns value in the positive and negative y axis. I found if using FrameLabel, the x-direction frame will display on the bottom without overlapping x axis. (2)The webpage didn't point out how to adjust the distance between the text generated from FrameLabel and axis. The default distance between FrameLabel text such as text "x-axis" in the following picture and x axis is very far, so it can not be used in paper directly. So I think it necessary to open a new post here.

In the first row of the following picture, I want to insert an annotation "y-label text" into fig 1-a and make it become into the fig 1-b; the second, move a little bit of "x-axis" and "y-axis" to their axis in the fig 2-a and make it into the fig 2-b. The codes and pictures as follows. How can I achieve the results? Thank you!

For fig 1-a

Plot[Sin[x], {x, 0, 2 Pi},
 AxesLabel -> {"x", "y"}, PlotRange -> All]

For fig 2-a

Plot[x^2 + 4, {x, 0, 5}, ImageSize -> 500, Axes -> False,
 Frame -> {{True, False}, {True, False}},
 FrameLabel -> {{"y-axis", None}, {"x-axis", None}},
 FrameTicks -> All]

and the picture: enter image description here

likehust
  • 693
  • 3
  • 8

1 Answers1

5

Here is one approach: add the labels in desired places using Epilog (with the option PlotRangeClipping -> False and the option setting for ImagePadding large enough to avoid cropping of the labels):

Plot[Sin[x], {x, 0, 2 Pi}, AxesLabel -> {"x", None}, PlotRange -> All,
  PlotRangeClipping -> False, ImagePadding -> Scaled[.05],
 Epilog -> Text[Style[Rotate["y-label text", 90 Degree], Red, Bold], {-.5, .5}]]

enter image description here

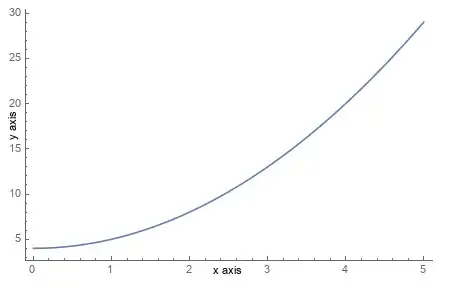

Plot[x^2 + 4, {x, 0, 5}, ImageSize -> 500, Axes -> False,
  Frame -> {{True, False}, {True, False}},
  FrameTicks -> All,
  PlotRangeClipping -> False,
  ImagePadding -> {{Scaled[.1], Automatic}, {Scaled[.1], Automatic}},
  Epilog -> {Text["y axis", {-.25, 17.5}, {0, 0}, {0, 1}],
    Text["x axis", {2.5, 1.5}]}]

enter image description here

kglr
  • 394,356
  • 18
  • 477
  • 896
  • Thank you for hitting the key of the problem. Can you insert a comma at the end of the sentence ImagePadding? In case others may refer to the codes. – likehust Jul 11 '19 at 08:17
  • @likehust, thank you. Fixed the missing comma. – kglr Jul 11 '19 at 08:27
