Manipulate and ListLinePlot

Question

I have the following code:

Mat = DiagonalMatrix @ {α, β, χ};
vec = Diagonal @ Mat;
Manipulate[
  ListLinePlot[vec],
  {α, 1, 20}, {β, 1, 20}, {χ, 1, 20}
]

but it doesn't work? How can I solve this problem?

You can move Mat and vec inside or convert them to functions to pass parameter values later. Possible duplicate: https://mathematica.stackexchange.com/questions/10604/how-are-parameters-evaluated-for-a-plot-in-manipulate — Kuba, Jul 19 '19 at 11:03
My original code is more complicated, I can't simply move "{α, β, χ}" in the plot because I have to use "vec" — Gae P, Jul 19 '19 at 11:09

score 1 · Accepted Answer · answered Jul 19 '19 at 12:24

If you do not want to move the functions inside, then the alternative is to use substitution.

ClearAll[a0, b0, c0];
Mat = DiagonalMatrix[{a0, b0, c0}];
vec = Diagonal[Mat];

Manipulate[
 ListLinePlot[vec /. {a0 -> a, b0 -> b, c0 -> c}],
 {a, 1, 20},
 {b, 1, 20},
 {c, 1, 20},
 TrackedSymbols :> {a, b, c}
 ]

This was discussed as Kuba mentioned in the linked to question. It is also a good idea to add TrackedSymbols option all the time.

kglr · Answer 2 · 2019-07-19T14:31:00.033

Mat = DiagonalMatrix @ {α, β, χ};
vec = Diagonal @ Mat;

Initialization + Function + Evaluate

You can define a function v using the option Initialization and use it in the first argument of ListLinePlot:

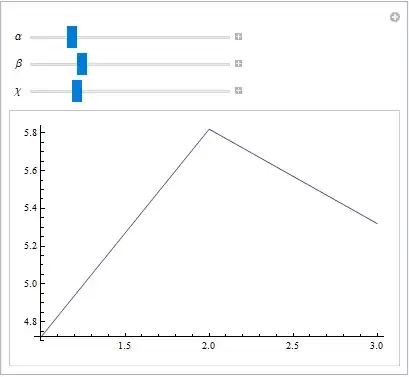

Manipulate[ListLinePlot[v[α, β, χ]], {α, 1,  20}, {β, 1, 20}, {χ, 1, 20},
 Initialization -> {v = Function[{α, β, χ}, Evaluate[vec]]}]

With + Evaluate

You can replace vec with With[{α = α, β = β, χ = χ}, Evaluate @ vec] in the the first argument of ListLinePlot (as an alternative way to force injection of parameter values into vec):

Manipulate[ListLinePlot[With[{α = α, β = β, χ = χ}, Evaluate @ vec]],
   {α, 1, 20}, {β, 1, 20}, {χ, 1, 20}]

same picture
