How to place a two-dimensional contour map under a three-dimensional ascending contour map?

Question

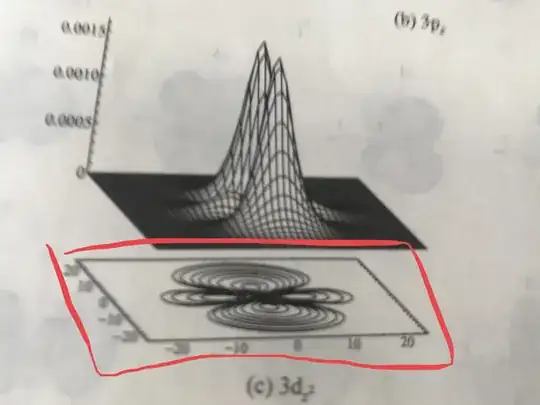

I want to place a two-dimensional contour map under a three-dimensional ascending contour map。I use “Texture” function wihch can not work against。 I want to like this picutre：

 g[x_, y_, z_] :=
  If[x == 0 && y == 0 && z == 0, None,
   Exp[-0.3 Sqrt[x^2 + y^2 + z^2]] x];
{ContourPlot3D[#, {x, -10, 10}, {y, -10, 10}, {z, -10, 10}],
   buttom =
    SliceContourPlot3D[#, {"CenterPlanes"}, {x, -15, 15}, {y, -15,
      15}, {z, -15, 15}, Boxed -> False, Axes -> False,
     ViewPoint -> Front]} & /@ {g[x, y, z]^2}
ContourPlot3D[g[x, y, z], {x, -10, 10}, {y, -10, 10}, {z, -10, 10},
 PlotStyle -> Texture[buttom]]

How should I can do？

Like this: https://mathematica.stackexchange.com/questions/14863/placing-a-contourplot-under-a-plot3d/14875#14875 ? — High Performance Mark, Jul 25 '19 at 07:37

score 2 · Accepted Answer · answered Jul 25 '19 at 15:52

pretty good

g[x_, y_, z_] :=
 If[x == 0 && y == 0 && z == 0, None,
  Exp[-0.2 Sqrt[x^2 + y^2 + z^2]] x]
atomplot1 =
  ContourPlot3D[
   g[x, y, z]^2, {x, -15, 15}, {y, -15, 15}, {z, -15, 15},
   ColorFunction -> Function[{x, y, z}, Hue[g[x, y, z]]]];
atomplot2 =
  atomplot2 =
   SliceContourPlot3D[g[x, y, z + 15]^2,
    z == -15, {x, -15, 15}, {y, -15, 15}, {z, -15, 15}, Axes -> False,
     ColorFunction -> "Rainbow"];
Show[atomplot1, atomplot2, PlotRange -> All, BoxRatios -> {1, 1, .6}, FaceGrids -> {Back, Left}]
