ContourPlot3D[ f(x,y,z) ==0, {x,xmin,xmax},{y,ymin,ymax},{z,zmin,zmax},ContourStyle-> Thickness[2.0]]

Like in this case Thickness does not appear to Show:

b1 = ContourPlot3D [{.005 x^2 + .0055 y^2 + .0031 z^2 == 1}, {x, -20,
   20}, {y, -20, 20}, {z, -15.5, 15.5}, ContourStyle -> Thickness[4]]

Also how can Contour Lines be shown in Tube Style? Thanks in advance for help.

Narasimham
  • 3,160
  • 13
  • 26
  • Duplicate: https://mathematica.stackexchange.com/a/55021/4999 – Michael E2 Aug 11 '19 at 13:56
  • Line -> Tube[#, 0.1] or MeshStyle -> Tube[.1] & substitute desired radius for 0.1? See https://mathematica.stackexchange.com/questions/54744/how-does-one-get-mesh-lines-at-0-in-parametricplot3d – Michael E2 Aug 11 '19 at 13:57

1 Answers1

6
f[x_, y_, z_] := x^3 + y^2 - z^2

You can use the (afaik undocumented) option "Extrusion":

ContourPlot3D[f[x,y,z] == 0, {x, -2, 2}, {y, -2, 2}, {z, -2, 2},
   "Extrusion" ->. 2]

enter image description here

You can also use Extrusion -> .2 or Method ->{"Extrusion" -> .2}.

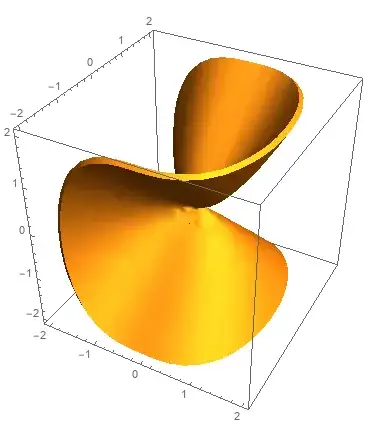

Alternatively, use PlotTheme -> "ThickSurface":

ContourPlot3D[f[x, y, z] == 0, {x, -2, 2}, {y, -2, 2}, {z, -2, 2},
  PlotTheme -> "ThickSurface"]

enter image description here

To make the mesh lines into Tubes you can post-process:

ContourPlot3D[f[x, y, z] == 0, {x, -2, 2}, {y, -2, 2}, {z, -2, 2},
  ContourStyle -> Opacity[.5, Orange],
  MeshStyle -> Red] /. Line[x_] :> Tube[x, .03]

enter image description here

or use (also undocumented, afaik) option setting Tube[radius] for MeshStyle:

ContourPlot3D[f[x, y, z] == 0, {x, -2, 2}, {y, -2, 2}, {z, -2, 2},
 ContourStyle -> Opacity[.5, Orange], MeshStyle -> Tube[.03]]

enter image description here

Note: The last two pictures are obtained using v9 (windows 10). Can't run the same code on v12 on free Wolfram Cloud because of cloud credit limits.

kglr
  • 394,356
  • 18
  • 477
  • 896
  • Thanks. It appears Extrusion-> .. works better. Next further on..in the given example how do we show with ContourPlot3D {x = xcon, y=ycn, z=zcon } Cartesian planes sections in Tube PlotStyle when so desired? – Narasimham Aug 11 '19 at 14:46
  • @Narasimham, "further on..." part sounds like a good new question. – kglr Aug 11 '19 at 15:38
  • OK I shall give a new question.. – Narasimham Aug 12 '19 at 05:24
