I want to check my homework answers. So I am wondering if there is a way you can find Fourier series using mathematica of this function g(x)=x(1-x) on interval [0,1)? If so, can someone please show me how you can using Mathematica?

xzczd
  • 65,995
  • 9
  • 163
  • 468
Sarah Smith
  • 131
  • 1
  • 2
    A first step might be to enter "fourier series" into the search bar of the documentation center. – Michael E2 Mar 15 '20 at 17:00
  • To be more specific, just try e.g. rst=easyFourierSinSeries[x(1-x),{x,0,1}]; Plot[{x(1-x),rst/.C->2//ReleaseHold}//Evaluate,{x,0,1}]. – xzczd Mar 16 '20 at 06:15

1 Answers1

3

It is important to say what the period is. Taking the period as 1 in your case, then your function looks like

g[x_] := Piecewise[{{x (1 - x),
     0 <=  x < 1}, {-x (1 + x), -1 <=  x < 0}, {0, True}}];

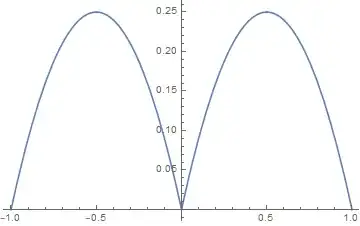

Plot[g[x], {x, -1, 1}]

Mathematica graphics

The above assumes even periodic extension. To find the Fourier series now use

fs = FourierSeries[g[x], x, 3, FourierParameters -> {1, -2 Pi}];
fs // ExpToTrig

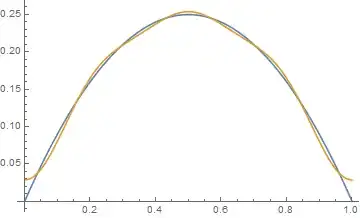

Plot[{g[x], fs}, {x, 0, 1}]

$$ -\frac{\cos (2 \pi x)}{\pi ^2}-\frac{\cos (4 \pi x)}{4 \pi ^2}-\frac{\cos (6 \pi x)}{9 \pi ^2}+\frac{1}{6} $$

Mathematica graphics

More terms produces better approximation

fs = FourierSeries[g[x], x, 7, FourierParameters -> {1, -2 Pi}];
fs // ExpToTrig
Plot[{g[x], fs}, {x, 0, 1}]

$$ -\frac{\cos (2 \pi x)}{\pi ^2}-\frac{\cos (4 \pi x)}{4 \pi ^2}-\frac{\cos (6 \pi x)}{9 \pi ^2}-\frac{\cos (8 \pi x)}{16 \pi ^2}-\frac{\cos (10 \pi x)}{25 \pi ^2}-\frac{\cos (12 \pi x)}{36 \pi ^2}-\frac{\cos (14 \pi x)}{49 \pi ^2}+\frac{1}{6} $$

Mathematica graphics
