I am trying to embed a text on the left FaceGrid (such that it looks like it is written on the respective FaceGrid), how can I do that?

Graphics3D[{}, AspectRatio -> 1, Boxed -> False, Axes -> False,
 PlotRange -> {{-2, 2}, {-2, 2}, {-2, 2}},
 FaceGrids -> {{Bottom, {{-2, 2}, {-2, 2}}}, {Left, {{-2, 2}, {-2,
      2}}}, {Back, {{-2, 2}, {-2, 2}}}},
 Epilog ->
  Rotate[Inset[
    Framed[Style["Text", 18, White, FontFamily -> "Times New Roman"],
     Background -> Black], Scaled[{.15, 0.50}]], \[Pi]/4]]

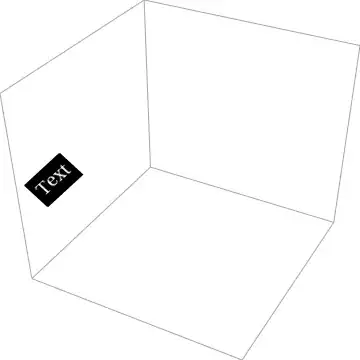

enter image description here

MMA13
  • 4,664
  • 3
  • 15
  • 21

2 Answers2

4
left = {{0, 0, 0}, {0, 1, 0}, {0, 1, 1}, {0, 0, 1}};
back = {{0, 1, 0}, {1, 1, 0}, {1, 1, 1}, {0, 1, 1}};
bottom = {{0, 0, 0}, {1, 0, 0}, {1, 1, 0}, {0, 1, 0}};

vtc = {{0, 0}, {1, 0}, {1, 1}, {0, 1}};

text = {Texture[Rasterize[Text[Framed[
  Style["Some Text", Yellow, Bold, FontSize -> 46, FontFamily -> "Old English Text MT"],
     FrameStyle -> None, ImageMargins -> Scaled[.02]]], Background -> Black]],
  Polygon[left, VertexTextureCoordinates -> vtc]};

moretext = {Texture[Rasterize[Text[Framed[
   Style["more Text", White, Bold, FontSize -> 46, FontFamily -> "Lucida Handwriting"],
    FrameStyle -> None, ImageMargins -> Scaled[.02]]], Background -> Red]],
   Polygon[back, VertexTextureCoordinates -> vtc]};

etcetc = {Texture[Rasterize[Text[Framed[
   Style["ETC ETC ...", Black, Bold, FontSize -> 46, FontFamily -> "Euclid Fraktur"],
     FrameStyle -> None, ImageMargins -> Scaled[.02]]], Background -> None]],
   Polygon[bottom, VertexTextureCoordinates -> vtc]};


Graphics3D[{{Opacity[.5, Blue], Sphere[{1, 1, 1}/2, 1/4], Opacity[0],
     Cuboid[]}, text, moretext, etcetc},
   Boxed -> False, Lighting -> "Neutral"]

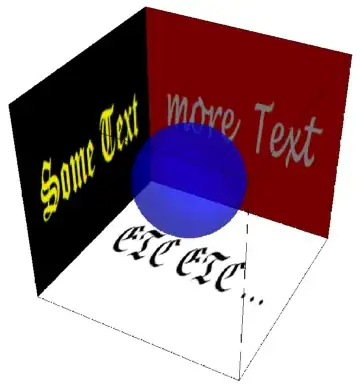

enter image description here

kglr
  • 394,356
  • 18
  • 477
  • 896
  • Thanks@kglr! that is cool, Is it possible to add the text only to part of the face, say at the corner inside a square box? The same text box in the question I would like to add at only at the corner of the left FaceGrid. – MMA13 Apr 18 '20 at 19:30
  • 1
    @HD2006, you can specify the polygon coordinates as you like. Try for example, left =left/3 before you execute the line text = .... – kglr Apr 18 '20 at 19:37
3

This is doable, but for a long time with difficulties. It is possible that the difficulties I mention below doesn't exist anymore, but in case they are still there, it is preferable that you have a overview of what's coming.

You can do it with ImportString[ExportString["Text BlabBlah","PDF"],"PDF"] which returns the graphic primitives corresponding to the text (in 2D, but it is not a problem to transform it in 3D).

The problem is that you may encounter this problem , which is OS dependent.

In this case there is a workaround, but it uses a undocumented syntax of FilledCurve

One more information : It it perfectly possible to add a Style to the text :

ImportString[ExportString[Style["Blah Blah", FontSize -> 60], "PDF"], "PDF"] // First

andre314
  • 18,474
  • 1
  • 36
  • 69
  • I would be pleased to be informed that this problem is solved, but as it is OS dependent, it will be hard to know if the solution is definitive. – andre314 Apr 18 '20 at 16:59
  • I don't get it, may you please incorporate the solution into the above code? – MMA13 Apr 18 '20 at 17:51
  • Effectively, even the conversion of ImportString[ExportString["Text BlabBlah","PDF"],"PDF"] to a 3D object on not that simple. kglr's solution is better. – andre314 Apr 19 '20 at 08:23
