What's the right way to export a DXF file in Mathematica?

Question

I have exported a DXF file from Mathematica and I am trying to import it in AutoCAD.

The file that has been exported is output of a command like the following

g = Graph[vl, edges,
 VertexCoordinates -> {v_ :> ({x[v], y[v]} /. solution)},
 EdgeWeight -> ew, VertexLabels -> Placed["Name", Center],
 EdgeLabels -> {e_ :> Placed["EdgeWeight", .3]}, VertexSize -> .7,
 VertexStyle -> Red]

More details can be found in my previous post here

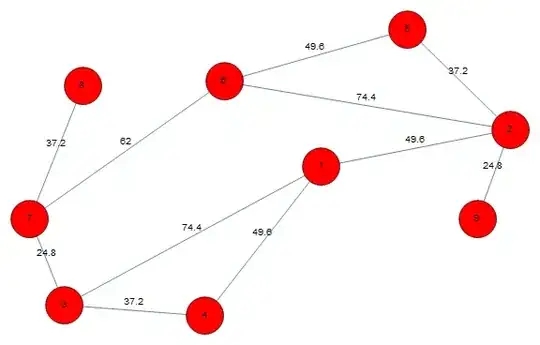

The following graph was exported from Mathematica using the command : Export["file.dxf", Show[Graph3D[g]]]

The file obtained after export is shared here.

But when I try to open the file in AutoCAD, the drawing window in AutoCAD shuts.

Could someone look into this?

If this doesn't work, can I export in other formats?

EDIT: The solution suggested below doesn't work when the output is obtained as a result of the following command

g3d = Graph3D[vl, edges,
  VertexCoordinates -> {v_ :> ({x[v], y[v], z[v]} /. solution3d)},
  EdgeWeight -> ew, VertexLabels -> Placed["Name", Center],
  EdgeLabels -> {e_ :> Placed["EdgeWeight", .5]}, VertexSize -> .3,
  VertexStyle -> Red, ImageSize -> Large]

I think the problem here is solution3d already as x,y,z coordinates in it. When I export the output to dxf using

Export["file.dxf", Show[Graph3D[g3d]]]

the exported dxf can't be imported in AutoCAD.

Answer 1

The DXF file you made isn't wrong, but it's in a different format than your original. Your original DXF was a set of lines in 3D. Here's how to make a simple DXF file from the answer's solution. Refer to the answer at Scaling the edge length of a graph to be equal to edge weight.

1) The solution from the answer has new 2D vertex coordinates. Get line data from the original DXF file.

solution = {x[1] -> 74.8765323341147, y[1] -> 38.338839560418336,
  x[2] -> 123.40647961090141, y[2] -> 47.8708899668093,
  x[3] -> 8.917284888177424, y[3] -> 2.766361654099819,
  x[4] -> 45.00000011321871, y[4] -> 0.,
  x[5] -> 97.09834751979837, y[5] -> 73.57592753317832,
  x[6] -> 49.91286233087924, y[6] -> 60.18973414245018,
  x[7] -> 0., y[7] -> 24.999999734296512,
  x[8] -> 13.634582696340212, y[8] -> 59.0724623077659,
  x[9] -> 114.99999830823879, y[9] -> 24.99999745723544};
ld = Import["input.dxf","LineData"]

{{1,2}, {1,3}, {1,4}, {2,5}, {2,6}, {5,6}, {3,4}, {3,7}, {6,7}, {7,8}, {2,9}}

2) Change the 2D vertices from the solution to 3D by setting the z coordinate to zero. Create lines from the line data, ld, and the vertex coordinates, vd.

vd = Append[#, 0.] & /@ Partition[Values[solution], 2];
lines = Line[vd[[#]]] & /@ ld;

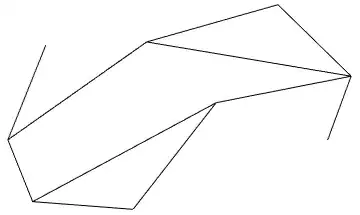

3) Make a 3D graphic of the lines and export to a DXF file.

g = Graphics3D[lines, Boxed -> False, ViewPoint -> Top]

Export["output.dxf", g];
