Selecting data from a list

Question

Let's create a simple data list

Clear["Global`*"];

data = Table[{i, Sin[i]}, {i, 0, 6 \[Pi], 0.01}];

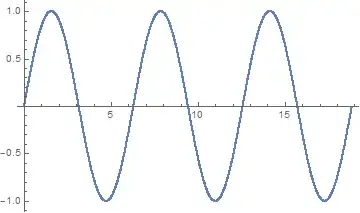

L0 = ListPlot[data]

Now I want to find for which values of $x$ we have let's say $y = 0.5$. Note that my actual data do not correspond to a known function (e.g., sin()), so the solution should not take into account the function but purely the data list.

Any suggestions?

Will it always be “around” that value, for the whole of the function/plot? Perhaps an intersection with a line kind of thing could work? — CA Trevillian, May 30 '20 at 17:34

Rohit Namjoshi · Answer 1 · 2020-05-30T17:21:59.413

3

Update

To get the n nearest values

nfun[.5, 6]

(*
  {{1310, 0.500027}, {891, 0.501021}, {263, 0.498262}, {682, 0.502782}, {53, 0.49688}, {1519, 0.503775}}
*)

Here is one way

nfun = Nearest[data[[All, 2]] -> {"Index", "Element"}];
nfun[.5]

(* {{1310, 0.500027}} *)

The value closest to 0.5 is 0.500027 at index 1310.

edited May 30 '20 at 17:21

answered May 30 '20 at 17:13

Rohit Namjoshi

10,212
6
16
67

That's only one value. In this example, there are six values of $x$ for which $y = 0.5$. – Vaggelis_Z May 30 '20 at 17:15
No, there are none that equal 0.5. Select[data, #[[2]] == 0.5 &] is an empty list. – Rohit Namjoshi May 30 '20 at 17:16
So, we need to find all (six in this case) values of $x$ for which $y$ is close to 0.5. – Vaggelis_Z May 30 '20 at 17:21
One comment: the output should explicitly give the values of $x$ not their position in the list. – Vaggelis_Z May 30 '20 at 17:24
@Vaggelis_Z I updated my answer. You will have to define what "close" means. – Rohit Namjoshi May 30 '20 at 17:24
@Vaggelis_Z To get just the values nfun = Nearest[data[[All, 2]]];. – Rohit Namjoshi May 30 '20 at 17:25
nfun = Nearest[data[[All, 2]]]; gives only the nearest values of $y$ but I also want to know the corresponidng values of $x$! – Vaggelis_Z May 30 '20 at 17:27
Using the first definition of nfun, nfun[.5, 6] // Map[data[[First@#]] &]. – Rohit Namjoshi May 30 '20 at 17:35

MarcoB · Accepted Answer · 2020-05-30T18:15:29.810

There are no values for which the ordinate is exactly 0.5 in your list, so you will have to decide for yourself how close is close enough:

For instance, if a tolerance of 0.01 is sufficiently close, then:

Cases[data, {x_, y_} /; Round[y, 0.01] == 0.5 :> x]
(* Out: {0.52, 2.62, 6.81, 8.9, 13.09, 15.18, 15.19} *)

If you want a stricter tolerance, e.g. 0.001, then:

Cases[data, {x_, y_} /; Round[y, 0.001] == 0.5 :> x]
(* Out: {13.09} *)

We can put this together in a function:

ClearAll[selector]
selector[data_, desiredVal_, tolerance_] :=
  Cases[data, {x_, y_} /; Round[y, tolerance] == desiredVal :> x]

selector[data, 0.5, 0.01]
(* Out: {0.52, 2.62, 6.81, 8.9, 13.09, 15.18, 15.19} *)

If, on the other hand, you would like to use an interpolation to determine the value of x (perhaps not present in your dataset, but obtained by interpolation from it) for which $y=0.5$ exactly, you could use the following method to find all zeros of a function over a range I've learned on this site (but currently can't find a link for, will update):

int = Interpolation[data];

First@Last@
  Reap@
    NDSolve[
      {f'[x] == int'[x], f[0] == int[0], WhenEvent[f[x] == 0.5, Sow[x]]},
      f, Evaluate@{x, MinMax[ data[[All, 1]] ]}
    ]

(* Out: {0.523599, 2.61799, 6.80678, 8.90118, 13.09, 15.1844} *)

Cases[data, {x_, y_} /; Round[y, 0.01] == 0.5 :> {x, y}] is probably closer to what the OP is looking for. — Rohit Namjoshi, May 30 '20 at 17:38
@Rohit Possibly; but I read the question as only asking the values of $x$ that are associated with a given y; not the corresponding y. OP might not care about the $y$ since it is what they are selecting for, so it is implicit in the request. — MarcoB, May 30 '20 at 17:48
Please note that InterpolationOrder of Interpolation is 3 by default, this may not correspond with what is wanted. — kirma, May 30 '20 at 18:21
@kirma that’s true, but the differences In the results are very small, whereas the default interpolation order leads to much faster calculations than InterpolationOrder -> 1. — MarcoB, May 30 '20 at 18:34

kirma · Answer 3 · 2020-05-30T18:17:36.780

Here's an incredibly dumb solution that tries to find values of $x$ that correspond to the linear piecewise interpolation between data points. (Frankly I find the formulation of the question imprecise for other interpretations.) For some reason SequenceCases is much slower (like thousands of times, at least) than it should really be...

With[{y0 = 0.5},
 SequenceCases[
  Table[{i, Sin[i]}, {i, 0, 6 Pi, 0.01}],
  l : {{x1_, y1_}, {x2_, y2_}} /; y1 <= y0 <= y2 || y2 <= y0 <= y1 :>
   (x /. First@Quiet@
       Solve[Interpolation[l, InterpolationOrder -> 1][x] == y0, x]),
  Overlaps -> True]]

{0.523605, 2.61799, 6.80679, 8.90118, 13.09, 15.1844}

@MarcoB's NDSolve trick is maybe cleaner version of the same (although it would be even nicer if one could just get all roots with Solve of a single Interpolation).

In regard to the last point, @Jens' s findAllRoots function is pretty cool. — MarcoB, May 30 '20 at 18:21

user1066 · Answer 4 · 2020-05-30T19:05:36.310

dataSubset=Pick[data,Unitize[Clip[data[[All,2]], {0.5-0.01, 0.5+0.01},{0,0}]],1]

{{0.52, 0.49688}, {0.53, 0.505533}, {2.61, 0.506907}, {2.62, 0.498262}, {6.8, 0.494113}, {6.81, 0.502782}, {8.89, 0.50965}, {8.9, 0.501021}, {8.91, 0.492342}, {13.08, 0.491342}, {13.09, 0.500027}, {13.1, 0.508661}, {15.18, 0.503775}, {15.19, 0.495112}}

FindClusters[Rule@@@dataSubset]

{{0.49688, 0.505533}, {0.506907, 0.498262}, {0.494113, 0.502782}, {0.50965, 0.501021, 0.492342}, {0.491342, 0.500027, 0.508661}, {0.503775, 0.495112}}

Rule@@@dataSubset//FindClusters[#]/.Reverse[#,{2}]&

{{0.52, 0.53}, {2.61, 2.62}, {6.8, 6.81}, {8.89, 8.9, 8.91}, {13.08, 13.09, 13.1}, {15.18, 15.19}}

Length@%

6
