Adding arrow head at the end of ParametricPlot3D

Question

I have been trying to add an arrow head at the end (o even at some point) of a very simple parametric.

ParametricPlot3D[{-5 Sin[3 t], 5 Cos[3 t], t}, {t, 0, 15}]

But can not find a simple way to do it.

I have tried to merge plots using Show[plot1,arrowh] (for example), but this is not that elegant nor functional.

Any ideas?

@RohitNamjoshi now that I understand it, yes, I did checked that question/answer before posting but didn't quite understood it. — C. Alexander, Jul 09 '20 at 19:09

C. E. · Accepted Answer · 2020-07-09T18:40:12.353

5

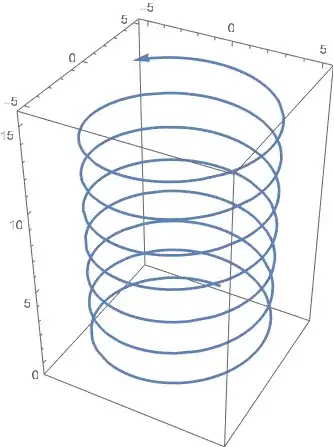

ParametricPlot3D creates a Line which we can replace by an Arrow:

pl = ParametricPlot3D[{-5 Sin[3 t], 5 Cos[3 t], t}, {t, 0, 15}];
pl /. Line -> Arrow

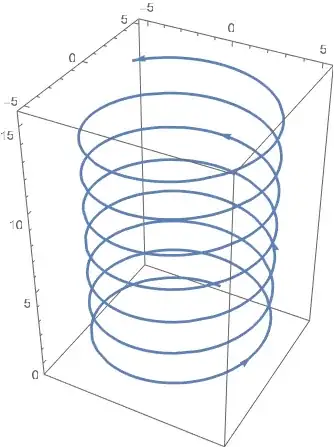

This will place arrowheads at fractions 0.1, 0.4, 0.7 and 1 along the curve:

arrowheads = Arrowheads@Transpose[{
     ConstantArray[Large, 4],
     {0.1, 0.4, 0.7, 1}
     }];
pl /. Line[pts_] :> {arrowheads, Arrow[pts]}

edited Jul 09 '20 at 18:40

answered Jul 09 '20 at 18:27

C. E.

Perfect, just to deepen a bit, could you add multiple arrows of move it along the curve? – C. Alexander Jul 09 '20 at 18:30
See this. – Rohit Namjoshi Jul 09 '20 at 18:37
@C.Alexander As Rohit is showing it's really all about Arrowheads, but I added an example here as well. – C. E. Jul 09 '20 at 18:40
1

You can also Partition the Line, e.g., ParametricPlot3D[{-5 Sin[3 t], 5 Cos[3 t], t}, {t, 0, 15}] /. Line[pts__] :> Arrow /@ Partition[pts, 50, 49] – Bob Hanlon Jul 09 '20 at 19:04
Really helpful, I guess you can also change the arrow style in the same definition, right? – C. Alexander Jul 09 '20 at 19:11
@C.Alexander yes, you can change the style in this way as well. – C. E. Jul 09 '20 at 20:20
1

Or reverse the points: ParametricPlot3D[{-5 Sin[3 t], 5 Cos[3 t], t}, {t, 0, 15}] /. Line[pts__] :> Arrow /@ Partition[Reverse@pts, 50, 49] – Bob Hanlon Jul 09 '20 at 20:26
