How to blend some colors on a curve

Question

I need to define a color gradient on a 3D curve, but I'm having some problems with this.

Suppose we have a 3D curve defined as a parametric function of some real variable phi :

curve[phi_] := {...};

where phi runs from phi1 to phi2. Now, I defined the start, middle and end colors like this :

Color1 := RGBColor[0.99, 0.2, 0.2, 0.2];
Color2 := RGBColor[0.2, 0.99, 0.2, 0.8];
Color3 := RGBColor[0.2, 0.2, 0.99, 0.2];

CurveColor[phi_] = Blend[{Color1, Color2, Color3}, phi];

The last definition doesn't work. I need the function CurveColor[phi] to output four real positive numbers smaller than 1, like this :

CurveColor[phi1] := {0.99, 0.2, 0.2, 0.2}
CurveColor[phi2] := {0.2, 0.2, 0.99, 0.2}

The colors should blend smoothly between Color1 to Color2 to Color3, and be uniformly distributed along the interval phi1 to phi2).

So how should I define that color function ? I don't need that function to be used in a plot3D. I only need the color data as a list of numbers.

Please, notice that I'm working with Mathematica 7.

Well, yes, in the sense that I need that function to output a list of four numbers (RGB and Opacity). The colors should be uniformly distributed on the interval phi1 to phi2 only, and blend smoothly. — Cham, Apr 03 '13 at 20:27
Let me rephrase, are you planning on doing ParametricPlot3D[curve ..., ColorFunction-> CurveColor]? Or, do you just want the numbers? — rcollyer, Apr 03 '13 at 20:28
I just want the numbers. I don't need the function to be used in a plot3D. — Cham, Apr 03 '13 at 20:29
Got it. Blending smoothly, though, is a matter of contention, though. Blend uses linear interpolation, so it is "smooth," but not necessarily pretty. — rcollyer, Apr 03 '13 at 20:30
You should use = when defining Color1, etc. and := when defining CurveColor. You have it reversed. — Szabolcs, Apr 03 '13 at 20:34
I'd say this is a duplicate of What is the difference between Set and SetDelayed, as this is the essence of the problem. — Szabolcs, Apr 03 '13 at 20:35
@Szabolcs not really. It has some similarities, but as the OP wants only the data, it is a little different. — rcollyer, Apr 03 '13 at 20:36

BoLe · Answer 1 · 2013-04-03T21:01:47.960

11

You don't := constant colors.

Color1 = RGBColor[0.99, 0.2, 0.2, 0.5];

This space curve for example:

curve = KnotData["Trefoil", "SpaceCurve"]
(* {Sin[#1] + 2 Sin[2 #1], Cos[#1] - 2 Cos[2 #1], -Sin[3 #1]} & *)

ParametricPlot3D[curve[t], {t, 0, 2 Pi},
 PlotStyle -> AbsoluteThickness[10],
 ColorFunction -> (CurveColor[#4] &),
 ColorFunctionScaling -> True]

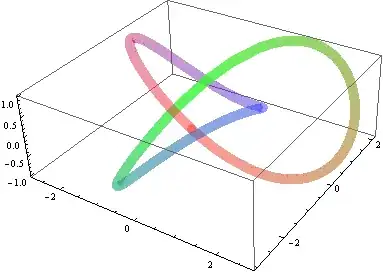

pplot3d

Since the curve loops I appended Color1 at the end for color looping.

CurveColor[t_] := Blend[{Color1, Color2, Color3, Color1}, t]

Edit: Color values only.

CurveColor[t_] := List @@ Blend[{Color1, Color2, Color3}, t]

Applying List for a list of numbers instead of a RGBColor expression.

With[{t1 = Pi, t2 = 2 Pi},
 CurveColor[(# - t1)/(t2 - t1)] & /@ Range[t1, t2, (t2 - t1)/5.]]

(* {{0.99, 0.2, 0.2, 0.2}, {0.674, 0.516, 0.2, 0.2}, *)
(* {0.358, 0.832, 0.2, 0.2}, {0.2, 0.832, 0.358, 0.26}, *)
(* {0.2, 0.516, 0.674, 0.38}, {0.2, 0.2, 0.99, 0.5}} *)

edited Apr 03 '13 at 21:01

answered Apr 03 '13 at 20:32

BoLe

5,819
15
33

This is working, but how can I extract the color data as a list ? – Cham Apr 03 '13 at 20:39
I was confused with the beginning. What is the point of a curve if not coloring it? – BoLe Apr 03 '13 at 20:46
I need the color data to be exported to an ASCII file, to be used with another program. Maybe my question wasn't clear. The solution below is working great. – Cham Apr 03 '13 at 20:47
Very nice plot above, by the way ! :-) – Cham Apr 03 '13 at 20:49
Yes, one must supply Blend with values from 0 and 1. y(x)=(x-x1)/(x2-x1). ;) – BoLe Apr 03 '13 at 20:57

score 7 · Accepted Answer · answered Apr 03 '13 at 20:35

7

Since you only want the numbers, you can get them by using Apply:

CurveColor[phi_] = List@@Blend[{Color1, Color2, Color3},
       Rescale[phi, {phimin, phimax}]]

which will ensure that you always use the same blending functionality that Blend uses. Note, the use of Rescale.

answered Apr 03 '13 at 20:35

rcollyer

33,976
7
92
191

The issue is actually that he used = when he should have used :=. – Szabolcs Apr 03 '13 at 20:36
@Szabolcs that is why he is getting the message, but CurveColor still works. So, it isn't entirely the issue. – rcollyer Apr 03 '13 at 20:38
Yes, of course for four numbers the List@@ is important. – Szabolcs Apr 03 '13 at 20:43
This solution is what I was looking for. It's working, thanks a lot ! – Cham Apr 03 '13 at 20:45
Why the Rescale ? – Cham Apr 03 '13 at 21:14
RGBColor only accepts values between 0 and 1. Rescale ensures that that is true. – rcollyer Apr 03 '13 at 22:04
