Iterated differential operator

Question

I would like to implement the following differential operator in Mathematica,

$$ \prod_{j=1}^n \left({\mathrm d \over \mathrm d x}-j\right) $$

On a case by case basis, I can just expand it out and write things in terms of D[f, {x, j}] for $ j = 1, 2, \dots, n $, but I would like to know how to define a function that works for general $ n $.

Is the product actually a product? You mention D[f,{x,j}] which takes the $j$th derivative of f w.r.t x, but (for univariate f) you could also mean op[f_, x_, n_] := Product[D[f[x], x] - j, {j, 1, n}] — flinty, Jul 22 '20 at 00:29
Sorry for poor wording. The product is supposed to define an $n$-th order differential operator. So for example, when applied to a test function $f[x]$ the $n=2$ case would give $f''[x]-3 f'[x]+2f[x]$. — B. Erenu, Jul 22 '20 at 00:33
Please explain how you get that result - it's not obvious to me. — flinty, Jul 22 '20 at 00:39
For $n=2$ the differential operator of interest is $(d/dx-1)(d/dx-2)= d^2/dx^2 - 3 d/dx + 2$. Then just apply this to the test function. — B. Erenu, Jul 22 '20 at 00:42
Related: https://mathematica.stackexchange.com/q/71643/1871 https://mathematica.stackexchange.com/q/125277/1871 Also, you may want to try this package: https://mathematica.stackexchange.com/a/162590/1871 — xzczd, Jul 22 '20 at 03:48

score 10 · Accepted Answer · answered Jul 22 '20 at 02:17

Clear["Global`*"]

Defining the operator recursively,

dOp[func_, x_Symbol, 1] := dOp[func, x, 1] = D[func, x] - func;
dOp[func_, x_Symbol, n_Integer?Positive] := dOp[func, x, n] =
   D[dOp[func, x, n - 1], x] - n*dOp[func, x, n - 1];

For example,

dOp[f[x], x, 2] // Expand
(* 2 f[x] - 3 f'[x] + f''[x] *)

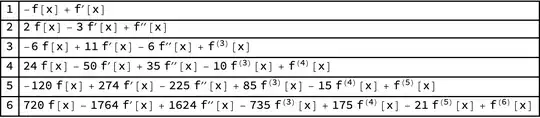

Looking at the first several,

Table[{n, dOp[f[x], x, n] // Expand}, {n, 1, 6}] //
 Grid[#, Alignment -> Left, Dividers -> All] &

The coefficients are Stirling numbers of the first kind, StirlingS1

Table[StirlingS1[n, m], {n, 2, 7}, {m, 1, n}] // Grid

Consequently, the operator can alternatively be written as the sum

dOp2[func_, x_Symbol, n_Integer?Positive] :=
 Sum[StirlingS1[n + 1, m + 1] D[func, {x, m}], {m, 0, n}]

Verifying the equivalence of the definitions,

And @@ Table[dOp[f[x], x, n] == dOp2[f[x], x, n] // Simplify, {n, 1, 15}]
(* True *)

+1 for StirlingS1 :) – Αλέξανδρος Ζεγγ Jul 22 '20 at 06:08 — Αλέξανδρος Ζεγγ, Jul 22 '20 at 06:08
Thanks for the thorough response! – B. Erenu Jul 23 '20 at 18:10 — B. Erenu, Jul 23 '20 at 18:10

Αλέξανδρος Ζεγγ · Answer 2 · 2020-07-22T08:07:40.733

8

One can use Composition (which should be the true meaning of the product of operators) with (pure) Function:

ClearAll[op, ff]
ff[j_] := f \[Function] D[f, x] - j f
op[n_] := Composition @@ Table[ff[j], {j, n}]

op[2][f[x]] // Simplify

2 f[x] - 3 f'[x] + f''[x]

Update

The version without Apply (@@) (actually Composition can be also replaced by RightComposition, because the order seems not to matter much in this case), by virtue of a syntax of Array able to replace heads:

Clear[op2]
op2[n_] := Array[ff, n, 1, Composition]

edited Jul 22 '20 at 08:07

answered Jul 22 '20 at 03:39

Αλέξανδρος Ζεγγ

9,783
3
20
41

Thanks for your help! – B. Erenu Jul 23 '20 at 18:10

flinty · Answer 3 · 2020-07-22T01:08:54.287

4

op[f_, x_, n_] := Block[{d},
  Total[MapIndexed[#1*If[#2[[1]] == 1, 1, D[f[x], {x, #2[[1]] - 1}]] &,
    CoefficientList[Product[d - j, {j, 1, n}], d]]]]

op[g, y, 2] gives 2 - 3 g'[y] + g''[y]

Update based on your comment:

op[f_, x_, n_] :=
 Block[{d},
  Total[MapIndexed[#1*D[f[x], {x, #2[[1]] - 1}] &,
    CoefficientList[Product[d - j, {j, 1, n}], d]]]]

op[g, y, 2] gives 2*g[y] - 3*g'[y] + g''[y]

edited Jul 22 '20 at 01:08

answered Jul 22 '20 at 00:51

flinty

25,147
2
20
86

Excellent, thanks! I actually want the lowest term to be 2f[x] instead of 2, but this is easily fixed by changing the 1 after #2[[1]] == 1 to f[x]. – B. Erenu Jul 22 '20 at 01:05
