I have the following multiplication Manipulate:

Manipulate[
   x*y,
   {x, 1, 10},
   {y, 5, 15}
              ];

When you run this Manipulate, the X and Y sliders should not be visible to the user. But, The question: What is your X value between 1 and 10? should pop up with an empty box for entering a number for X between 1 and 10. After entering an X value, then the second question: What is your Y value between 5 and 15? should pop up with another empty box for entering a Y value. After answering both questions, the answer should be visible in Manipulate pane. Every time you run this Manipulate, the same steps should be evoked.

Can we do that in Mathematica?

Tugrul Temel
  • 6,193
  • 3
  • 12
  • 32

2 Answers2

3

Edit: For the revised question, as described it is not clear why you want a Manipulate as opposed to using Input.

Clear["Global`*"]

Using Slider

Panel[
 x = 0;
 y = 0;
 result = {};
 While[Not[IntegerQ[x] && 1 <= x <= 10],
  (x = Input[
     "What is your X value between 1 and 10?"])];
 While[Not[IntegerQ[y] && 5 <= y <= 15],
  (y = Input[
     "What is your Y value between 5 and 15?"])];
 result = x*y;
 If[result === {}, "",
  Manipulate[
   xx*yy,
   {{xx, x, "x"}, 1, 10, 1, Appearance -> "Labeled"},
   {{yy, y, "y"}, 5, 15, 1, Appearance -> "Labeled"}]],
 "Product of X and Y"]

Or using SetterBar

Panel[
 x = 0;
 y = 0;
 result = {};
 While[Not[IntegerQ[x] && 1 <= x <= 10], (x = Input[
     "What is your X value between 1 and 10?"])];
 While[Not[IntegerQ[y] && 5 <= y <= 15],
  (y = Input[
     "What is your Y value between 5 and 15?"])];
 result = x*y;
 If[result === {}, "",
  Manipulate[
   xx*yy,
   {{xx, x, "x"}, Range[10], ControlType -> SetterBar},
   {{yy, y, "y"}, Range[5, 15], ControlType -> SetterBar}]],
 "Product of X and Y"]

THIS IS AN EXTENDED COMMENT RATHER THAN AN ANSWER.

Instead of a Slider you should consider using a PopupMenu to choose amongst alternatives.

Define a list of countries

countries = CountryData[#, "Name"] & /@
   CountryData["SouthAmerica"];

Define a list of sectors (shortened here)

sectors = {
   "AGF: Agriculture/hunting/fishery",
   "CO12: Crude oil/mining",
   "MA1: Manufacturing/petroleum refining",
   "MA2: Manufacturing-other"};

Manipulate[
 {country, sector},
 {{country, 1, "Choose a country"},
  Thread[Range[Length[countries]] -> countries], ControlType -> PopupMenu},
 {{sector, 1, "Choose a sector for targeting"},
  Thread[Range[Length[sectors]] -> sectors], ControlType -> PopupMenu}]

enter image description here

Bob Hanlon
  • 157,611
  • 7
  • 77
  • 198
  • It is a very useful comment to improve the appearance of the Manipulate window. – Tugrul Temel Jul 25 '20 at 09:34
  • Thanks for this. It works the way I expected. Since I already have various standalone Manipulate codes involving heavy computations, I would like to stick to those instead of revising them with your proposal. It is a kind of path dependency problem. In your edited answer above, would it be possible to see the final product X*Y within the original Manipulate pane showing X and Y sliders for the user to continue choosing new values from the sliders, instead of running the code again? – Tugrul Temel Jul 27 '20 at 13:05
  • Thanks for your effort. It is what I was imagining. Referring to your earlier comment above, would it be possible to enter input X and Y values by using a Popupmenu? After the first question, aPopupmenu comes and the choice is made. Then, the second question comes with aPopupmenu. After both choices are made, theManipulatebecomes visible. Just like you did above, only difference is to use thePopup` menu. I hope I am not asking too much. Thank you very much. – Tugrul Temel Jul 27 '20 at 18:16
  • In the example using SetterBar change both instances of SetterBar to PopupMenu. However, both questions must be answered in the input fields before the Manipulate will appear. If you only want PopupMenus, then use a straightforward Manipulate as in the original extended comment. – Bob Hanlon Jul 27 '20 at 18:49
  • Thanks very much for this nice piece. – Tugrul Temel Jul 27 '20 at 19:35
2

Slider is best for adjust Reals. SetterBar is nice to Integer.

Like everything else a lot is a matter of taste. Some like it more individualizable.

Manipulate[
 Which[typeSelected == 1, Row[{"Product of x * y = ", x*y}],
  typeSelected == 2, Row[{"Product x * y =  ", x*y}], True,
  "No way ! Please report a bug"],
 Grid[{{Style["Selection of x and y", 10], SpanFromLeft}, {"Select",
    TabView[{{1,
       "x" -> Row[{"x= ",
          SetterBar[Dynamic[x, {x = #} &], Range[10]]}]}, {2,
       "y" -> Row[{"y= ",
          SetterBar[Dynamic[y, {y = #} &], Range[11] + 4],
          Dynamic[y]}]}}, Dynamic[typeSelected]]}}, Frame -> All,
  Spacings -> .5, FrameStyle -> Gray], {{x, 1}, None}, {{y, 1},
  None}, {{typeSelected, 1}, None},
 TrackedSymbols :> {x, y, typeSelected}]

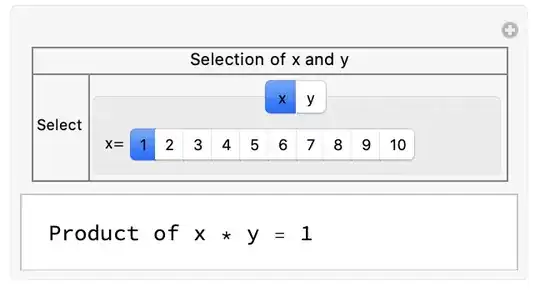

Manipulate with nice layout

Some nice too is:

{Slider2D[Dynamic[y], {{1, 5}, {10, 15}, {1, 1}},
  Appearance -> "Labeled"], Dynamic[y[[1]]*y[[2]]]}

Slider2D labeled

A more sophisticated example:

DynamicModule[{pt = {3, 7}}, {LocatorPane[Dynamic[pt],
   Graphics[Rectangle[],
    GridLines -> {{1, 2, 3, 4, 5, 5, 6, 7, 8, 9, 10}, {5, 6, 7, 8, 9,
       10, 11, 12, 13, 14}}, Frame -> True,
    PlotRange -> {{1, 10}, {5, 15}}]], Dynamic[Round@pt],
  Dynamic[Round@pt[[1]] Round@pt[[2]]]}]

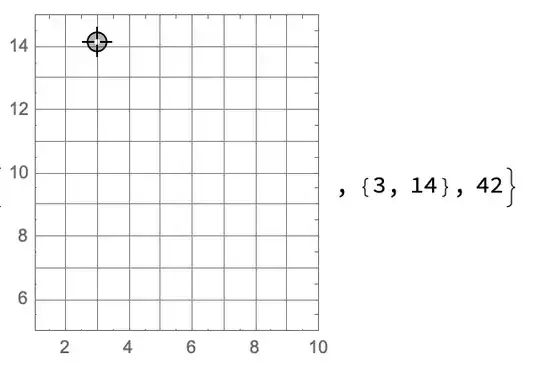

DynamicModule with a Plot background with GridLines

Somehow Wolfram Inc. is working on Manipulate still. Have a look at

ExperimentalExplore[]`
