4

I will need to make a video from the manual rotation of a 3D graphics. In order to do this, I will need to record the set of all view points that I made during rotation. There is method that we can use to get a single viewpoint, like discussed here, but can we find a way to use AppendTo or Sow and Reap to automatically store all the view points in a list?

Community
  • 1
saturasl
  • 1,429
  • 7
  • 18

1 Answers1

8

Here's a start:

(* Recording *)

vp = OptionValue[Graphics3D, ViewPoint];
vv = OptionValue[Graphics3D, ViewVertical];

vprec = list[];
vvrec = list[];
g = Graphics3D[Cuboid[],
  ViewPoint -> Dynamic[vp, (vp = #; vprec = list[vprec, #]) &],
  ViewVertical -> Dynamic[vv, (vv = #; vvrec = list[vvrec, #]) &]
  ]

I used a linked list for O(1) appending.

Now rotate the graphic slowly using the mouse. The view points will be recorded.

(* Playback *)

vpplay = List @@ Flatten[vprec, Infinity, list];
vvplay = List @@ Flatten[vvrec, Infinity, list];

ListAnimate@
 MapThread[
  Show[g, ViewPoint -> #1, ViewVertical -> #2] &, {vpplay, vvplay}]

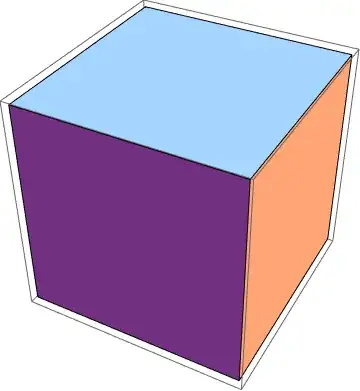

enter image description here

For a better result you also need to record the precise time of each step (AbsoluteTime[]), compute the correct frame durations and reproduce them using a custom ListAnimate. (When you export to GIF you can specify frame durations---check the docs on GIF exporting).

Szabolcs
  • 234,956
  • 30
  • 623
  • 1,263
  • Amazing! I will need to go deep into Dynamic... Thanks! – saturasl Apr 07 '13 at 03:59
  • Adopting Szabolcs's code, we can also write something like: vprec = {}; vvrec{}; then change the Dynamic[vp, (vp = #; vprec = list[vprec, #]) &] to Dynamic[vp, (vp = #; AppendTo[vprec, #]&]. This makes the code easier to read, but may decrease performance in complex situation. – saturasl Apr 07 '13 at 04:38
  • @saturasl To be precise, the time taken by AppendTo[list, ...] is proportional to the length of list. It'll slow down as the list gets big, but I haven't tried if it makes a difference in this application. It might not. – Szabolcs Apr 09 '13 at 21:34
