Lower limit of PointSize and Thickness

Question

I want to plot a very large dataset and therefore I need to use very small points or lines. It seems Thickness and Pointsize has a lower limit. Am I right?

po = RandomReal[{-1, 1}, {10000, 2}];
Graphics[{Thickness[0],Line[#] & /@ ({po[[1 ;; -2]], po[[2 ;;]]}\[Transpose])}]

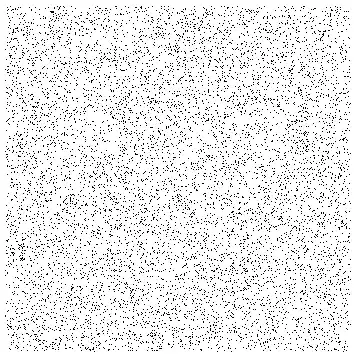

Graphics[{PointSize[0], Point[#] & /@ po}]

Note that AbsolutePointSize and AbsoluteThickness give similar results.

@Szabolcs Thanks, Therefore one needs to increase the size and play with the resolution? — Rasoul-Ghadimi, Sep 26 '20 at 08:07
This question on Mathematica's limits reminds me of this older question... — J. M.'s missing motivation, Sep 26 '20 at 10:26

Rasoul-Ghadimi · Accepted Answer · 2020-09-28T05:31:03.517

Based on @Szabolcs, It seems by increasing the size and change the resolution,

Magnify[
  Rasterize[
    Graphics[
      {Thickness[0],Line[#] & /@ ({po[[1 ;; -2]], po[[2 ;;]]}\[Transpose])},
       ImageSize -> 10000],
    ImageResolution -> 100], 0.1]

we can find desire fine structure,

I suggest Opacity also may be useful in some case,

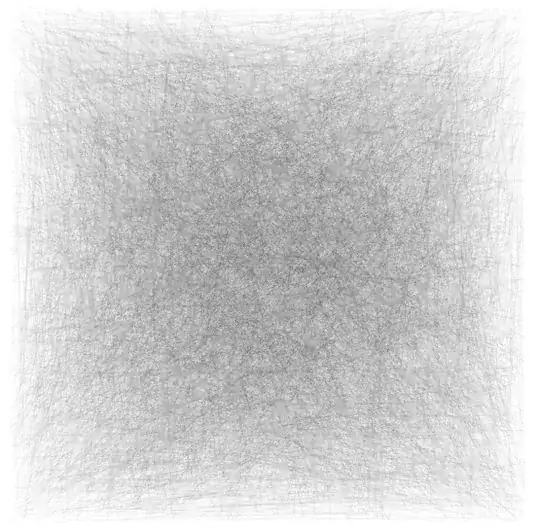

Graphics[{Opacity[0.0251], Thickness[0],Line[#] & /@ ({po[[1 ;; -2]], po[[2 ;;]]}\[Transpose])}]
