How to draw random colorfull domains in a plane?

Question

I'm trying to produce some graphics like the one shown below, with a few adjustable parameters to change the number and size of cells. The cells positions, sizes and colors should all be random (size between some min and max values):

The whole graphics should be shown inside a simple square, just for convenience for exportation.

My problem is that I really don't know how to start this, since there are many random vertices and straight lines dividing the domains. This is a kind of Mathematica programming problem that I'm unable to do by myself alone. :-(

I could start with a set of random points in a plane, using this code:

RandomPoints =
  Table[{RandomReal[{-10, 10}], RandomReal[{-10, 10}]}, {n, 1, 50}];
ListPlot[RandomPoints,
 Axes -> False,
 Frame -> True,
 FrameTicks -> None,
 AspectRatio -> 1
 ]

But then, how to draw lines between these points, without any crossing, so we could get nice looking cells?

So I need suggestions. I don't need anything fancy, just the simplest tricks that I could study and understand. I'm working on Mathematica 7, and I can't change the computer for a newer version of Mathematica yet.

See VoronoiMesh documentation: http://reference.wolfram.com/language/ref/VoronoiMesh.html and https://mathematica.stackexchange.com/questions/225510/drawing-a-realistic-voronoimesh. — JimB, Dec 02 '20 at 23:03
In version 7 you should have access to the [ComputationalGeometry`](https://reference.wolfram.com/language/ComputationalGeometry/guide/ComputationalGeometryPackage.html) package, which contained VoronoiDiagram and DiagramPlot. — MarcoB, Dec 02 '20 at 23:21
@MarcoB, I loaded the package. But then l’m still unable to draw some tesellation. I need an exemple. — Cham, Dec 02 '20 at 23:30
Perhaps you could make use of the free cloud version, which is much more capable than version 7. Most people no longer have access to version 7, so answers are likely to be based on guesswork about what works and what doesn't in v7. — Szabolcs, Dec 03 '20 at 11:31
essentially a duplicate of How can I draw such faceted triangle patterns?. — AccidentalFourierTransform, Dec 03 '20 at 16:17

kglr · Accepted Answer · 2020-12-03T14:14:06.840

7

ListDensityPlot

Normal[ListDensityPlot[RandomReal[10, {100, 3}],
  InterpolationOrder -> 0, ImageSize -> Large, Frame -> False]] /.
 Polygon[x_, ___] :> {Hue@RandomReal[], EdgeForm[Gray],Polygon[x]}

SeedRandom[1]
ListDensityPlot[RandomReal[10, {100, 3}], InterpolationOrder -> 0,
 ImageSize -> Large, Frame -> False, ColorFunction -> "Pastel"]

ListContourPlot

Normal[ListContourPlot[RandomReal[10, {100, 3}],
   InterpolationOrder -> 0, ImageSize -> Large, Frame -> False]] /.
 Polygon[x_, ___] :> {Hue@RandomReal[], EdgeForm[Gray], Polygon[x]}

An example with less randomness: randomly perturbed hexagons:

SeedRandom[1]
lst = Join @@ Array[{RandomReal[.3] + 3/2 #,
      RandomReal[] + Sqrt[3] #2 + Mod[#, 2] Sqrt[3]/2,
      RandomInteger[100]} &, {9, 9}];
Normal[ListContourPlot[lst, InterpolationOrder -> 0,
   ImageSize -> Large, Frame -> False]] /.
 Polygon[x_, ___] :> {Hue@RandomReal[], EdgeForm[Gray], Polygon[x]}

DensityPlot + Nearest

SeedRandom[1]
nearestFunction = First @* Nearest[Table[RandomInteger[10, 2] -> u, {u, 120}]];
ContourPlot[nearestFunction[{x, y}], {x, 0, 10}, {y, 0, 10},
 PlotPoints -> 90, Contours -> 50, ColorFunction -> "SolarColors",
 Frame -> False, ImageSize -> Large]

edited Dec 03 '20 at 14:14

answered Dec 03 '20 at 00:12

kglr

394,356
18
477
896

@Cham, Hue @ RandomReal[] should work in v7. – kglr Dec 03 '20 at 00:17
Well, I need some help for the colors in my solution. I would like to get rid of that part before @@@pts, which I really don't understand. – Cham Dec 03 '20 at 00:20
These colors are very agressive. Could you change them for something more "pastel-like", like the image I've shown in my question? – Cham Dec 03 '20 at 00:39
Also, your last example shows cells that all have 6 sides (a few have 5). It should be more random than that. – Cham Dec 03 '20 at 00:42
1

does ListDensityPlot[RandomReal[10, {100, 3}], InterpolationOrder -> 0, ImageSize -> Large, Frame -> False, ColorFunction -> "Pastel"] work in v7? – kglr Dec 03 '20 at 00:45
Yes, it works nicely! – Cham Dec 03 '20 at 00:47
That last solution of yours appears to be really great! It's much easier to understand to me, and it's now very easy to change the colors! I suggest that your present it as a third solution and I'll mark it. – Cham Dec 03 '20 at 00:50

cvgmt · Answer 2 · 2020-12-03T14:01:31.690

Thanks @Cham @kglr, the ListContourPlot is a good idea.

I think we can also does not change the original points in the plane,so we append the three coordinate with different number. Here we just use {1,2,...,n}

And we use ContourShading to add the colors.

The final result is just the same as VoronoiMesh!

SeedRandom[123];
pts = RandomReal[{-1, 1}, {50, 2}];
pts3 = MapIndexed[Join, pts];
ListContourPlot[pts3, InterpolationOrder -> 0,
 ContourShading -> Table[CMYKColor[RandomReal[{0, 1}, 3]], {i, 50}],
 BoundaryStyle -> White, Axes -> False, Frame -> False]
Show[%, ListPlot[pts, PlotStyle -> White]]

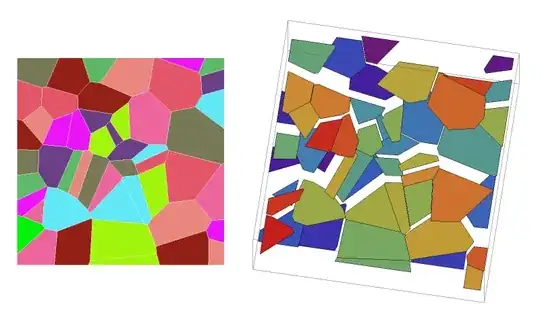

Compare the 2D and 3D versions.

ListPlot3D[pts3, InterpolationOrder -> 0, ColorFunction -> "Rainbow",
 Mesh -> None, Axes -> None, ViewPoint -> {0.54, -1.49, 2.98},
 ViewProjection -> "Orthographic"]

MapIndexed[Flatten[{##}] &, RandomReal[{-1, 1}, {50, 2}]] – cvgmt Dec 04 '20 at 00:49 — cvgmt, Dec 04 '20 at 00:49

Cham · Answer 3 · 2020-12-03T00:02:53.463

4

Well, I just found a nice trick, but it's not fully satisfying yet, since the cell color isn't random. How can I modify this code to get random colors in all cells?

pts = RandomReal[{-1, 1}, {50, 2}];
f[{x_, y_}] := x^2 - y^2 (* I don't understand the color part ! *)
ListContourPlot[Function[{x, y}, {x, y, f[{x, y}]}] @@@pts,
  Mesh -> All,
  MeshStyle -> Thick,
  InterpolationOrder -> 0,
  Axes -> False,
  Frame -> True,
  FrameTicks -> None,
  AspectRatio -> 1
 ]

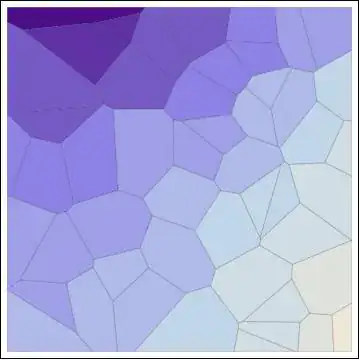

Preview:

edited Dec 03 '20 at 00:02

answered Dec 02 '20 at 23:50

Cham

4,093
21
36

I could replace the function x^2 - y^2 with something like RandomReal[{-1, 1}], which gives some random variations in colors, but it's always in shades of blue. I don't understand this part. – Cham Dec 02 '20 at 23:58
