Plot draws different curves in same colour even using Evaluate

Question

I would like the solutions of FindRoot (using NIntegrate under it) to be drawn in different colours by Plot, like in the last plot but without defining a separate function for each element in the solution list of FindRoot:

Clear[w, x, y, z, plt1, plt2, plt3, w1, w2]
w[x_?NumericQ] := {y, z} /.
   FindRoot[{x*Exp[y] - y,
     x*(Exp[z] - z)}, {{y, 0.45, 0, 1}, {z, 0.52, 0, 1}}];
plt1 = Plot[w[x], {x, 0, 1}, Evaluated -> True];
plt2 = Plot[Evaluate[w[x]], {x, 0, 1}];
w1[x_?NumericQ] := w[x][[1]]
w2[x_?NumericQ] := w[x][[2]]
plt3 = Plot[{w1[x], w2[x]}, {x, 0, 1}];
GraphicsRow[{plt1, plt2, plt3}]

Is there some simple plot option that does this? Evaluate as in this question does not seem to work for me.

Mathematica 11.3 on Ubuntu 18.04.

The second equation is x*(Exp[z] - z)==0 ? it seems that we can solve it directly. — cvgmt, Dec 22 '20 at 08:42
@b.gates thank you - Plot[{f[a][[1]], f[a][[2]]}, {a,0,1}] is simple enough. @cvgmt yes, but the point is to illustrate plotting FindRoot results or some other vector valued function. — Sander Heinsalu, Dec 22 '20 at 09:17

score 1 · Answer 1 · answered Dec 22 '20 at 13:48

There is an easy way to do this by making use of the function SetOptions. It allows one to modify the default options for any function. For the function Plot, its color is decided with the option PlotStyle. You can change this option to any other value globally using SetOptions.

SetOptions[Plot, PlotStyle :> RandomColor[]];

Note that I have used RuleDelayed instead of Rule. This is the key solution to your problem. When RuleDelayed is used, RandomColor[] is evaluated every time Plot is called, and thus the generated plot is of a different color. However, there are some rare cases when the subsequent output of RandomColor[] might be of a similar shade but I suppose you can figure out how to get around that.

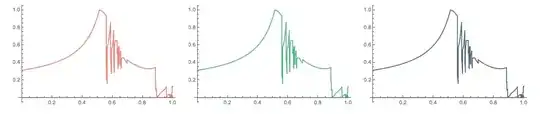

So, after evaluating the above code, here is the output to your code:

But the two curves are still the same colour in each of the 3 plots. — Sander Heinsalu, Dec 25 '20 at 07:33

score 1 · Accepted Answer · answered Dec 22 '20 at 14:56

Clear["Global`*"]

w[x_?NumericQ] := {y, z} /.
   FindRoot[{x*Exp[y] - y,
     x*(Exp[z] - z)}, {{y, 0.45, 0, 1}, {z, 0.52, 0, 1}}];

Evaluating w[x] with a symbolic input doesn't generate a List because w[x] is only defined for a numeric input.

Evaluate[w[x]]
(* w[x] *)

Since neither Evaluate nor the option Evaluated -> True has any effect on a symbolic w[x], there is only one PlotStyle

You don't need to define separate functions, but you do need to explicitly list both parts of w for when it has numeric values.

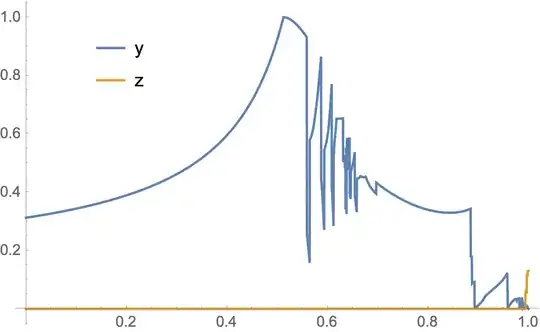

Plot[{w[x][[1]], w[x][[2]]}, {x, 0, 1},
  PlotLegends -> Placed[{"y", "z"}, {.2, .8}]] // Quiet
