How can I avoid animations getting "dancy"?

Question

I've done this animated GIF image. The trouble with it is that it gets "dancy" as you can see. For the organization of the items, I'm using the following code:

Which can be copied here:

TableForm[{
{TableForm[
{{
  Style[Length[c], "Title", 16], Style[Hino[[n]], "Title"]
  }}
, TableAlignments -> Center]},
ListPlot[Table[Count[c, A[[n]]], {n, 1, 26}], AxesOrigin -> {0, 0},
PlotRange -> {{0, 27}, {0, 155}}, ImageSize -> 800,
Filling -> {Axis},
 Epilog ->
Inset[Plot[9.02, {x, 1, 26.1}, ImageSize -> 800,
  PlotRange -> {{0, 27}, {0, 155}}, Axes -> False,
  PlotTheme -> "Monochrome"]], Axes -> False,
PlotStyle -> Directive[Black, PointSize[0.01]]]
}, TableAlignments -> Center]

What can I do to avoid the animation getting "dancy" like this?

why not get rid of TableForm and simply use ListPlot[...] with the option PlotLabel ->Row[{ Style[Length[c], "Title", 16], Style[Hino[[n]], "Title"] }, Spacer[5]] ? — kglr, Jan 02 '21 at 07:26
... and GridLines -> {None, {9.02}} instead of Epilog ->Inset[...]? — kglr, Jan 02 '21 at 07:27

kglr · Accepted Answer · 2021-01-02T08:09:34.143

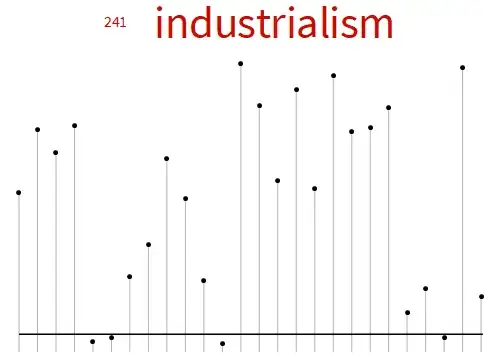

To replicate the dancy plot with fake data:

hino = RandomWord["Noun", 50];
lpdata = RandomInteger[150, 26];
frames = Table[TableForm[{{TableForm[{{Style[RandomInteger[500], "Title", 16],
         Style[hino[[i]], "Title"]}}, TableAlignments -> Center]},
    ListPlot[lpdata, AxesOrigin -> {0, 0},
     PlotRange -> {{0, 27}, {0, 155}}, ImageSize -> 500,
     Filling -> {Axis},
     Epilog -> Inset[Plot[9.02, {x, 1, 26.1}, ImageSize -> 500,
        PlotRange -> {{0, 27}, {0, 155}}, Axes -> False,
        PlotTheme -> "Monochrome"]], Axes -> False,
     PlotStyle -> Directive[Black, PointSize[0.01]]]},
   TableAlignments -> Center], {i, 50}];
Export["dancingplot.gif", frames, AnimationRepetitions -> Infinity]

If you have to use TableForm you can wrap the inner TableForm with Pane with a specific ImageSize so that the vertical size of the cell does not change depending on whether the title word has characters with ascenders/descenders. That is, use

Pane[TableForm[{{Style[RandomInteger[500], "Title", 16],
    Style[hino[[i]], "Title"]}}, TableAlignments -> Center],
 ImageSize -> {300, 50}, Alignment -> Center]

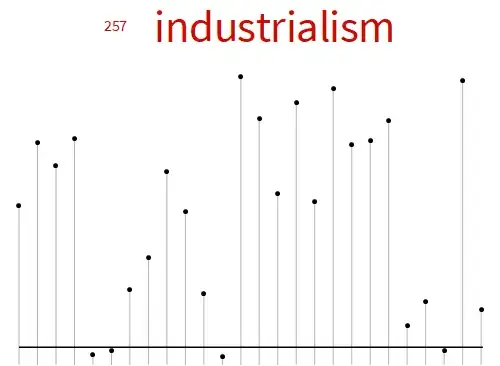

to get

If you don't have to use TableForm, then you can simply use ListPlot with the options PlotLabel and GridLines:

frames3 = Table[ListPlot[lpdata, AxesOrigin -> {0, 0},
    PlotRange -> {{0, 27}, {0, 155}}, ImageSize -> 500,
    Filling -> {Axis},
    PlotLabel -> Pane[Row[{Style[RandomInteger[500], "Title", 16],
        Style[hino[[i]], "Title"]}, Spacer[15]],
      ImageSize -> {500, 100}, Alignment -> {Center, Center}],
    GridLines -> {None, {{9.02, Directive[Thick, Black]}}},
    Axes -> False, PlotStyle -> Directive[Black, PointSize[0.01]]], {i, 50}];
Export["dancingplot3.gif", frames3, AnimationRepetitions -> Infinity]
