3D plot of a dataset

Question

I have this dataset

dataset1 = {{0, 10, 1.8988}, {0.234, 10, 1.546}, {0.5, 10,
           1.98765}, {0.89, 10, 2.12377}, {1.01, 10, 2.345}, {1.345, 10,
           2.789}, {1.908, 10, 3.123}};
 dataset2={{0.12, 8, 0.3456}, {0.16, 8, 0.567}, {0.22, 8, 0.8765}, {0.367, 8, 0.9877}, {0.9876, 8, 1.234}, {1.6889, 8, 1.7889}, {1, 87655, 8, 2.123}};
 dataset3={{0.267, 10, 2.56}, {0.6778, 10, 3.098}, {0.945, 10, 4.89}, {1.345, 10, 5.123}, {1.987, 10, 5.987}, {2.345, 10, 5.899}, {3.123, 10, 7.345}};
dataset4={{0.456, 13, 3.123}, {0.7643, 13, 4.1234}, {1.788, 13, 5.654}, {2.122, 13, 6.123}, {3.123, 13, 6.98}, {4.123, 13, 7.123}, {5.123, 13, 8.123}};

and I wrote this code to display it.

ListPointPlot3D[{dataset},
  PlotStyle -> {Thick, Red},
  Axes -> True,
  Ticks -> {{0, 0.5, 1.0, 1.5}, {14}, {0.9, 2, 2.7}},
  ClipPlanesStyle -> {Opacity[6, Gray]},
  AxesLabel -> {"Concentration", "Carbon atoms", "Dipole moment"},
  ImageSize -> 500,
  FaceGrids -> None,
  ViewPoint -> {1.5, 14, 3},
  FillingStyle -> LightBlue,
  Boxed -> True ,
  BoxStyle -> {Hue[0.54, 0.46, 0.89], Thickness[0.003]},
  BaseStyle -> Gray,
  AxesStyle -> Thick]

The code does not give a proper 3D plot.

I want to construct a 3D plot like this one, but I was unable to do it.

Answer 1

Presuming you have data for nuclides other than ${}^{10}C$, then using ListPointPlot3D makes sense and Alexei Boulbitch's suggestion will make your data points show up. However, I would suggest some further changes to your code. I would rewrite like this:

ListPointPlot3D[dataset,
  PlotStyle -> {Red, AbsolutePointSize[8]},
  Ticks -> {{0, 0.5, 1.0, 1.5}, {14}, {0.9, 2, 2.7}},
  AxesLabel -> {"Concentration", "Carbon nuclide", "Dipole moment"},
  ImageSize -> 500,
  ViewPoint -> {1.5, 14, 3},
  Filling -> Axis,
  FillingStyle -> Lighter[Blue, .6],
  Boxed -> True,
  BoxStyle -> {Hue[0.54, 0.46, 0.89], Thickness[0.003]},
  BaseStyle -> Gray,
  AxesStyle -> Thick]

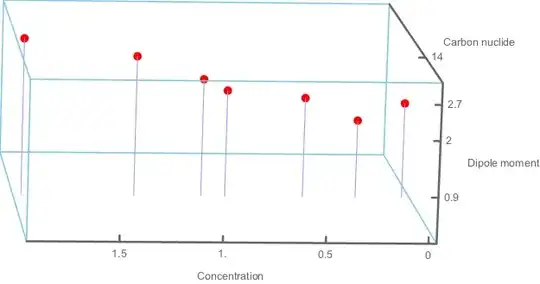

which gives

I've removed some options that were not needed and added the option Filling -> Axis which is needed.

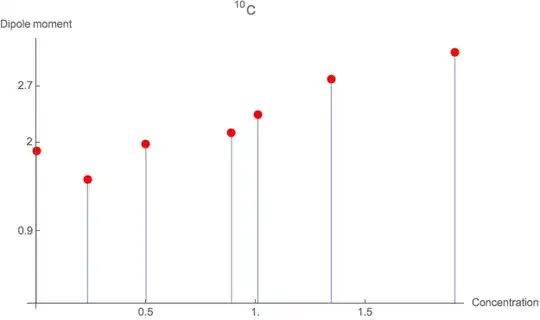

However, if ${}^{10}C$ is only nuclide you have data for, it would better to make a 2D plot. Like so:

ListPlot[dataset[[All, {1, 3}]],
  PlotStyle -> {Red, AbsolutePointSize[8]},
  Ticks -> {{0, 0.5, 1.0, 1.5}, {0.9, 2, 2.7}},
  PlotLabel -> Row[{Superscript["", 10], "C"}],
  AxesLabel -> {"Concentration", "Dipole moment"},
  ImageSize -> 500,
  Filling -> Axis,
  FillingStyle -> Lighter[Blue, .6],
  BaseStyle -> Gray]
