Efficient sinc interpolation of a list

Question

I'm looking for an efficient way to construct a sinc interpolation i.e. an interpolating function of a list of numbers in the form of a Fourier series with a chosen maximum frequency. The input list is supposed to be an equidistant sample of some real smooth function (e.g. a function with a finite-support Fourier transform) and the interpolation should be a continuous function that is a sum of harmonic functions (cosine and sine functions) such that their coefficients are equal to the Fourier coefficients of the list for all frequencies up to the chosen max frequency, (see Wikipedia: Whittaker–Shannon interpolation formula). Increasing the max frequency beyond the band-limit of the original function should give a perfect reconstruction of it. I'd guess there is a predefined Mathematica function doing that but I couldn't find it.

One way would be to apply Interpolation on the list, then NFourierSeries on the resulting InterpolationFunction (choosing the desired max frequency), but this is obviously very inefficient. LowpassFilter should be doing something similar but the output is a list, not a function. One option for an efficient solution that I'm trying to implement is to compute the Fourier coefficients from the list using Fourier, construct a function that is a list of harmonic functions with the right frequencies (e.g. Table[Sin[2 Pi n #/T], {n, nmax}] & for sines) and then Dot-multiply the two lists. I found this excellent post that computes the correct factors: Numerical Fourier transform of a complicated function

Answer 1

A Sinc interpolation can be done along the same same idea as a Lagrange interpolation: Assuming we have equally spaced data points, we seek a function ipol that is 1 at x==0 and zero at every other data argument. The sum of ipol[x-x[[i]]] dat[[i]] over i gives then an interpolation function. By this the highest frequency is given by half the sample rate.

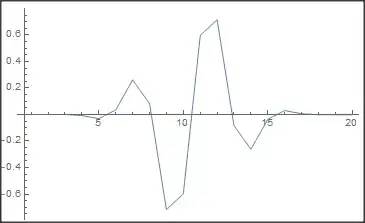

To demonstrate a Sinc interpolation, we first need some arbitrary test data, assuming for simplicity, that the x values are 1,2,..:

n = 20;
dat = Table[Exp[-x^2] Sin[ 4 x], {x, -Pi, Pi, 2 Pi/n}];
ListLinePlot[dat, PlotRange -> All]

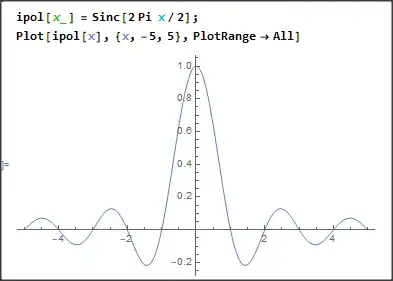

Then we define a scaled Sinc that is 1 at x==0 and zero at every other integer value:

ipol[x_] = Sinc[2 Pi  x/2];
Plot[ipol[x], {x, -5, 5}, PlotRange -> All]

Now, we place such an function at every data point and multiply it with the value of the data point. Then we plot it together with the original data points :

fun[x_] = Table[ipol[x - y], {y, Length[dat]}].dat;
Plot[fun[x], {x, 0, 20}, PlotRange -> All,
 Epilog -> Point[Transpose@{Range[n + 1], dat}]]

Answer 2

If we want to use FFT to get an expansion in circular functions we can proceed as follows:

FFT can be look at as a base change with the new base functions: Exp[2Pi I x f]. This is not too simple, because the FFT returns the coefficients like: First DC component, then coefficients of functions with increasing frequencies and pos. exponents. Up to the highest frequency (there may be one or two). Then down again in frequency with negative exponents.

Again we need same test data:

n = 20;
dat = Table[Exp[-x^2] Sin[4 x], {x, -Pi, Pi, 2 Pi/(n - 1)}];
ListLinePlot[dat, PlotRange -> All]

Then we calculate the FFT and if we want to smooth, truncate it:

fft = Fourier[dat];
smooth = 0;
If[smooth > 0,
  If[EvenQ[n], fft[[2 + n/2 - smooth ;; n/2 + smooth]] = 0,
   fft[[(n + 1)/2 - smooth ;; (n + 1)/2 + smooth]] = 0]];

We now have the coefficients of the new base and can assemble the searched for function and plot the result:

(*fourier synthese*)
tab = Table[
   Exp[ -2 Pi I If[i < (n + 1)/2, (i - 1), -(n + 1 - i)] (x - 1)/
      n], {i, n}] ;
fun[x_] = (tab.fft +
     If[EvenQ[n],
      fft[[1 + n/2]] (E^(-I \[Pi] (-1 + x)) - E^(I \[Pi] (-1 + x)))/2,
       0])/Sqrt[n];
Plot[fun[x], {x, 0, n}, PlotRange -> All,
 Epilog -> Point[Transpose[{Range[n], dat}]]]

No truncation:

With truncation (smooth=4):

As you see, truncation is not without drawbacks, it increases the wiggles. This is because use a rectangular window in the frequency domain. To improve, we would use a smoother window like Hamming, von Hann, ...

The function fun is now in exponential form. If you want it expanded in sin and cos:

fun[x_] = fun[x] // ComplexExpand // Chop
